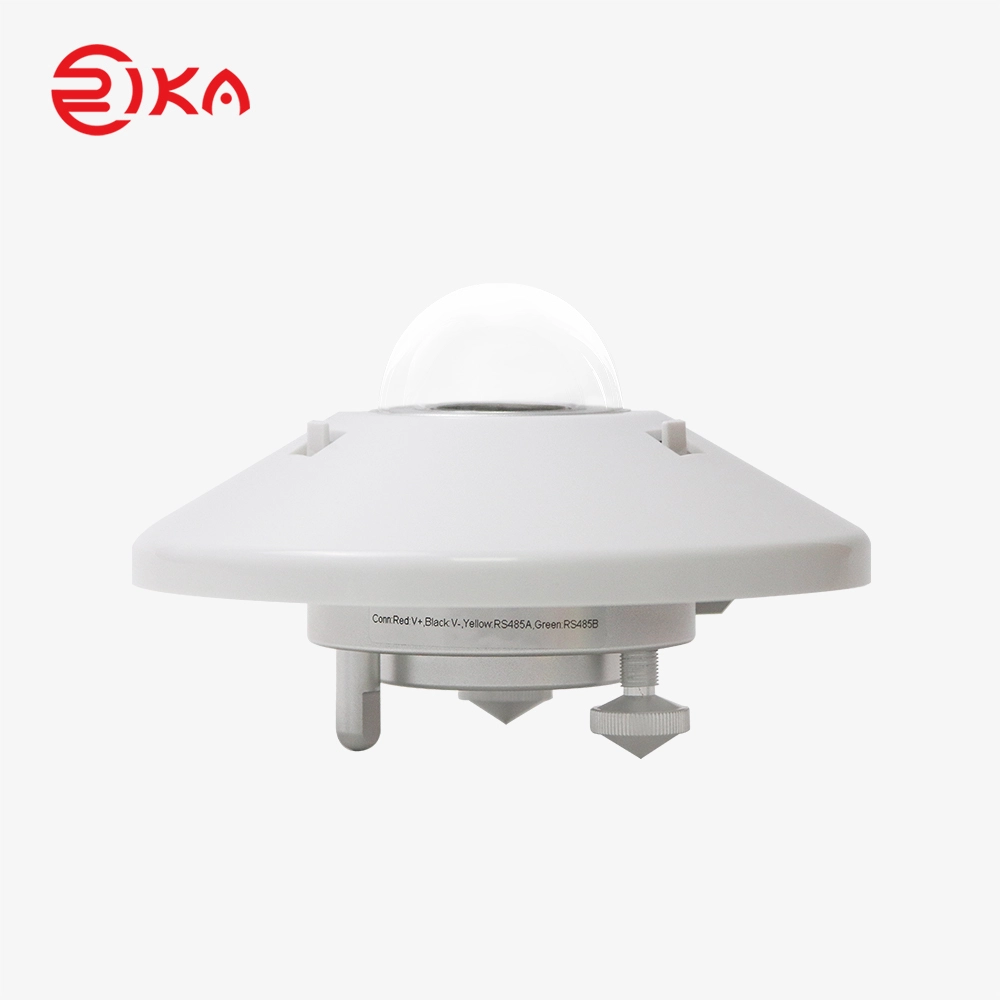

RK200-03 Class A Pyranometer
PRODUCT DESCRIPTION
rk200-03 Pyranometer is produced based on the thermopile principle;sensing elements are made bywound plated thermopiles with muttsple contacts.Its surface is coated by black coating with highabsorption rate.Hot contacts on the sensors surface,while the cold junction is located within the body,temperature difference between the hot and cold junction generates an electromotive force,thethermoelectric effect is proportional to the solar radiation.In order to reduce the ambient temperatureeffect,temperature compensation circuit designed here to minmize its impact on the product’sperformance.The RK200-03 series pyranometer has been certified by the National MeteorologicalAdministration and the National Institute of Metrology(NIM).
The pyranometer radiation sensor is a monitoring device designed to accurately measure solar radiation levels. As an essential component for meteorological and climatological research, this sensor plays a pivotal role in analyzing the energy balance of our planet. Equipped with advanced technology, the pyranometer sensor precisely quantifies the total hemispherical solar irradiance by capturing both direct and diffuse radiation. Its robust construction ensures long-term durability even under harsh environmental conditions, making it suitable for various applications such as weather stations, solar energy installations, and agricultural monitoring systems. With its high sensitivity and low thermal offset, this radiation sensor provides reliable measurements that are vital for understanding climate patterns and optimizing renewable energy sources. The pyranometer radiation sensor is indeed an indispensable tool serving scientists, researchers, and engineers alike in their pursuit of sustainable solutions while unraveling the mysteries of our ever-changing world.
SPECIFICATIONS
Item | Technical Specification | |
ISO9060:2018 | Class A | |
ISO9060:1990 | Secondary standard | |
Spectral range | 280~3000 nm | |
Output | 0-20mV | 4-20mA,RS485 |
Supply | / | 12-24VDC |
Range | 0-4000W/m2 | |
Sensitivity | 7-14μV/(W/m²) | |
Non-linearity | <±0.2%(100~1000W/m²) | |
Response time | ≤5s(95%) | |
Zero drift( temperature drift:5k/h) | <±2W/m² | |
Stability | <±0.8%/year | |
Directional response | ±10W/m² | |
Temperature effect | <1%(-10~40℃) | |
Operating temperature | -40℃-+80℃ | |
Recalibration interval | 2 years | |
Calibration basis | ISO9847 | |
Weight(unpacked) | 0.8kg | |
Dimension | 154*101.5mm | |
Transmission module | 4-20mA: external,RS485:built-in | |
Desiccant | Built-in | |
Installation bracket(optional) | Horizontal bracket or adjustable | |
Ingress protection | IP67 | |
Storage condition | 10℃-60℃@20%-90%RH | |
RK200-03 Class B Pyranometer
PRODUCT DESCRIPTION
The rk200-03 Pyranometer is produced based thermopile principle; sensing elements are made by winding – plated thermopiles with multi contacts.Its surface is coated by black coating with high absorption rate. Hot contacts on the sensors surface, while the cold junction is located within the body,temperature difference between the hot and cold junction generates electromotive force, the thermoelectric effect is proportional to the solar radiation. In order to reduce the ambient temperature effect ,temperature compensation circuit designed here to reduce the effects to products properties.
The pyranometer radiation sensor is a monitoring device designed to accurately measure solar radiation levels. As an essential component for meteorological and climatological research, this sensor plays a pivotal role in analyzing the energy balance of our planet. Equipped with advanced technology, the pyranometer sensor precisely quantifies the total hemispherical solar irradiance by capturing both direct and diffuse radiation. Its robust construction ensures long-term durability even under harsh environmental conditions, making it suitable for various applications such as weather stations, solar energy installations, and agricultural monitoring systems. With its high sensitivity and low thermal offset, this radiation sensor provides reliable measurements that are vital for understanding climate patterns and optimizing renewable energy sources. The pyranometer radiation sensor is indeed an indispensable tool serving scientists, researchers, and engineers alike in their pursuit of sustainable solutions while unraveling the mysteries of our ever-changing world.
SPECIFICATIONS
Item | Technical Specification | |
ISO9060:2018 | Class B | |
ISO9060:1990 | First class | |
Spectral range | 280~3000 nm | |
Output | 0-20mV | 4-20mA,RS485 |
Supply | / | 12-24VDC |
Range | 0-2000W/m2 | |
Sensitivity | 7-14μV/(W/m²) | |
Non-linearity | ±1%(100~1000W/m²) | |
Response time | ≤30s(95%) | |
Zero drift( temperature drift:5k/h) | <±4W/m² | |
Stability | <±1.5%/year | |
Directional response | ±20W/m² | |
Temperature effect | <4%(-10~40℃) | |
Operating temperature | -40℃-+80℃ | |
Recalibration interval | 2 years | |
Calibration basis | ISO9847 | |
Weight(unpacked) | 0.8kg | |
Dimension | 154*101.5mm | |
Transmission module | 4-20mA: external,RS485:built-in | |
Desiccant | Built-in | |
Installation bracket(optional) | Horizontal bracket or adjustable | |
Ingress protection | IP67 | |
Storage condition | 10℃-60℃@20%-90%RH | |

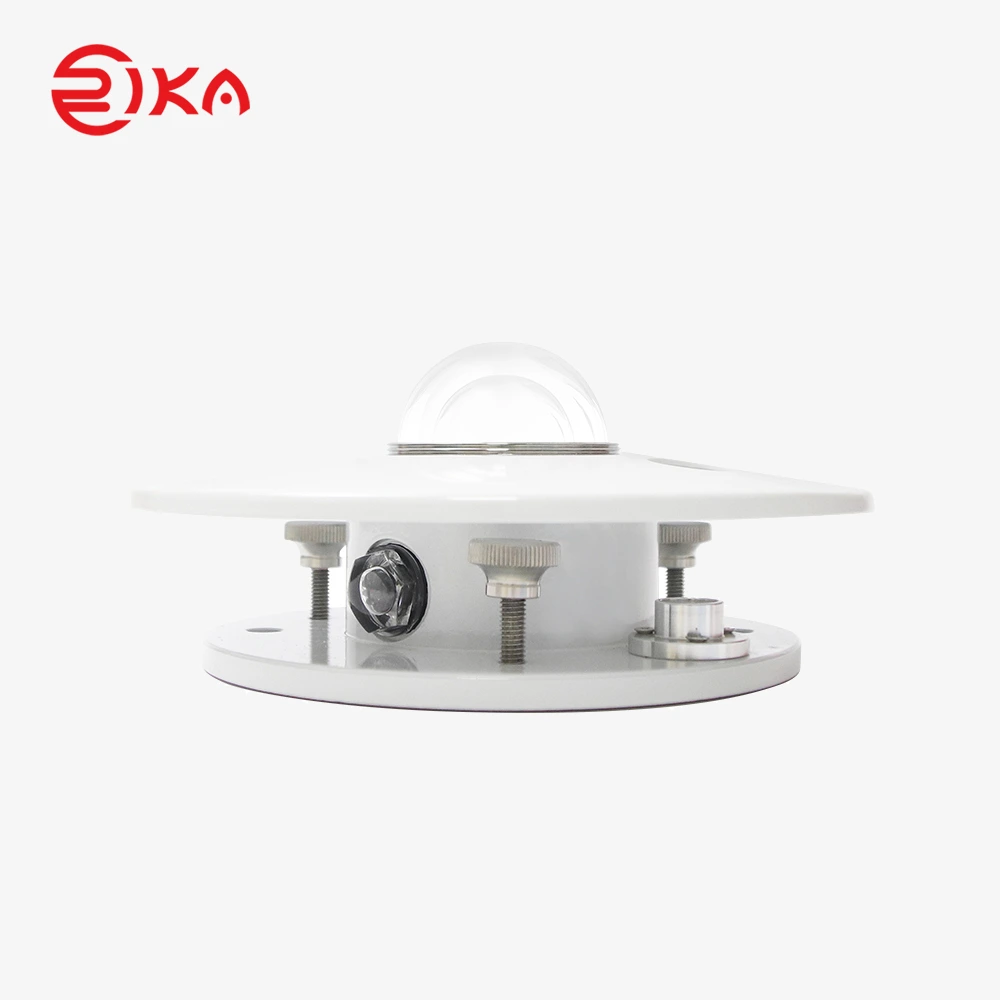

RK200-03 Class C Solar Pyranometer Radiation Sensor
PRODUCT DESCRIPTION
The rk200-03 Pyranometer is produced based thermopile principle; sensing elements are made by winding – plated thermopiles with multi contacts.Its surface is coated by black coating with high absorption rate. Hot contacts on the sensors surface, while the cold junction is located within the body,temperature difference between the hot and cold junction generates electromotive force, the thermoelectric effect is proportional to the solar radiation. In order to reduce the ambient temperature effect ,temperature compensation circuit designed here to reduce the effects to products properties.
The pyranometer radiation sensor is a monitoring device designed to accurately measure solar radiation levels. As an essential component for meteorological and climatological research, this sensor plays a pivotal role in analyzing the energy balance of our planet. Equipped with advanced technology, the pyranometer sensor precisely quantifies the total hemispherical solar irradiance by capturing both direct and diffuse radiation. Its robust construction ensures long-term durability even under harsh environmental conditions, making it suitable for various applications such as weather stations, solar energy installations, and agricultural monitoring systems. With its high sensitivity and low thermal offset, this radiation sensor provides reliable measurements that are vital for understanding climate patterns and optimizing renewable energy sources. The pyranometer radiation sensor is indeed an indispensable tool serving scientists, researchers, and engineers alike in their pursuit of sustainable solutions while unraveling the mysteries of our ever-changing world.
SPECIFICATIONS
Item | Technical Specification | |
ISO9060:2018 | Class C | |
ISO9060:1990 | Second class | |
Spectral range | 300-3200nm | |
Output | 0-20mV | 4-20mA,0-5V, RS485,SDI-12 |
Supply | / | 12-24VDC,5VDC |
Range | 0-2000W/m² | |
Sensitivity | 7-14μV/(W/m²) | |
Non-linearity | <±3% | |
Response time | ≤60s(95%) | |
Zero drift( temperature drift:5k/h) | ±8W/m² | |
Stability | <±3%/year | |
Directional response | ≤±30W/m² | |
Temperature effect | <8%(-10℃-+40℃) | |
Operating temperature | -40℃-+80℃ | |
Recalibration interval | 2 years | |
Calibration basis | ISO9847 | |
Weight(unpacked) | 1.2kg | |
Dimension | ø185*120mm | |
Transmission module | RS485/SDI-12:built-in/4-20mA/0-5V:external | |
Desiccant | Built-in | |
Installation bracket(optional) | Horizontal bracket or adjustable | |
Ingress protection | IP67 | |
Storage condition | 10℃-60℃@20%-90%RH | |
RK200-04 Solar Radiation Sensor Solar Irradiance Sensor
PRODUCT DESCRIPTION
RK200-04 Solar Radiation Sensor is designed on basis of silicon-cell principle. It is mainly used for measuring solar radiation within 300-1100nm wavelength. If the sensing face is downwards, it can test the reflected radiation and solar radiation on the incident to the inclined plane. If shad is added, it can test the scattered radiation. Solar radiation sensor is widely used to monitor the solar radiation in meteorology, solar energy, agriculture, construction materials aging and atmospheric pollution and etc.
SPECIFICATIONS
Parameters of the solar sensor RK200-04
Item | SPECIFICATIONS |
Spectral range | 300-1100nm |
Supply | 5V,12-24VDC |
Range | 0-1500W/2 |
Resolution | 1W/m2 |
Output | 0-2.5V,0-5V,4-20mA,RS485,SDI-12 |
Power consumption | 0.2W |
Response time | ≤500nS(95%) |
Cosine correction | ≤±10%(Solar elevation angle=10°) |
Non-linear | ≤±2% |
Temperature effect | ±0.08%/℃ |
Stability | ≤±2%/year |
Operating temperature | -40℃-+80℃ |
Ingress protection | IP67 |
Weight(unpacked) | 420g |
Shell material | Aluminum alloy |
Storage condition | 10℃-60℃@20%-90%RH |

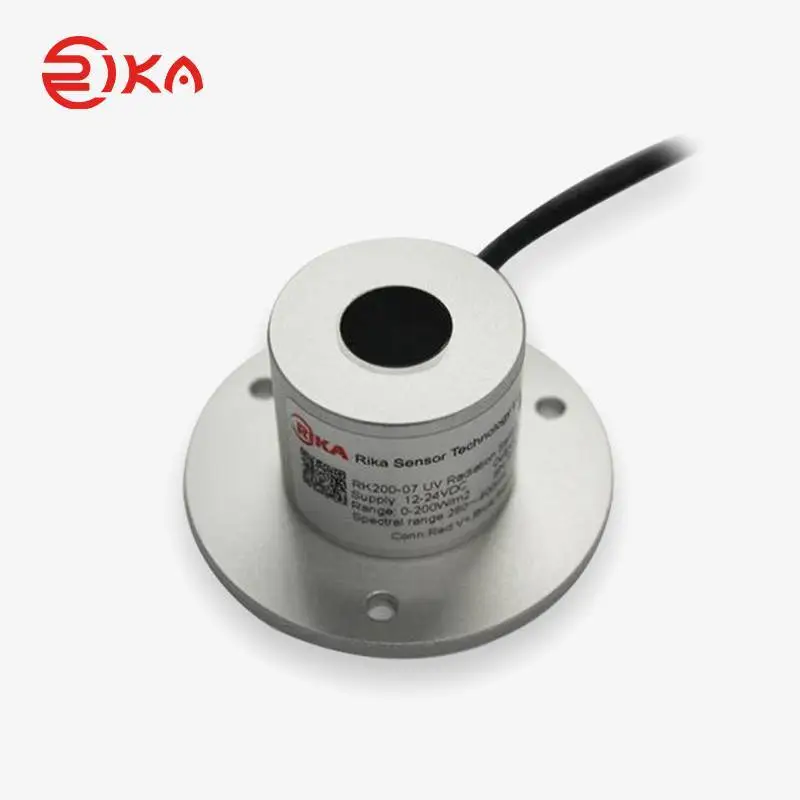

RK200-07 UV Radiation Sensor Pyranometer
PRODUCT DESCRIPTION
RK200-07 UV Radiation Sensor is a precision instrument used to measure the atmosphere of the sun’s ultraviolet radiation (UVA & UVB),supporting the product related information acquisition instrument use can provide public concern: the UV index, UV erythema measurement, on the health effects of the UV and UV special biology and chemistry, highly meteorology, industry, construction, medical attention, are widely used in the exposure caused erythema dose, integrated environment ecological effect, the study of climate change and ultraviolet radiation monitoring and forecast.
• High Precision Measurement:The UV sensor utilizes advanced photodiode technology to deliver precise and reliable measurements of UV radiation levels, ensuring accuracy in data collection and analysis;
• Wide Dynamic Range: With a broad dynamic range, this sensor can capture UV radiation levels across various intensities, from low UV index values to high solar radiation levels, making it suitable for diverse applications.
• Real-Time Monitoring: The sensor provides real-time monitoring of UV radiation levels, allowing users to track changes in UV exposure throughout the day and take necessary precautions to minimize risks associated with excessive UV exposure.
SPECIFICATIONS
Item | SPECIFICATIONS |
Spectral range | 280～400nm |
Supply | 5V,12-24VDC |
Range | 0-200W/m2, 0-200uW/cm2(only for 0-2V output), 0-15UV index |
Output | 0-2V,4-20mA(2 wires),0-5V,RS485 |
Accuracy | ±5% rdg |
Response time | ≤1s |
Cosine correction | ≤±4%(Solar elevation angle=30°) |
Non-linear | ≤±3% |
Temperature effect | ±0.08%/℃ |
Stability | ≤±2%/year |
Operating Temperature | -40℃-+85℃ |
Ingress Protection | IP65 |
Weight(unpacked) | 150g |
Shell material | Aluminum alloy |
Storage Condition | 10℃-60℃@20%-90%RH |

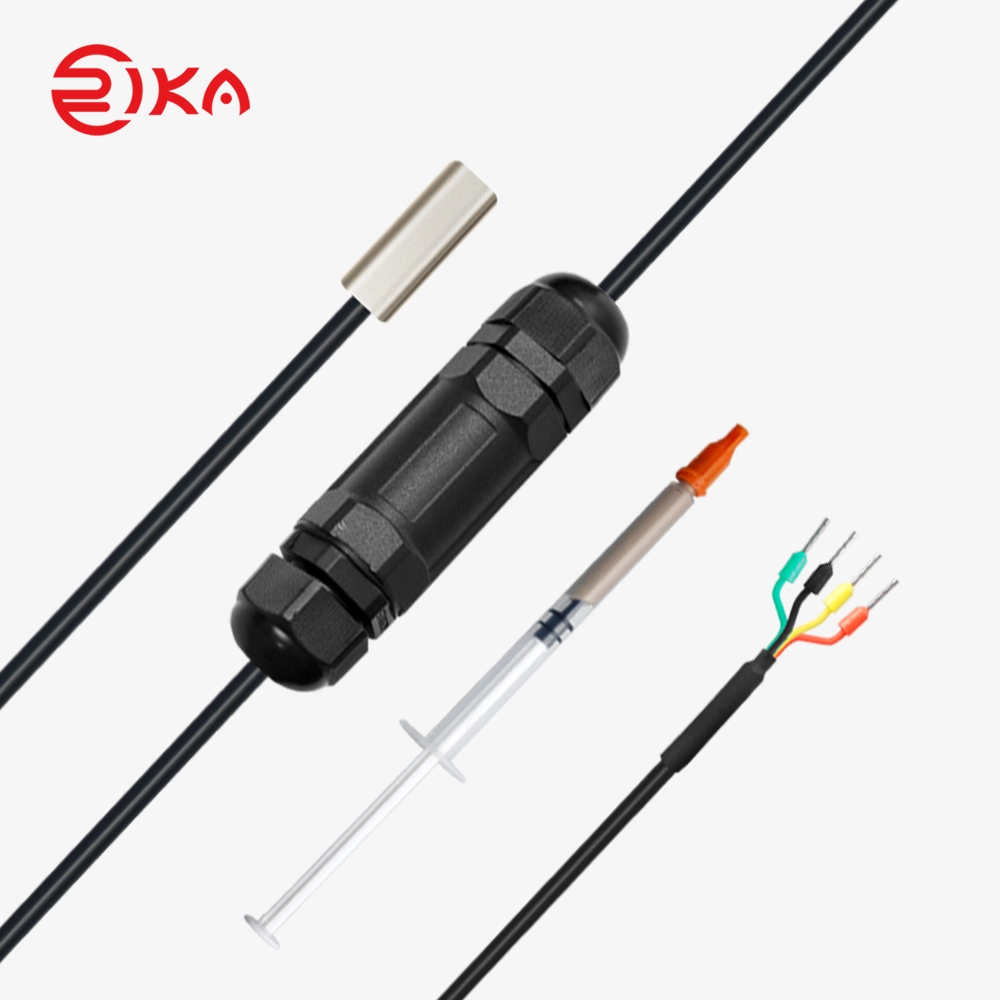

RK220-01 Paste Type Temperature Sensor for Solar PV Module
PRODUCT DESCRIPTION
RK220-01 Paste Type Temperature Sensor adopts a high-precision resistance(PT100 Class A,complies with IEC 751) as the sensing component. It features high accuracy and excellent stability . The signal conversion module can convert temperature to corresponding voltage, current or RS485 optionally.
RK220-01 past type temperature sensor is compact, easy-to-install, with good linearity, strong load capacity, long transmission distance and superior anti- interference performence. RK220-01 complies
with the regulations of IEC 61724 on PV module temperature sensors
SPECIFICATIONS
Item | Specifications | |||
Range | -50-+100℃, -20-+50℃ | |||
Supply Voltage | 5VDC,12-24VDC | / | ||
Accuracy | ±0.5℃ | ±0.3℃ | ||
Output | 4-20mA | 0-5V | RS485 | PT100/PT1000 3-wires |
Load Capacity | ≤250Ω | ≥1K | / | / |
Power consumption | ≤8mA, 0.1W(12V) | |||
Ingress Protection | IP67 | |||
Operating Temperature | Probe: -50℃-+120℃ | |||
Sensor | PT100 Class A | |||
Probe | 304SS | |||
Weight(unpacked) | Probe: 85g | |||
Transmitter module dimension | Ф27*103mm | |||
Storage Condition | 10℃-60℃@20%-90%RH | |||
Thermal grease | Attached | |||
Aluminum tape | Attached | |||

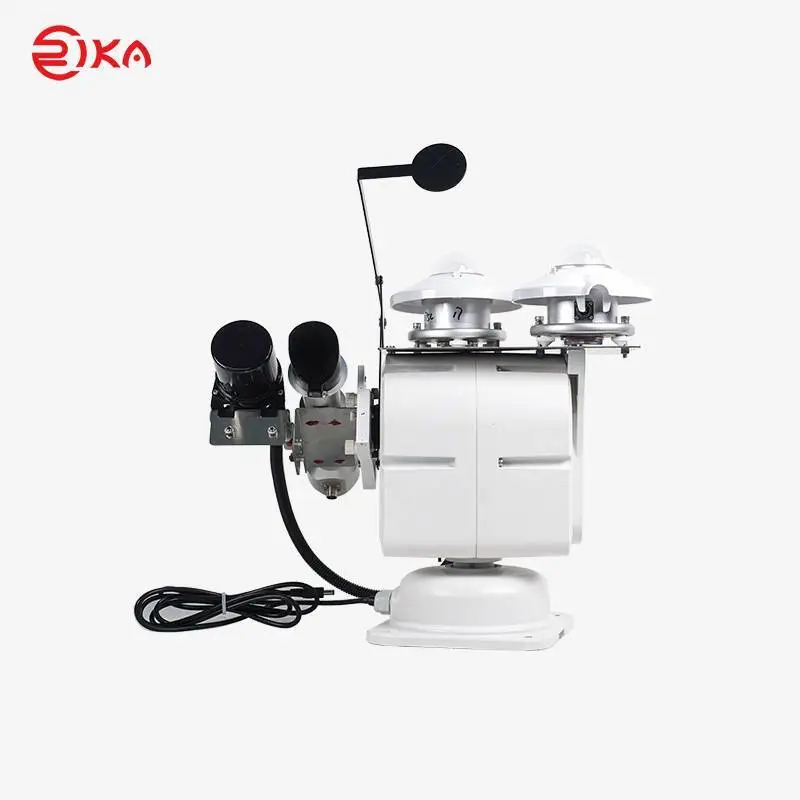

RK200-08 Automatic tracking solar radiation measurement system
PRODUCT DESCRIPTION
RK200-08 Automatic tracking solar radiation measurement system is an unattended solar radiationmonitoring system, which can accurately observe direct, scattered and total solar radiation at the same time.lt use the Angle sensor and the four quadrant balance light sensor technology, automatic tracking the sun, thesun rays remain vertical to the radiation sensor within the cone of light.Track motion trajectory tracking systemaccording to the sun and light way, the combination of 2D automatic control, realize a full automatic real-timetracking of the sun.Products from the base, bench, screw, gear box, motor，microcomputer controller,directradiation sensor,scattered and total solar radiation, power and other parts.
SPECIFICATIONS
Item | SPECIFICATIONS | |||
Direct radiation | Scattered radiation | Total solar radiation(optional) | ||
Spectral range | 280-3000nm | 400-1100nm | 300-3200nm | |
Range | 0-2000W/m2 | |||
Output | 0-20mV or Customized(RS485…) | |||
Sensitivity | 7-14μV*W-1*m2 | |||
Internal resistance | Approx. 100Ω | Approx. 350Ω | Approx. 350Ω | |
Non-linearity | <±2% | <±2% | <±2% | |
Response time | ≤25s(99%) | ≤20s(99%) | ≤20s(99%) | |
Stability | ±1%/year | ±2%/year | ±2%/year | |
Temperature effect | ±1%(-10℃-+40℃) | |||
Operating temperature | -40℃-+70℃,0-100%RH | |||
Tracking system | Motor | Stepper motor | ||
| Tracking accuracy | <±0.3°(4h) | |||
| Torque | 12Nm | |||
| Power consumption | 3W | |||
| Tracking way | Automatic tracking the two-dimensional Angle | |||
| Supply | DC12V, AC220V or other | |||
| Speed | 50°/s | |||
| Horizontal Angle(azimuth) | 0-200° | |||
| Vertical Angle(declination) | -15-+90° | |||
Ingress Protection | IP65 | |||
| Operating temperature | -40℃-+70℃,0-100%RHw | |||
| Communication interface | RS232,RS485,USB | |||
| Storage Condition | 10℃-60℃@20%-90%RH | |||
| Weight(unpacked) | 6.5kg(include sensors) | |||

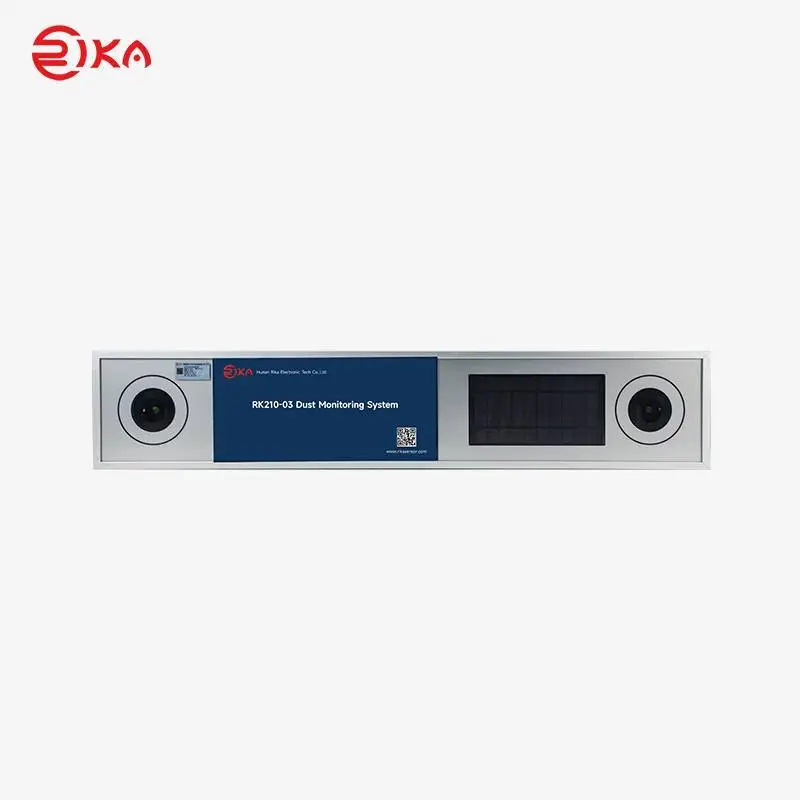

RK210-03 Dust Monitoring System for Solar Panel-Soiling Monitoring System
PRODUCT DESCRIPTION
The soiling on the glass of solar modules is the main factor affecting the power generation efficiency of PV power plants. The soiling monitoring device using blue light pollutant measurement technology can be easily installed in the PV array and integrated into the power plant management system. The device is installed on the frame of the PV panel and calculates the reduction in sunlight reaching the solar modules by measuring the proportion of pollutants (SR).
This allows operation and maintenance personnel to know when pollutants reach the critical point and decide whether it is necessary to start the cleaning process. The product does not require maintenance, only cleaning surrounding components in the same way. Due to the varying pollution rates of large photovoltaic power plants throughout the entire park, the IEC 61724-1 standard requires multi-point measurement. Compared to traditional products, it has much lower procurement, installation, and maintenance costs, making it more economical.
SPECIFICATIONS
Item | Technical Specification | Remark |
Technical principles | Continuous multi frequency blue light diffuse scattering | |
Execution standard | IEC61724-1:2017 | |
Soiling ratio (SR) range | 100% – 50% | SR = 100-TL(Transmission Loss) |
Accuracy | ± 1% | 90-100% |
± 3% | 80-90% | |
± 5% | 50~80% | |
PV module temperature | Principle:PT100 | Optional |
Measurement range : – 50~150°C | ||
Accuracy: ± 0.5° C Resolution: 0.1°C | ||
GPS | Positioning accuracy: 10m | Optional |
Output | RS485 | |
Relay | Optional | |
Communication | Modbus-RTU | |
Supply | 12~24VDC | |
Maximum power consumption | <2.5W @DC12V | Low-power design |
Alarm threshold | Can set upper and lower threshold values | |
Stability | ±1%/year | |
Operating environment | -40°C-+60°C@0-90%RH | |
Weight | 3.5kg | Net weight |
Size | 900 * 170 * 42mm | |
Cable length | 20m | |
Ingress protection | IP65 | |
Storage condition | 10°C-60°C@20%-90%RH |

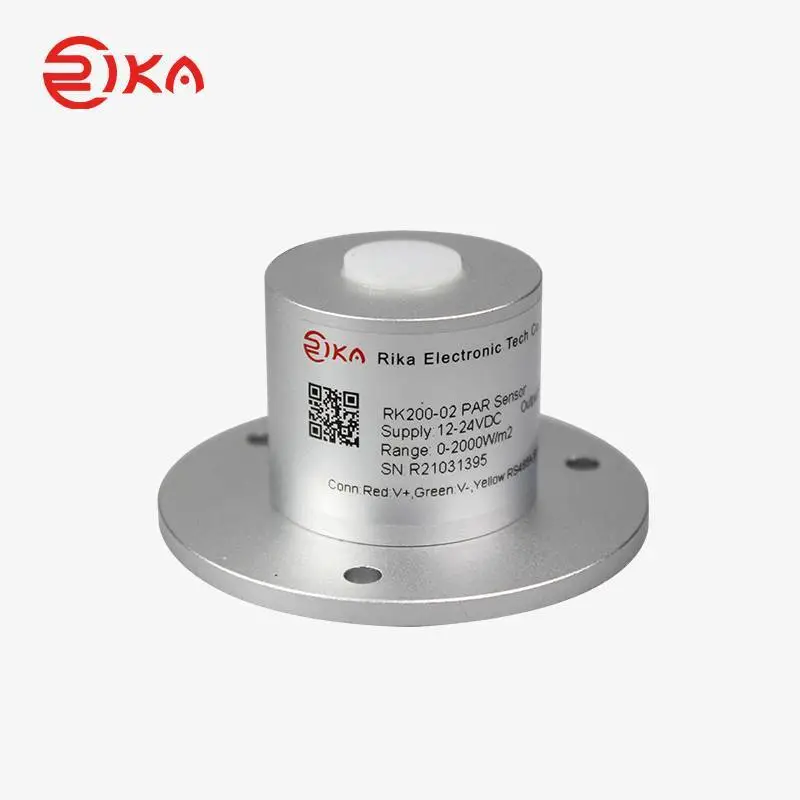

RK200-02 Quantum PAR Sensor , Photosynthetic Active Radiation Senso
PAR sensor, short for photosynthetic active radiation sensor, is a remarkable device that enables scientists and researchers to precisely measure the amount of light energy available for photosynthesis in plants. This cutting-edge technology harnesses the principles of quantum mechanics to detect and quantify photons within a specific wavelength range crucial for plant growth. The PAR sensor consists of an array of highly sensitive detectors capable of accurately capturing even the faintest light signals emitted by various sources, such as sunlight or artificial illuminants. Equipped with advanced optics, this instrument ensures minimal interference from external factors while efficiently converting incoming photons into electrical signals. Through its meticulous measurements, the PAR sensor provides invaluable insights into the physiological responses and productivity levels of plants across different environments and conditions. By analyzing this data, scientists can optimize cultivation practices, improve crop yields, and deepen our understanding of how light influences plant development at a molecular level.
PRODUCT DESCRIPTION
The RK200-02 PAR Sensor is mainly used for measuring solar radiation within 400~700nm wavelength. It is easy installation and can work continuously in all weathers. When there is sunlight, voltage output proportional to incident light intensity will be generated by the silicon-photo detector in the sensor. Its sensitivity is proportional to the cosine of incident light direct angle. Each product is with one sensitivity coefficient respectively. It can directly output radiation value in unit of μ*mol/m2*s.
SPECIFICATIONS
Item | Technical Specification |
Power Supply | 12-24VDC |
Power consumption | 0.2W |
Output Signal | 4-20mA①RS232/RS485(Modbus/NMEA-0183),SDI-12 |
Operating Temperature | -30℃-+60℃ |
Ingress Protection | IP65 |
Dimension | Ф82*108mm |
Weight(unpacked) | 0.18kg |
Main material | ASA |
①Only for wind speed and wind direction
Item | Technical Specification | ||
Range | Resolution | Accuracy | |
Wind Speed | 0-40m/s | 0.1m/s | ±3% |
Wind Direction | 0-360° | 1° | ±3° |
| Starting Threshold | 0.1m/s | 0.1m/s | – |
| Extreme Wind Speed | 60m/s | ||
