VISUAL MEASUREMENT
Model F
Description
Technical Data
Documents
Description
Visual Colorimeter for Lovibond® RYBN Scale

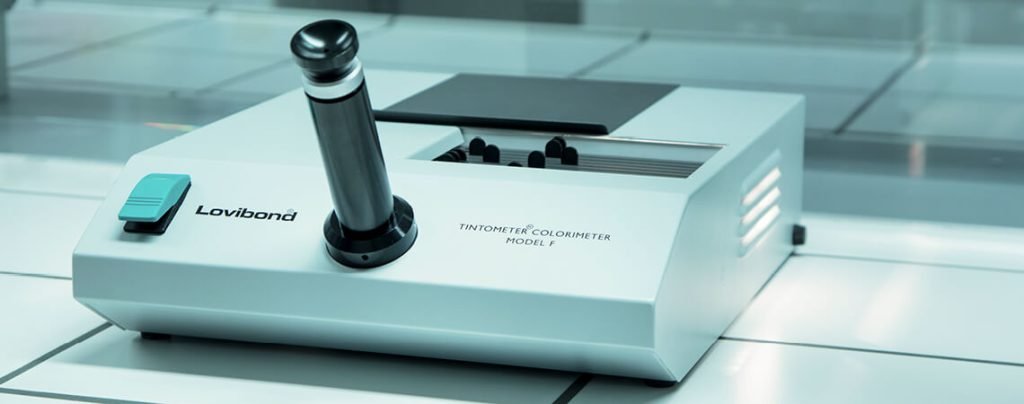

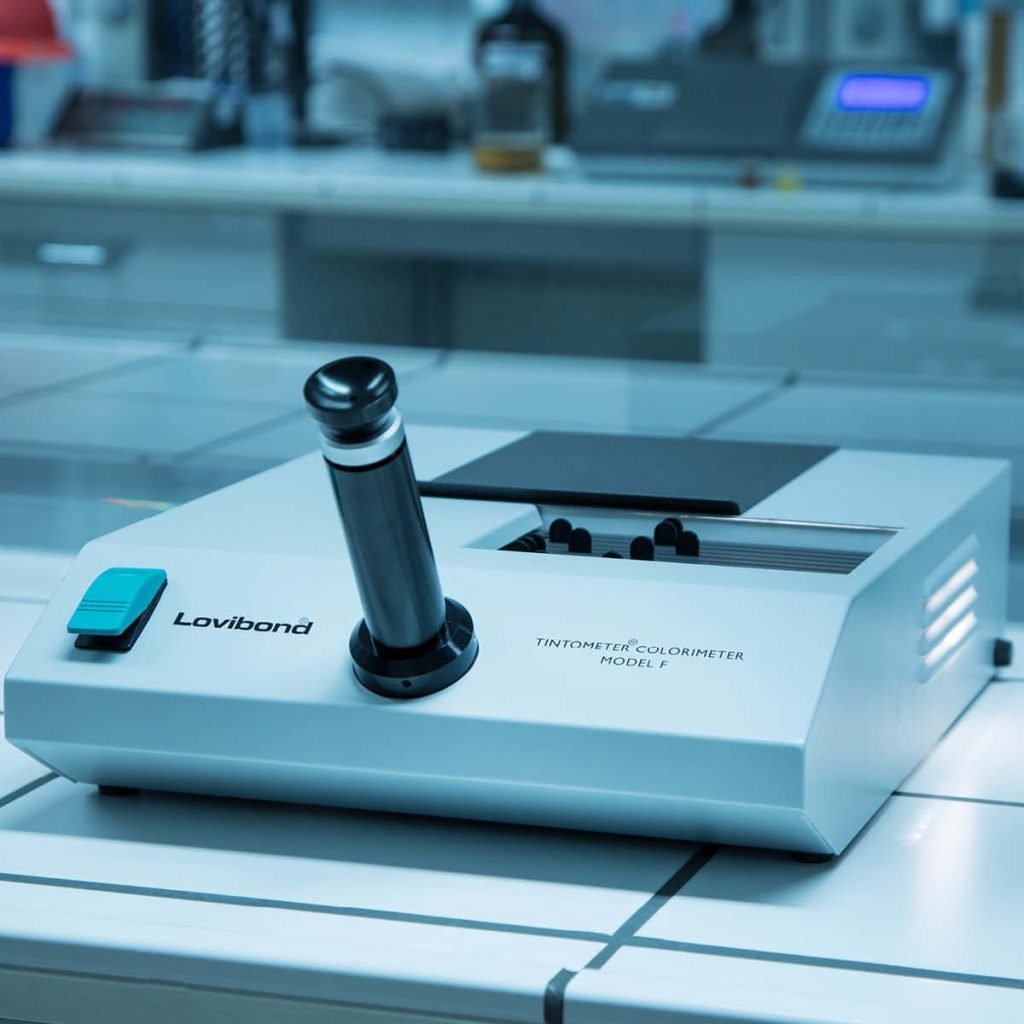

The Model F is a visual colorimeter designed to optimise the use of Lovibond® glass filters in order to express colour in terms of Lovibond® Red, Yellow, Blue and Neutral.
- Two Adjacent Fields of View
It is arranged with two adjacent fields of view, seen through the viewing tube, so that the product in the sample field and a white reflective surface in the comparison field are observed side by side, suitably illuminated. - Easy Colour Comparison
The Lovibond® glasses are introduced into the comparison field by a simple system of sliding racks, allowing you to compare the colour of light which is either transmitted through, or reflected from, the sample. The racks are varied until a visual colour match is found for the light from the sample and its colour can then be expressed in Lovibond® units. - Excellent Colour Matching
A series of neutral glasses in racks is also supplied; these can be introduced into the sample field to ‘dull’ the colour of products which are too bright to obtain a good colour match using Lovibond® Red, Yellow or Blue glasses. The racks allow a visual colour match to be found from the light from the sample and its colour can then be expressed in Lovibond® units. - Assured Accuracy of Lovibond® RYBN Colour
Lovibond® Tintometer® is the only company that can guarantee accurate, validated Lovibond® RYBN Colour readings. - Easy Maintenance for Optimum Performance
The Lovibond® Tintometer is a precision optical instrument which should be kept clean to preserve its accuracy, even in the harsh operating conditions often encountered. This is why the Model F has been designed to allow easy cleaning and maintenance with the minimum of cost and effort. The instrument includes a white plastic liner in the sample chamber which can be removed for cleaning if a spillage takes place. It can be replaced at intervals to maintain the whiteness of the interior, an essential feature for accurate colour matching.
Separate filters in the racks also simplify cleaning and allow replacement of single glasses (as opposed to complete racks) if required. - Application Versatility
The Model F is an easy-to-use instrument with versatile application in colour measurement of products which transmit light as well as opaque solids, powders and pastes (an optional ‘solid’ sample accessory pack may be required for colour grading of light-reflecting products). - Compliance to International Standards
It is available in slightly varying formats to meet the requirements of different applications and the national and international standardising bodies which specify the instrument in their official methods for colour measurement.
Technical Data
Applicable Standard AOCS Cc 13e-92
AOCS Cc 13j-97
BS684
IS 548 (part 1)-2010
ISO 15305
ISO 27608
MS 252 : Part 16
MS 817 : Part 12Color Type Transparent
Translucent
OpaquePath Length Up to 153 mm (6”) Illuminants Approximates to daylight Portability Benchtop Compliance CE Dimensions 330 x 230 x 410 mm
Documents
Model F (BS 684) with Compensating slides
Description
Technical Data
Documents
Description
- Visual Colorimeter for Lovibond® RYBN Scale
The Model F is a visual colorimeter designed to optimise the use of Lovibond® glass filters in order to express colour in terms of Lovibond® Red, Yellow, Blue and Neutral. - Ideal for Measuring Animal & Vegetable Fats & Oils
This version of the Model F measuring according to BS 684 Section 1.14, ISO 15305 and AOCS Method Cc 13e-92. Racks are fitted with colourless glass compensating slides in the sample field. - Two Adjacent Fields of View
It is arranged with two adjacent fields of view, seen through the viewing tube, so that the product in the sample field and a white reflective surface in the comparison field are observed side by side, suitably illuminated. - Easy Colour Comparison
The Lovibond® glasses are introduced into the comparison field by a simple system of sliding racks, allowing you to compare the colour of light which is either transmitted through, or reflected from, the sample. The racks are varied until a visual colour match is found for the light from the sample and its colour can then be expressed in Lovibond® units. - Excellent Colour Matching
A series of neutral glasses in racks is also supplied; these can be introduced into the sample field to ‘dull’ the colour of products which are too bright to obtain a good colour match using Lovibond® Red, Yellow or Blue glasses. The racks allow a visual colour match to be found from the light from the sample and its colour can then be expressed in Lovibond® units. - Assured Accuracy of Lovibond® RYBN Colour
Lovibond® Tintometer® is the only company that can guarantee accurate, validated Lovibond® RYBN Colour readings. - Easy Maintenance for Optimum Performance
The Lovibond® Tintometer is a precision optical instrument which should be kept clean to preserve its accuracy, even in the harsh operating conditions often encountered. This is
why the Model F has been designed to allow easy cleaning and maintenance with the minimum of cost and effort. The instrument includes a white plastic liner in the sample chamber which can be removed for cleaning if a spillage takes place. It can be replaced at intervals to maintain the whiteness of the interior, an essential feature for accurate colour matching.
Separate filters in the racks also simplify cleaning and allow replacement of single glasses (as opposed to complete racks) if required. - Application Versatility
The Model F is an easy-to-use instrument with versatile application in colour measurement of products which transmit light as well as opaque solids, powders and pastes (an optional ‘solid’ sample accessory pack may be required for colour grading of light-reflecting products). - Compliance to International Standards
It is available in slightly varying formats to meet the requirements of different applications and the national and international standardising bodies which specify the instrument in their
official methods for colour measurement.
Technical Data
| Applicable Standard | AOCS Cc 13e-92 AOCS Cc 13j-97 BS684 IS 548 (part 1)-2010 ISO 15305 ISO 27608 MS 252 : Part 16 MS 817 : Part 12 |
| Color Type | Transparent |
| Path Length | Up to 153 mm (6”) |
| Illuminants | Approximates to daylight |
| Portability | Benchtop |
| Compliance | CE |
| Dimensions | 330 x 230 x 410 mm |
Documents
AF 710-3
Description
Technical Data
Documents
Description
- Visual Colorimeter for AOCS Official Method Cc 13b-45, the Wesson Method

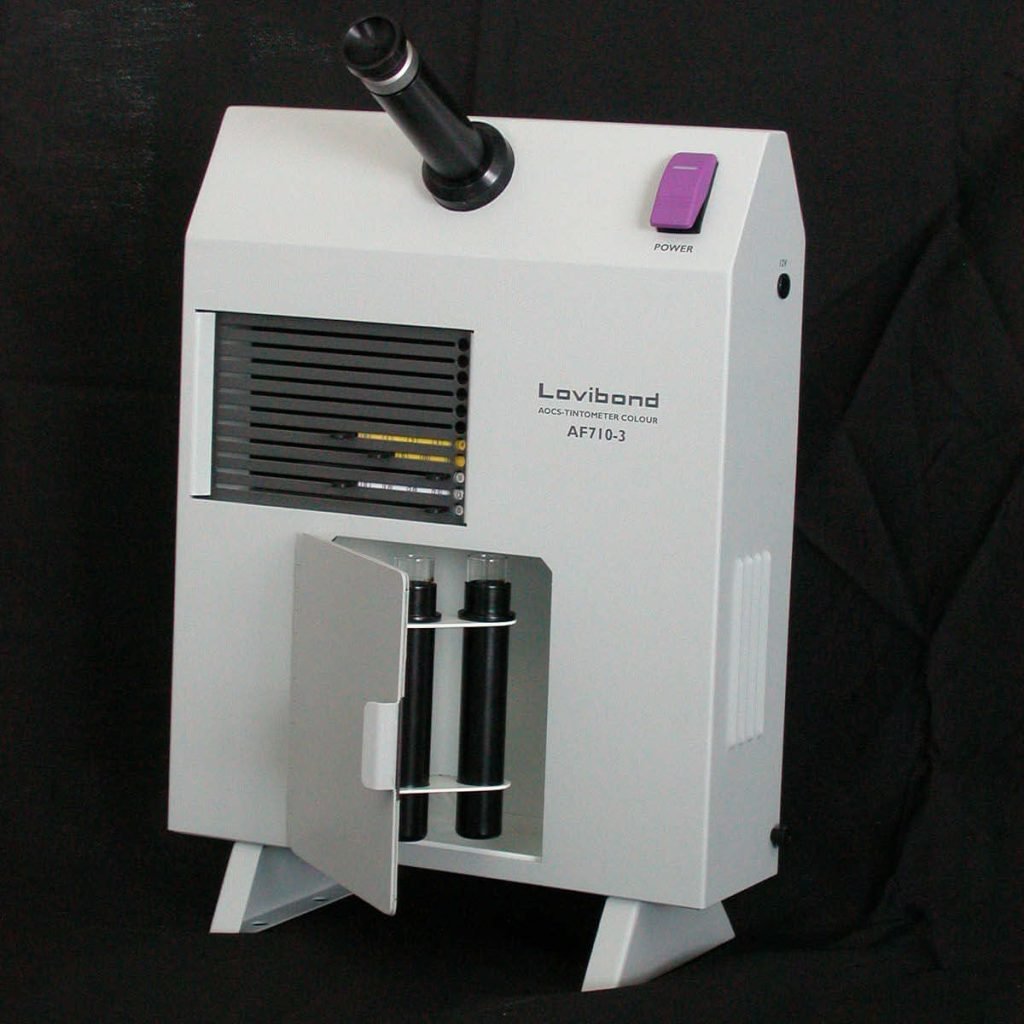

The AF 710 is a visual colorimeter designed to optimise the use of Lovibond® glass filters in order to express colour in terms of the AOCS-Tintometer® Colour Scale. The AOCS-Tintometer® Colour Scale is a special red and yellow version of the Lovibond® RYBN scale using the AOCS-Tintometer® Red Scale (which is not the same as the Lovibond® standard red scale). The AF 710-3 accommodates the special flat-bottomed glass sample tubes specified in the AOCS Official Method Cc 13b-45, which are marked to indicate an oil column of ½”, 1″ and 5¼”. - International Standards Approval
The Lovibond® AF 710-3 is a visual instrument approved by the American Oil Chemists Society (AOCS) for colour grading of oils and fats. - Easy Determination of Colour
You can easily measure the colour of the sample by comparing light transmitted through a column of oil with that transmitted through a series of red and yellow glasses calibrated in accordance with the AOCS-Tintometer® Colour Scale. The glasses are varied until a colour match is found for the light passing through the oil. You can then express this colour in units of red and yellow. - No Excessive Ambient Light
The tube holder, which prevents light from entering the sides of the tubes, houses two tubes, one containing the sample and the other allowing an equal
amount of light to reach the colour glasses.
Technical Data
| Applicable Standard | AOCS Cc 8d-55 AOCS Cc 13b-45 AOCS Cc 13j-97 |
| Color Type | Transparent |
| Power Supply | 230 V / 50-60 Hz or 115 V / 50-60 Hz |
| Portability | Benchtop |
| Touchscreen | No |
Documents
Comparator 3000/ Petroleum AF650, Visual Grading
EBC Comparator (AF607)
Description
Technical Data
Documents
Description
- Enables Compliance to the EBC Color Scale
Designed to measure EBC color standards that cover the range 2 -10 in steps of 0.5 EBC and 10 – 27 in steps of 1 EBC. The discs are arranged in two pairs so you can easily change them over. - Fast Determination of Color Value
You can directly compare the sample with the color values for quick results. - Easy to Achieve Optimum Color Accuracy
The advantage of a 3-section field of view is that the sample and two consecutive glasses on the color scale are viewed simultaneously, making it easier and quicker for you to achieve the ideal color match. - Facilitates Tolerance Level Setting
For rapid color grading within predetermined color limits, the glass standards can be set to the two limiting colors so that it is easy to check that the sample is within tolerance. - Guaranteed Constant Lighting Conditions
In the instruments, the tungsten halogen light source is color corrected to CIE standard illuminant B, which guarantees constant lighting conditions for color grading. - Compliance to Standards
Each Comparator 3000 is supplied with the correct cells for the appropriate path length determined by the standard
Technical Data
| Applicable Standard | EBC Analytika |
| Color Type | Transparent |
| Portability | Benchtop |
Documents
Gardner Comparator (AF228)
Description
Technical Data
Documents
Description
- Accurate Determination of the Gardner Scale
The AF 228 incorporates 18 glass standards which make up the scale in a pair of discs - Fast Determination of Color Value
You can directly compare the sample with the color values for quick results. - Easy to Achieve Optimum Color Accuracy
The advantage of a 3-section field of view is that the sample and two consecutive glasses on the color scale are viewed simultaneously, making it easier and quicker for you to achieve the ideal color match. - Facilitates Tolerance Level Setting
For rapid color grading within predetermined color limits, the glass standards can be set to the two limiting colors so that it is easy to check that the sample is within tolerance. - Guaranteed Constant Lighting Conditions
In the instruments, the tungsten halogen light source is color corrected to CIE standard illuminant C*, which guarantees constant lighting conditions for color grading. - Compliance to Standards
Each Comparator 3000 is supplied with the correct cells for the appropriate path length determined by the standard.
Technical Data
| Applicable Standard | ASTM D509 ASTM D1544 ASTM D6166 |
| Color Type | Transparent |
| Portability | Benchtop |
Documents
FAC Comparator (AF229)
Description
Technical Data
Documents
Description
- Accurate Determination of the FAC Scale
The AF 229 incorporates 29 glass standards which make up the scale in a pair of discs - Fast Determination of Colour Value
You can directly compare the sample with the colour values for quick results. - Easy to Achieve Optimum Colour Accuracy
The advantage of a 3-section field of view is that the sample and two consecutive glasses on the colour scale are viewed simultaneously, making it easier and quicker for you to achieve the ideal colour match. - Facilitates Tolerance Level Setting
For rapid colour grading within predetermined colour limits, the glass standards can be set to the two limiting colours so that it is easy to check that the sample is within tolerance. - Guaranteed Constant Lighting Conditions
In the instruments, the tungsten halogen light source is colour corrected to CIE standard illuminant C*, which guarantees constant lighting conditions for colour grading. - Compliance to Standards
Each Comparator 3000 is supplied with the correct cells for the appropriate path length determined by the standard.
Technical Data
| Applicable Standard | AOCS Cc 13a-43 |
| Color Type | Transparent |
| Portability | Benchtop |
Documents
Petroleum Oils Comparator (AF650)
Description
Technical Data
Documents
Description
- Accurate Determination of the ASTM Oils Scale
The AF 650 incorporates 16 glass standards which make up the scale in a pair of discs - Fast Determination of Color Value
You can directly compare the sample with the color values for quick results. - Easy to Achieve Optimum Color Accuracy
The advantage of a 3-section field of view is that the sample and two consecutive glasses on the color scale are viewed simultaneously, making it easier and quicker for you to achieve the ideal color match. - Facilitates Tolerance Level Setting
For rapid color grading within predetermined color limits, the glass standards can be set to the two limiting colors so that it is easy to check that the sample is within tolerance. - Guaranteed Constant Lighting Conditions
In the instruments, the tungsten halogen light source is color corrected to CIE standard illuminant C*, which guarantees constant lighting conditions for color grading. - Compliance to Standards
Each Comparator 3000 is supplied with the correct cells for the appropriate path length determined by the standard.
Technical Data
| Applicable Standard | ASTM D1500 ASTM D6045 ISO 2049 |
| Color Type | Transparent |
| Portability | Benchtop |
Documents
Comparator System 2000, Visual Grading
AF347 Organic Impurities in Fine Aggregates (ASTM C40)
Description
Technical Data
Documents
Description
- Simple, Straightforward Test Procedure
There’s no need for you to prepare a standard solution. This kit gives dependable measurements that are easily interpreted. - Fast, Economical & Portable Visual Matching

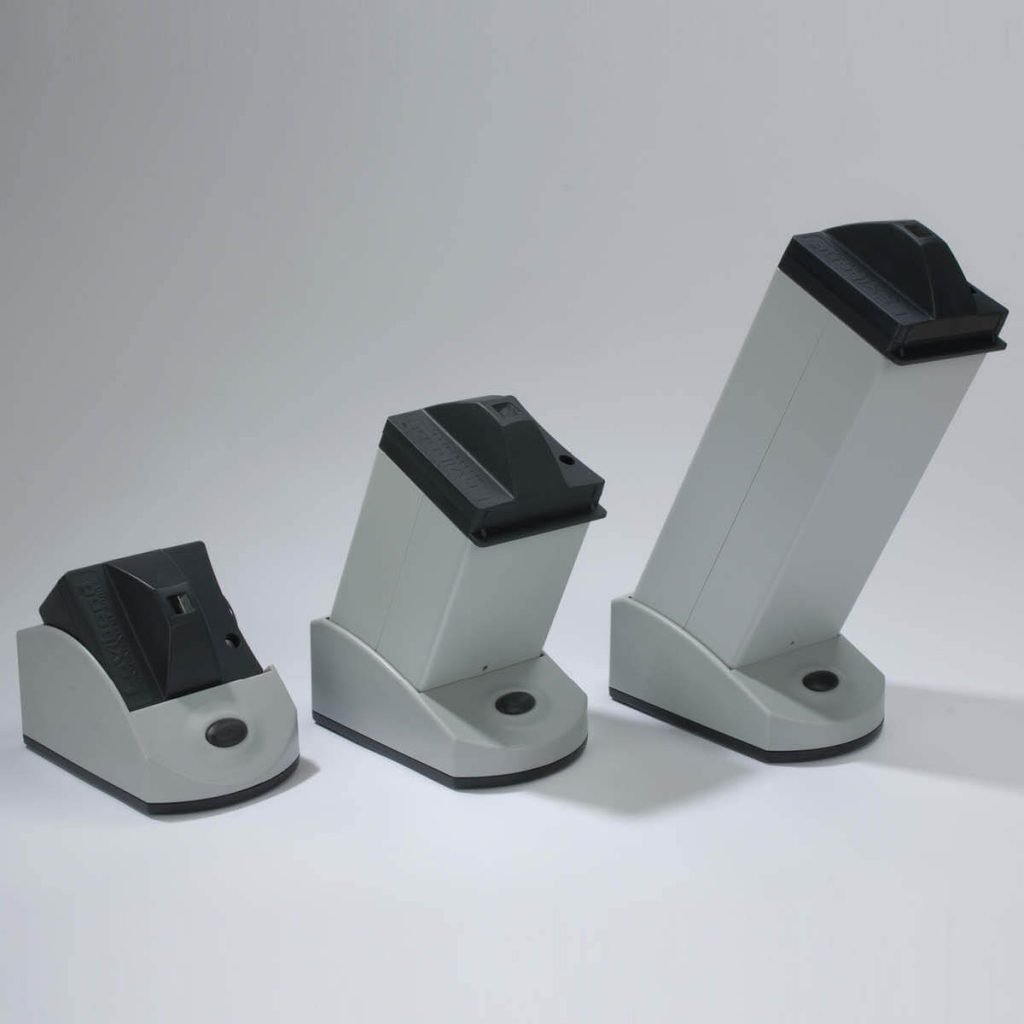

The Comparator 2000+ is a flexible, modular system for Visual Color Grading. Using a suitable comparator instrument and glass disc, you can quickly visually match the sample directly against the calibrated, color stable glass standards. - Two-Field Vision for Accurate Results
Lovibond® comparator instruments include an integrated prism which causes the sample and comparison fields to overlap, allowing enhanced color discrimination and matching. The prism is ultrasonically sealed to prevent contamination of the optics. Each individually graded glass standard represents a discrete step on the measurement range (as opposed to a continuous graduation), aiding color discrimination and allowing great accuracy of results. - Ability to Guarantee Constant Lighting Conditions

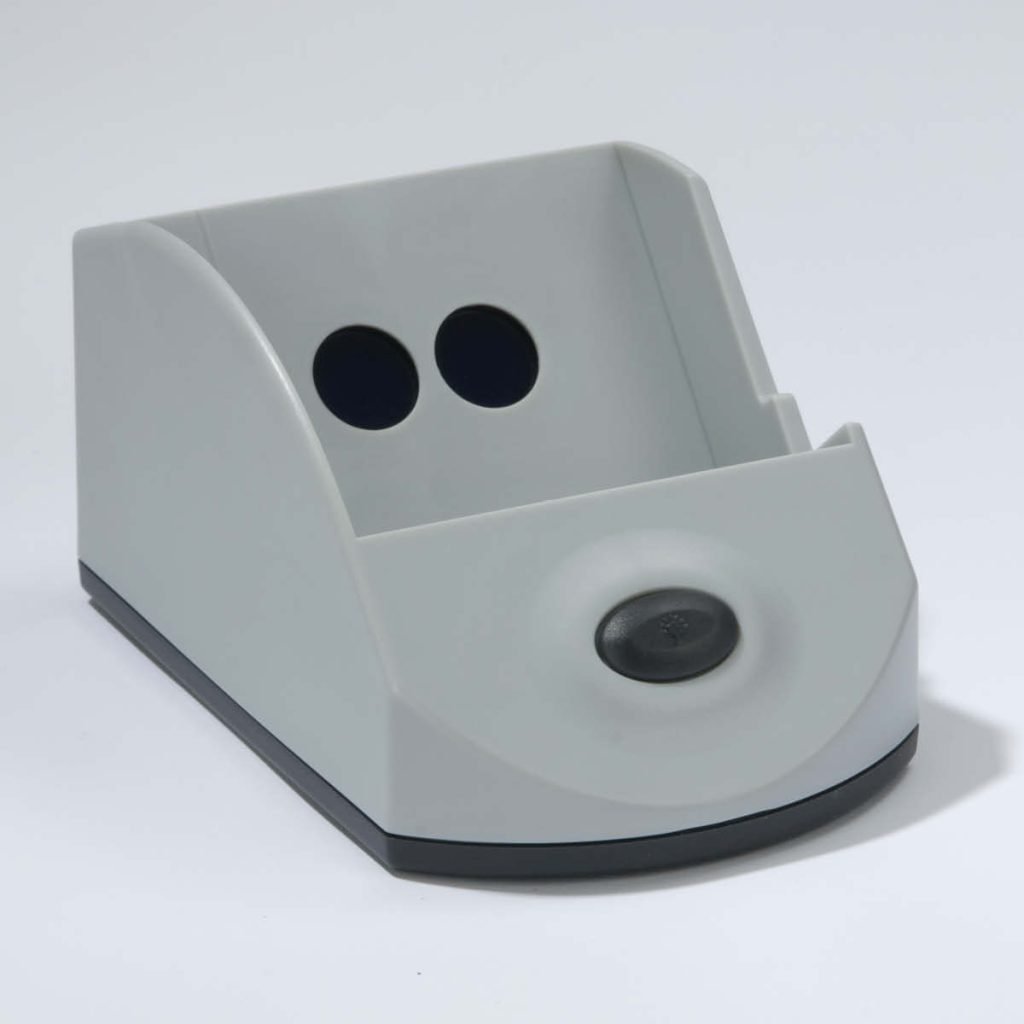

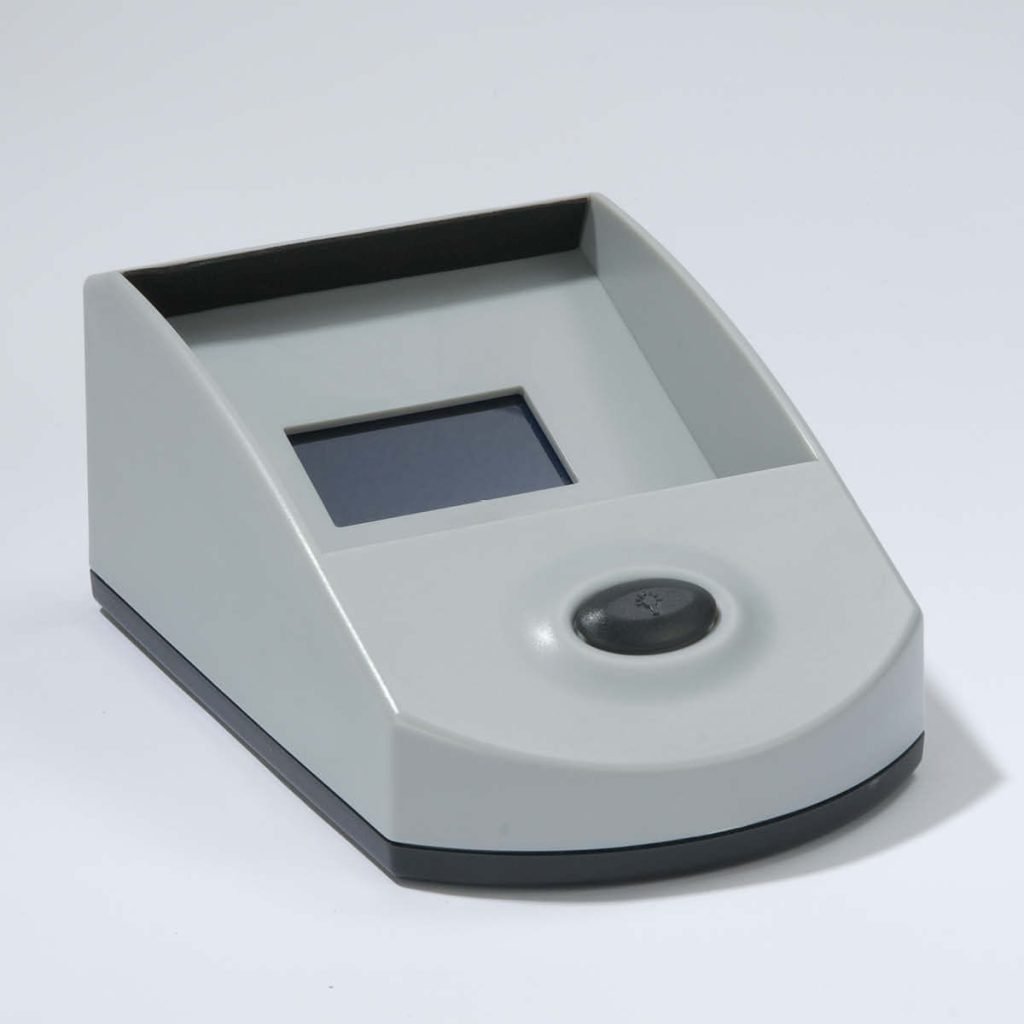

An optional item for the Comparator 2000+ is the Daylight 2000 Lighting Unit. This is a standardised light source which guarantees you a constant lighting condition for accurate color grading. This is particularly useful when the sample is very pale in color. By using a Lovibond® lighting unit, you can confident of uniform lighting conditions for color matching, 24 hours a day and irrespective of ambient lighting. - Extended Shelf Life

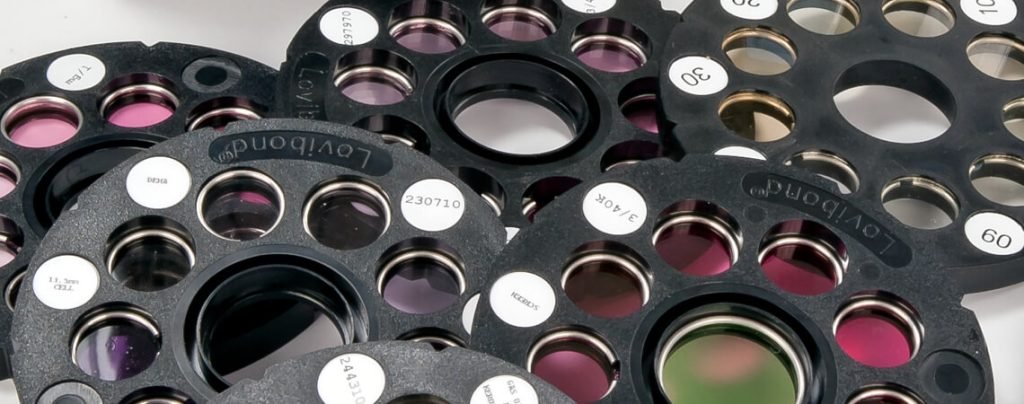

The unique feature of Lovibond® test discs is that they incorporate colored glass standards that are color stable and not affected by UV light or extreme environmental conditions.
Please note, we cannot guarantee compatibility of discontinued Lovibond® Comparator 1000 disks with the Lovibond® 2000+ Comparator.
Technical Data
| Applicable Standard | ASTM C40 |
| Color Type | Transparent |
| Portability | Portable |
Documents
AF508 Insoluble Content of Diesel Engine Oil
Description
Technical Data
Documents
Description
- Fast, Economical & Portable Visual Matching
The Comparator 2000+ is a flexible, modular system for Visual Colour Grading. Using a suitable comparator instrument and glass disc, you can quickly visually match the sample directly against the calibrated, colour stable glass standards. - Two-Field Vision for Accurate Results
Lovibond® comparator instruments include an integrated prism which causes the sample and comparison fields to overlap, allowing enhanced colour discrimination and matching. The prism is ultrasonically sealed to prevent contamination of the optics. Each individually graded glass standard represents a discrete step on the measurement range (as opposed to a continuous graduation), aiding colour discrimination and allowing great accuracy of results. - Ability to Guarantee Constant Lighting Conditions
An optional item for the Comparator 2000+ is the Daylight 2000 Lighting Unit. This is a standardised light source which guarantees you a constant lighting condition for accurate colour grading. This is particularly useful when the sample is very pale in colour. By using a Lovibond® lighting unit, you can confident of uniform lighting conditions for colour matching, 24 hours a day and irrespective of ambient lighting. - Supports Multiple Path Lengths
The standard Comparator 2000+ is a short path length instrument (up to 40 mm) to be used with relatively dark colours. Nessleriser systems are longer path length instruments to enable you to match a column of sample in a glass cylinder of appropriate path length. They are designed for measuring unsaturated samples that are below the sensitivity of the Comparator 2000. - Extended Shelf Life
The unique feature of Lovibond® test discs is that they incorporate coloured glass standards that are colour stable and not affected by UV light or extreme environmental conditions. - One Instrument – 100’s of Discs
There are literally hundreds of glass discs available for you to chose from: ranging from the more standard scales such as the EBC (European Brewing Convention) scale to more obscure scales or even bespoke scales that we have made for customers. No challenge is too great. - Integrated Kits for On-Site, Immediate Use
For several scales, we also provide integrated kits containing everything you need to start measuring straight from the box.
Please note, we cannot guarantee compatability of discontinued Lovibond® Comparator 1000 disks with the Lovibond® 2000+ Comparator.
Technical Data
| Color Type | Transparent |
| Portability | Portable |
Documents
AF509C for Marine Diesel Fuel Type F76
Description
Technical Data
Documents
Description
- Quick, On-site Color Measurement
This special kit enables you to quickly measure the color of type F76 marine diesel fuels according to a limited range of the ASTM Color Scale. It is designed to ensure that the correct fuel is used in motor vessels running with type F76 diesel, thereby avoiding errors in fuel use that can result in expensive corrective maintenance. The test is based on a direct color match between the sample and a test disc containing ASTM Color standards, enabling you to accept or reject the diesel fuel in a matter of minutes. - Easy Determination
The Lovibond® AF 509/C includes a test disc containing a limited range of ASTM Color standards (1 – 5 units as opposed to the full range of 0.5 – 8 units). This is sufficient for this purpose since type F76 fuel has a target color of 3.5 ASTM Color and reduces the options for you to chose from. - Fast, Economical & Portable Visual Matching
The Comparator 2000+ is a flexible, modular system for Visual Color Grading. Using a suitable comparator instrument and glass disc, you can quickly visually match the sample directly against the calibrated, color stable glass standards. - Two-Field Vision for Accurate Results
Lovibond® comparator instruments include an integrated prism which causes the sample and comparison fields to overlap, allowing enhanced color discrimination and matching. The prism is ultrasonically sealed to prevent contamination of the optics. Each individually graded glass standard represents a discrete step on the measurement range (as opposed to a continuous graduation), aiding color discrimination and allowing great accuracy of results. - Ability to Guarantee Constant Lighting Conditions
An optional item for the Comparator 2000+ is the Daylight 2000 Lighting Unit. This is a standardized light source which guarantees you a constant lighting condition for accurate color grading. This is particularly useful when the sample is very pale in color. By using a Lovibond® lighting unit, you can confident of uniform lighting conditions for color matching, 24 hours a day and irrespective of ambient lighting. - Extended Shelf Life
The unique feature of Lovibond® test discs is that they incorporate colored glass standards that are color stable and not affected by UV light or extreme environmental conditions.
Please note, we cannot guarantee compatibility of discontinued Lovibond® Comparator 1000 disks with the Lovibond® 2000+ Comparator.
Technical Data
| Applicable Standard | ASTM D1500 ASTM D6045 ISO 2049 |
| Color Type | Transparent |
| Portability | Portable |
Documents
AF626 Marked Oils, Warehouse Test
Description
Technical Data
Documents
Description
- Self-Contained Kit to Determine Quinizarin Market
The AF 626 contains everything you need to determine the correct amount of Quinizarin Marker is present in diesel fuel. - Fast, Economical & Portable Visual Matching
The Comparator 2000+ is a flexible, modular system for Visual Color Grading. Using a suitable comparator instrument and glass disc, you can quickly visually match the sample directly against the calibrated, color stable glass standards. - Two-Field Vision for Accurate Results
Lovibond® comparator instruments include an integrated prism which causes the sample and comparison fields to overlap, allowing enhanced color discrimination and matching. The prism is ultrasonically sealed to prevent contamination of the optics. Each individually graded glass standard represents a discrete step on the measurement range (as opposed to a continuous graduation), aiding color discrimination and allowing great accuracy of results. - Ability to Guarantee Constant Lighting Conditions
An optional item for the Comparator 2000+ is the Daylight 2000 Lighting Unit. This is a standardized light source which guarantees you a constant lighting condition for accurate color grading. This is particularly useful when the sample is very pale in color. By using a Lovibond® lighting unit, you can confident of uniform lighting conditions for color matching, 24 hours a day and irrespective of ambient lighting. - Extended Shelf Life
The unique feature of Lovibond® test discs is that they incorporate colored glass standards that are color stable and not affected by UV light or extreme environmental conditions.
Please note, we cannot guarantee compatibility of discontinued Lovibond® Comparator 1000 disks with the Lovibond® 2000+ Comparator.
Technical Data
| Color Type | Transparent |
| Portability | Portable |
Documents
AF706 Resazurin Test Kit
Description
Technical Data
Documents
Description
- Easily Determine the Bacterial Content of Milk
You can use the Resazurin test kit to get a rapid indication of the bacterial content of milk. Resazurin gives milk a characteristic blue color and the test is based on the ability of bacteria in the milk to reduce the blue dye. - Fast, Economical & Portable Visual Matching
The Comparator 2000+ is a flexible, modular system for Visual Color Grading. Using a suitable comparator instrument and glass disc, you can quickly visually match the sample directly against the calibrated, color stable glass standards. - Two-Field Vision for Accurate Results
Lovibond® comparator instruments include an integrated prism which causes the sample and comparison fields to overlap, allowing enhanced color discrimination and matching. The prism is ultrasonically sealed to prevent contamination of the optics. Each individually graded glass standard represents a discrete step on the measurement range (as opposed to a continuous graduation), aiding color discrimination and allowing great accuracy of results. - Ability to Guarantee Constant Lighting Conditions
An optional item for the Comparator 2000+ is the Daylight 2000 Lighting Unit. This is a standardized light source which guarantees you a constant lighting condition for accurate color grading. This is particularly useful when the sample is very pale in color. By using a Lovibond® lighting unit, you can confident of uniform lighting conditions for color matching, 24 hours a day and irrespective of ambient lighting. - Extended Shelf Life
The unique feature of Lovibond® test discs is that they incorporate colored glass standards that are color stable and not affected by UV light or extreme environmental conditions.
Please note, we cannot guarantee compatibility of discontinued Lovibond® Comparator 1000 disks with the Lovibond® 2000+ Comparator.
Technical Data
| Applicable Standard | BS4285 |
| Color Type | Opaque |
| Portability | Portable |
Documents
Euromarker in Clean Diesel, Roadside Test
Description
Technical Data
Documents
Description
- Roadside Test Kit
You can now determine the presence of the untaxed and marked diesel fuel being used illegally in normal road-using motor vehicles right by the roadside. - Fast, Economical & Portable Visual Matching
The Comparator 2000+ is a flexible, modular system for Visual Color Grading. Using a suitable comparator instrument and glass disc, you can quickly visually match the sample directly against the calibrated, color stable glass standards. - Two-Field Vision for Accurate Results
Lovibond® comparator instruments include an integrated prism which causes the sample and comparison fields to overlap, allowing enhanced color discrimination and matching. The prism is ultrasonically sealed to prevent contamination of the optics. Each individually graded glass standard represents a discrete step on the measurement range (as opposed to a continuous graduation), aiding color discrimination and allowing great accuracy of results. - Ability to Guarantee Constant Lighting Conditions
An optional item for the Comparator 2000+ is the Daylight 2000 Lighting Unit. This is a standardised light source which guarantees you a constant lighting condition for accurate color grading. This is particularly useful when the sample is very pale in color. By using a Lovibond® lighting unit, you can confident of uniform lighting conditions for color matching, 24 hours a day and irrespective of ambient lighting. - Extended Shelf Life
The unique feature of Lovibond® test discs is that they incorporate colored glass standards that are color stable and not affected by UV light or extreme environmental conditions.
Please note, we cannot guarantee compatibility of discontinued Lovibond® Comparator 1000 disks with the Lovibond® 2000+ Comparator.
Technical Data
| Color Type | Transparent |
| Portability | Portable |
Documents
Quinizarin in Marked Oils, Roadside Test, 10 - 100
Description
Technical Data
Documents
Description
- Easy-To-Use Roadside Test
You can now determine quinizarin in marked oils as prescribed by HM Customs & Excise directly at the roadside with easy visual comparison. - Fast, Economical & Portable Visual Matching
The Comparator 2000+ is a flexible, modular system for Visual Color Grading. Using a suitable comparator instrument and glass disc, you can quickly visually match the sample directly against the calibrated, color stable glass standards. - Two-Field Vision for Accurate Results
Lovibond® comparator instruments include an integrated prism which causes the sample and comparison fields to overlap, allowing enhanced color discrimination and matching. The prism is ultrasonically sealed to prevent contamination of the optics. Each individually graded glass standard represents a discrete step on the measurement range (as opposed to a continuous graduation), aiding color discrimination and allowing great accuracy of results. - Ability to Guarantee Constant Lighting Conditions
An optional item for the Comparator 2000+ is the Daylight 2000 Lighting Unit. This is a standardized light source which guarantees you a constant lighting condition for accurate color grading. This is particularly useful when the sample is very pale in colour. By using a Lovibond® lighting unit, you can confident of uniform lighting conditions for color matching, 24 hours a day and irrespective of ambient lighting. - Extended Shelf Life
The unique feature of Lovibond® test discs is that they incorporate colored glass standards that are color stable and not affected by UV light or extreme environmental conditions.
Please note, we cannot guarantee compatibility of discontinued Lovibond® Comparator 1000 disks with the Lovibond® 2000+ Comparator.
Technical Data
| Color Type | Transparent |
| Portability | Portable |
Documents
AF324 Maple Syrup Disc (IMSI)
Description
Technical Data
Documents
Description
- Quality Control of Maple Syrup through Color Grading According to the International Maple Syrup Institute
The AF 324 is unique to measure according to the IMSI standards. It comprises 4 different color classes and descriptions:
Golden Maple Syrup with a Delicate Taste
– Color not less than 75% Tc
Amber Maple Syrup with a Rich Taste
– Color 50-74.9% Tc
Dark Maple Syrup with Robust Taste
– Color 25-49.9% Tc
Very Dark Maple Syrup with a Strong Taste
– Color less than 25% Tc
% Tc refers to the percentage of light transmission through maple syrup.
The IMSI Maple Syrup disc has recently been upgraded. For a step-through-guide on how to update the disc, please view the video. - Fast, Economical & Portable Visual Matching
The Comparator 2000+ is a flexible, modular system for Visual Color Grading. Using a suitable comparator instrument and glass disc, you can quickly visually match the sample directly against the calibrated, color stable glass standards. - Two-Field Vision for Accurate Results
Lovibond® comparator instruments include an integrated prism which causes the sample and comparison fields to overlap, allowing enhanced color discrimination and matching. The prism is ultrasonically sealed to prevent contamination of the optics. Each individually graded glass standard represents a discrete step on the measurement range (as opposed to a continuous graduation), aiding color discrimination and allowing great accuracy of results. - Ability to Guarantee Constant Lighting Conditions
An optional item for the Comparator 2000+ is the Daylight 2000 Lighting Unit. This is a standardized light source which guarantees you a constant lighting condition for accurate color grading. This is particularly useful when the sample is very pale in color. By using a Lovibond® lighting unit, you can confident of uniform lighting conditions for color matching, 24 hours a day and irrespective of ambient lighting. - Extended Shelf Life
The unique feature of Lovibond® test discs is that they incorporate colored glass standards that are color stable and not affected by UV light or extreme environmental conditions.
Please note, we cannot guarantee compatibility of discontinued Lovibond® Comparator 1000 disks with the Lovibond® 2000+ Comparator.
Technical Data
| Applicable Standard | IMSI |
| Color Type | Transparent |
| Portability | Portable |
Documents
AF325 Platinum-Cobalt/Hazen/APHA Units
Description
Technical Data
Documents
Description
- Greater Measurement Sensitivity and Accuracy for Lightly Colored Liquids
The Lovibond® AF325 is a visual test kit is ideal for relatively unsaturated liquids due to its extended path length. - Fast, Economical & Portable Visual Matching
The Comparator 2000+ is a flexible, modular system for Visual Color Grading. Using a suitable comparator instrument and glass disc, you can quickly visually match the sample directly against the calibrated, color stable glass standards. - Two-Field Vision for Accurate Results
Lovibond® comparator instruments include an integrated prism which causes the sample and comparison fields to overlap, allowing enhanced color discrimination and matching. The prism is ultrasonically sealed to prevent contamination of the optics. Each individually graded glass standard represents a discrete step on the measurement range (as opposed to a continuous graduation), aiding color discrimination and allowing great accuracy of results. - Ability to Guarantee Constant Lighting Conditions
An optional item for the Comparator 2000+ is the Daylight 2000 Lighting Unit. This is a standardized light source which guarantees you a constant lighting condition for accurate color grading. This is particularly useful when the sample is very pale in color. By using a Lovibond® lighting unit, you can confident of uniform lighting conditions for color matching, 24 hours a day and irrespective of ambient lighting. - Extended Shelf Life
The unique feature of Lovibond® test discs is that they incorporate colored glass standards that are color stable and not affected by UV light or extreme environmental conditions.
Please note, we cannot guarantee compatibility of discontinued Lovibond® Comparator 1000 disks with the Lovibond® 2000+ Comparator.
Technical Data
| Applicable Standard | ASTM D1209 ISO 6271 |
| Color Type | Transparent |
| Portability | Portable |
Documents
AF327 Pt-Co/Hazen/APHA Colour, Low Range, 0 - 70 mg
Description
Technical Data
Documents
Description
- Enables You to Comply to ASTM 1209
The Lovibond® AF327 is a special kit for visual color grading of Platinum-Cobalt/Hazen/APHA Color over the range 0 – 70 mg Pt/l. It enables you to comply with the path length requirements of ASTM D 1209, which specifies a system for color comparison where a 100 ml column of sample 275 – 295 mm in length is matched with Platinum-Cobalt solutions. - Fast, Economical & Portable Visual Matching
The Comparator 2000+ is a flexible, modular system for Visual Color Grading. Using a suitable comparator instrument and glass disc, you can quickly visually match the sample directly against the calibrated, color stable glass standards. - Two-Field Vision for Accurate Results
Lovibond® comparator instruments include an integrated prism which causes the sample and comparison fields to overlap, allowing enhanced color discrimination and matching. The prism is ultrasonically sealed to prevent contamination of the optics. Each individually graded glass standard represents a discrete step on the measurement range (as opposed to a continuous graduation), aiding color discrimination and allowing great accuracy of results. - Ability to Guarantee Constant Lighting Conditions
An optional item for the Comparator 2000+ is the Daylight 2000 Lighting Unit. This is a standardized light source which guarantees you a constant lighting condition for accurate color grading. This is particularly useful when the sample is very pale in color. By using a Lovibond® lighting unit, you can confident of uniform lighting conditions for color matching, 24 hours a day and irrespective of ambient lighting. - Extended Shelf Life
The unique feature of Lovibond® test discs is that they incorporate colored glass standards that are color stable and not affected by UV light or extreme environmental conditions.
Please note, we cannot guarantee compatibility of discontinued Lovibond® Comparator 1000 disks with the Lovibond® 2000+ Comparator.
Technical Data
| Applicable Standard | ASTM D1209 ISO 6271 |
| Color Type | Transparent |
| Portability | Portable |
Documents
AF328 Platinum-Cobalt/Hazen/APHA Units
Description
Technical Data
Documents
Description
- Great Sensitivity and Accuracy for Light Yellow Liquids
The AF328 is ideal for relatively unsaturated colors due to the long path length Nessleriser comparator which extends the path length. - Fast, Economical & Portable Visual Matching
The Comparator 2000+ is a flexible, modular system for Visual Color Grading. Using a suitable comparator instrument and glass disc, you can quickly visually match the sample directly against the calibrated, color stable glass standards. - Two-Field Vision for Accurate Results
Lovibond® comparator instruments include an integrated prism which causes the sample and comparison fields to overlap, allowing enhanced color discrimination and matching. The prism is ultrasonically sealed to prevent contamination of the optics. Each individually graded glass standard represents a discrete step on the measurement range (as opposed to a continuous graduation), aiding color discrimination and allowing great accuracy of results. - Ability to Guarantee Constant Lighting Conditions
An optional item for the Comparator 2000+ is the Daylight 2000 Lighting Unit. This is a standardized light source which guarantees you a constant lighting condition for accurate color grading. This is particularly useful when the sample is very pale in color. By using a Lovibond® lighting unit, you can confident of uniform lighting conditions for color matching, 24 hours a day and irrespective of ambient lighting. - Extended Shelf Life
The unique feature of Lovibond® test discs is that they incorporate colored glass standards that are color stable and not affected by UV light or extreme environmental conditions.
Please note, we cannot guarantee compatibility of discontinued Lovibond® Comparator 1000 disks with the Lovibond® 2000+ Comparator.
Technical Data
| Applicable Standard | ASTM D1209 ISO 6271 |
| Color Type | Transparent |
| Portability | Portable |
Documents
AF329 Platinum-Cobalt/Hazen/APHA Units
Description
Technical Data
Documents
Description
- Greater Measurement Sensitivity and Accuracy
The Lovibond® AF329 is a special kit for visual color grading using Platinum-Cobalt/Hazen/APHA Color over the range 0 – 250 mg Pt/l. It is typically used for light yellow liquids such as water, oils and chemicals. The color is determined by visually matching a column of sample in a Nessler cylinder with precalibrated colored glass standards, which are stablecolored and not affected by UV light or extreme environmental conditions. Because the sample colors are relatively unsaturated, the kit employs a long path length Nessleriser comparator to give accurate readings . - Fast, Economical & Portable Visual Matching
The Comparator 2000+ is a flexible, modular system for Visual Color Grading. Using a suitable comparator instrument and glass disc, you can quickly visually match the sample directly against the calibrated, color stable glass standards. - Two-Field Vision for Accurate Results
Lovibond® comparator instruments include an integrated prism which causes the sample and comparison fields to overlap, allowing enhanced color discrimination and matching. The prism is ultrasonically sealed to prevent contamination of the optics. Each individually graded glass standard represents a discrete step on the measurement range (as opposed to a continuous graduation), aiding color discrimination and allowing great accuracy of results. - Ability to Guarantee Constant Lighting Conditions
An optional item for the Comparator 2000+ is the Daylight 2000 Lighting Unit. This is a standardized light source which guarantees you a constant lighting condition for accurate color grading. This is particularly useful when the sample is very pale in color. By using a Lovibond® lighting unit, you can confident of uniform lighting conditions for color matching, 24 hours a day and irrespective of ambient lighting. - Extended Shelf Life
The unique feature of Lovibond® test discs is that they incorporate colored glass standards that are color stable and not affected by UV light or extreme environmental conditions.
Please note, we cannot guarantee compatibility of discontinued Lovibond® Comparator 1000 disks with the Lovibond® 2000+ Comparator.
Technical Data
| Applicable Standard | ASTM D1209 ISO 6271 |
| Color Type | Transparent |
| Portability | Portable |
Documents
AF330 EBC Colour Scale
Description
Technical Data
Documents
Description
- Ensures Your Beer Production is Always Optimal
By measuring the colour of your beer, you can rest assured that your customers are always receiving the same colour of the drinks, reassuring them of the quality of your produce. The Lovibond® AF 330 is a special kit based on the Lovibond® Comparator 2000+ for visual colour grading according to EBC Colour over the range 2 – 27.
The colour is determined by matching the sample in a 25 mm optical glass cell with the precalibrated coloured glass filters. - Fast, Economical & Portable Visual Matching
The Comparator 2000+ is a flexible, modular system for Visual Colour Grading. Using a suitable comparator instrument and glass disc, you can quickly visually match the sample directly against the calibrated, colour stable glass standards. - Two-Field Vision for Accurate Results
Lovibond® comparator instruments include an integrated prism which causes the sample and comparison fields to overlap, allowing enhanced colour discrimination and matching. The prism is ultrasonically sealed to prevent contamination of the optics. Each individually graded glass standard represents a discrete step on the measurement range (as opposed to a continuous graduation), aiding colour discrimination and allowing great accuracy of results. - Ability to Guarantee Constant Lighting Conditions
An optional item for the Comparator 2000+ is the Daylight 2000 Lighting Unit. This is a standardized light source which guarantees you a constant lighting condition for accurate colour grading. This is particularly useful when the sample is very pale in colour. By using a Lovibond® lighting unit, you can confident of uniform lighting conditions for colour matching, 24 hours a day and irrespective of ambient lighting. - Extended Shelf Life
The unique feature of Lovibond® test discs is that they incorporate coloured glass standards that are colour stable and not affected by UV light or extreme environmental conditions.
Please note, we cannot guarantee compatibility of discontinued Lovibond® Comparator 1000 disks with the Lovibond® 2000+ Comparator.
Technical Data
| Applicable Standard | EBC Analytika |
| Color Type | Transparent |
| Portability | Portable |
Documents
AF332 EP Colour Scale (Ph Eur Method 2.2.2)
Description
Technical Data
Documents
Description
- All You Need to be Compliant to the EP Scale
The AF 332 is a self-contained kit providing everything you need to match pharmaceutical samples to the European Pharmacopoeia (PH Eur Method 2.2.2) Scale including the visual Lovibond® Comparator System 2000, five color-grading discs and two 40 mm cells. - Fast, Economical & Portable Visual Matching
The Comparator 2000+ is a flexible, modular system for Visual Color Grading. Using a suitable comparator instrument and glass disc, you can quickly visually match the sample directly against the calibrated, color stable glass standards. - Two-Field Vision for Accurate Results
Lovibond® comparator instruments include an integrated prism which causes the sample and comparison fields to overlap, allowing enhanced color discrimination and matching. The prism is ultrasonically sealed to prevent contamination of the optics. Each individually graded glass standard represents a discrete step on the measurement range (as opposed to a continuous graduation), aiding color discrimination and allowing great accuracy of results. - Ability to Guarantee Constant Lighting Conditions
An optional item for the Comparator 2000+ is the Daylight 2000 Lighting Unit. This is a standardized light source which guarantees you a constant lighting condition for accurate color grading. This is particularly useful when the sample is very pale in color. By using a Lovibond® lighting unit, you can confident of uniform lighting conditions for color matching, 24 hours a day and irrespective of ambient lighting. - Extended Shelf Life
The unique feature of Lovibond® test discs is that they incorporate colored glass standards that are color stable and not affected by UV light or extreme environmental conditions.
Please note, we cannot guarantee compatibility of discontinued Lovibond® Comparator 1000 disks with the Lovibond® 2000+ Comparator.
Technical Data
| Applicable Standard | Ph.Eur. 2.2.2 |
| Color Type | Transparent |
| Portability | Portable |
Documents
AF333 Iodine Colour Scale (DIN 6162)
Description
Technical Data
Documents
Description
- Everything You Need to Measure to The Iodine Color Scale (specified in DIN 6162)
The Iodine Color Scale varies from yellow to brown as defined by specified dilutions of an iodine solution, ranging from 1 for the lightest color to 500 for the darkest. It is used mainly in European countries for solvents, plasticisers, resins, oils and fatty acids. For color registering 1 or less on the Iodine Color scale, Platinum-Cobalt Units would be applicable. - Fast, Economical & Portable Visual Matching
The Comparator 2000+ is a flexible, modular system for Visual Color Grading. Using a suitable comparator instrument and glass disc, you can quickly visually match the sample directly against the calibrated, color stable glass standards. - Two-Field Vision for Accurate Results
Lovibond® comparator instruments include an integrated prism which causes the sample and comparison fields to overlap, allowing enhanced color discrimination and matching. The prism is ultrasonically sealed to prevent contamination of the optics. Each individually graded glass standard represents a discrete step on the measurement range (as opposed to a continuous graduation), aiding color discrimination and allowing great accuracy of results. - Ability to Guarantee Constant Lighting Conditions
An optional item for the Comparator 2000+ is the Daylight 2000 Lighting Unit. This is a standardized light source which guarantees you a constant lighting condition for accurate color grading. This is particularly useful when the sample is very pale in color. By using a Lovibond® lighting unit, you can confident of uniform lighting conditions for color matching, 24 hours a day and irrespective of ambient lighting. - Extended Shelf Life
The unique feature of Lovibond® test discs is that they incorporate colored glass standards that are color stable and not affected by UV light or extreme environmental conditions.
Please note, we cannot guarantee compatibility of discontinued Lovibond® Comparator 1000 disks with the Lovibond® 2000+ Comparator.
Technical Data
| Applicable Standard | DIN 6162 |
| Color Type | Transparent |
| Portability | Portable |
Documents
AF331 IFU Colour Scale
Description
Technical Data
Documents
Description
- Self-Contained Kit to Enable You to Measure the Color of Fruit Juices
Everything you need to measure fruit juice according to the IFU scale including discs which represent a portion of the scale and cells. - Fast, Economical & Portable Visual Matching
The Comparator 2000+ is a flexible, modular system for Visual Color Grading. Using a suitable comparator instrument and glass disc, you can quickly visually match the sample directly against the calibrated, color stable glass standards. - Two-Field Vision for Accurate Results
Lovibond® comparator instruments include an integrated prism which causes the sample and comparison fields to overlap, allowing enhanced color discrimination and matching. The prism is ultrasonically sealed to prevent contamination of the optics. Each individually graded glass standard represents a discrete step on the measurement range (as opposed to a continuous graduation), aiding color discrimination and allowing great accuracy of results. - Ability to Guarantee Constant Lighting Conditions
An optional item for the Comparator 2000+ is the Daylight 2000 Lighting Unit. This is a standardized light source which guarantees you a constant lighting condition for accurate color grading. This is particularly useful when the sample is very pale in color. By using a Lovibond® lighting unit, you can confident of uniform lighting conditions for color matching, 24 hours a day and irrespective of ambient lighting. - Extended Shelf Life
The unique feature of Lovibond® test discs is that they incorporate colored glass standards that are color stable and not affected by UV light or extreme environmental conditions.
Please note, we cannot guarantee compatibility of discontinued Lovibond® Comparator 1000 disks with the Lovibond® 2000+ Comparator.
Technical Data
| Applicable Standard | 3. Ber. Int. Fruit Juice 1961 |
| Color Type | Transparent |
| Portability | Portable |
Documents
AF334
Description
Technical Data
Documents
Description
- Enables You to Easily Measure Color According to the Gardner Scale
All you need to do is rotate the disc to get the closest result to the scale. - Fast, Economical & Portable Visual Matching
The Comparator 2000+ is a flexible, modular system for Visual Color Grading. Using a suitable comparator instrument and glass disc, you can quickly visually match the sample directly against the calibrated, color stable glass standards. - Two-Field Vision for Accurate Results
Lovibond® comparator instruments include an integrated prism which causes the sample and comparison fields to overlap, allowing enhanced color discrimination and matching. The prism is ultrasonically sealed to prevent contamination of the optics. Each individually graded glass standard represents a discrete step on the measurement range (as opposed to a continuous graduation), aiding color discrimination and allowing great accuracy of results. - Ability to Guarantee Constant Lighting Conditions
An optional item for the Comparator 2000+ is the Daylight 2000 Lighting Unit. This is a standardized light source which guarantees you a constant lighting condition for accurate color grading. This is particularly useful when the sample is very pale in color. By using a Lovibond® lighting unit, you can confident of uniform lighting conditions for color matching, 24 hours a day and irrespective of ambient lighting. - Extended Shelf Life
The unique feature of Lovibond® test discs is that they incorporate colored glass standards that are color stable and not affected by UV light or extreme environmental conditions.
Please note, we cannot guarantee compatibility of discontinued Lovibond® Comparator 1000 disks with the Lovibond® 2000+ Comparator.
- Enables You to Easily Measure Color According to the Gardner Scale
Technical Data
| Applicable Standard | ASTM D1544 ASTM D6166 |
| Color Type | Transparent Translucent |
| Portability | Portable |
Documents
AF335 USP Color Scale
Description
Technical Data
Documents
Description
- Everything You Need to Grade Pharmaceutical Solutions According to USP Color
This kit includes four color-grading discs, each containing stable-colored glass standards that represent a portion of the US Pharmacopoeia Color scale. The sample (in a 40 mm glass cell) is viewed in a Lovibond® Comparator 2000+ with the appropriate test disc until a color match is obtained. - Fast, Economical & Portable Visual Matching
The Comparator 2000+ is a flexible, modular system for Visual Color Grading. Using a suitable comparator instrument and glass disc, you can quickly visually match the sample directly against the calibrated, color stable glass standards. - Two-Field Vision for Accurate Results
Lovibond® comparator instruments include an integrated prism which causes the sample and comparison fields to overlap, allowing enhanced color discrimination and matching. The prism is ultrasonically sealed to prevent contamination of the optics. Each individually graded glass standard represents a discrete step on the measurement range (as opposed to a continuous graduation), aiding color discrimination and allowing great accuracy of results. - Ability to Guarantee Constant Lighting Conditions
An optional item for the Comparator 2000+ is the Daylight 2000 Lighting Unit. This is a standardized light source which guarantees you a constant lighting condition for accurate color grading. This is particularly useful when the sample is very pale in color. By using a Lovibond® lighting unit, you can confident of uniform lighting conditions for color matching, 24 hours a day and irrespective of ambient lighting. - Supports Multiple Path Lengths
The standard Comparator 2000+ is a short path length instrument (up to 40 mm) to be used with relatively dark colors. Nessleriser systems are longer path length instruments to enable you to match a column of sample in a glass cylinder of appropriate path length. They are designed for measuring unsaturated samples that are below the sensitivity of the Comparator 2000. - Extended Shelf Life
The unique feature of Lovibond® test discs is that they incorporate colored glass standards that are color stable and not affected by UV light or extreme environmental conditions. - One Instrument – 100’s of Discs
There are literally hundreds of glass discs available for you to chose from: ranging from the more standard scales such as the EBC (European Brewing Convention) scale to more obscure scales or even bespoke scales that we have made for customers. No challenge is too great.
Integrated Kits for On-Site, Immediate Use
For several scales, we also provide integrated kits containing everything you need to start measuring straight from the box.
Please note, we cannot guarantee compatibility of discontinued Lovibond® Comparator 1000 disks with the Lovibond® 2000+ Comparator.
Technical Data
| Applicable Standard | USP 631 |
| Color Type | Transparent |
| Portability | Portable |
Documents
Comparator Colour Discs
Description
Product
Description
- Easy to use, visual assessment of colour – simply rotate disc for colour match
- Glass fade-free standards for longevity of use
- Optional lighting units for guaranteed lighting conditions 24 hours a day
- Optional Nessleriser systems for longer path lengths
Product
Customised disc for Comparator System 2000 & SVS | |||
4/6 Sand Color Disc | |||
4/7C Acid Wash Test Disc | |||
4/9 Resazurin Test Disc (rapid test for bacterial content) | |||
4/10 Phosphatase Disc | |||
4/11 Shellac Bleached Disc | |||
4/11A Shellac A.P.S.H.A. Disc | |||
4/11B Shellac A.P.S.H.B Disc | |||
4/13 Phosphatase in Milk Disc (rapid test for efficiency of pasteurization) | |||
4/14A EBC Color Scale Disc | |||
4/14B EBC Color Scale Disc | |||
4/14C EBC Color Scale Disc | |||
4/14D EBC Color Scale Disc | |||
4/14AB EBC Single Disc | |||
4/17 Lactic acid in Milk Disc (test for estimating shelf-life) | |||
4/19A Rubber Latex Disc | |||
4/19B Rubber Latex Disc | |||
4/28A Hazen Scale Disc | |||
4/30AS Gardner Scale Disc | |||
4/30BS Gardner Scale Disc | |||
4/33 Anti Icing Additive Disc | |||
4/36 Barrett Scale Disc | |||
4/43A Quinizarin in Marked Oils, Roadside Test | |||
4/43B Quinizarin in Marked Oils, Warehouse Test | |||
4/44A Anti-Icing Additive Disc | |||
4/45 Sugar in Potatoes Disc | |||
4/46 Insoluble Content of Diesel Engine Oil Disc | |||
4/50 IFU Disc | |||
4/48 IFU Disc | |||
4/49 IFU Disc | |||
4/55 Honey Disc | |||
4/56A Series 52 Disc | |||
4/56B Series 52 Disc | |||
4/56C Series 52 Disc | |||
4/57 Iodine Disc | |||
4/58 Iodine Disc | |||
4/59 Iodine Disc | |||
4/60 Iodine Disc | |||
4/62 Dichromate Disc 1 | |||
4/63 Dichromate Disc 2 | |||
4/64A EP Disc, R1 – R7 | |||
4/64B EP Disc, Y1 – Y7 | |||
4/64C EP Disc, B1 – B9 | |||
4/64D EP Disc, BY1 – BY7 | |||
4/64E EP Disc, GY1 – GY7 | |||
4/66A USP Disc, A – E | |||
4/66B USP Disc, F – J | |||
4/66C USP Disc, K – O | |||
4/72 Euromarker in Clean Diesel, Warehouse Test | |||
4/73 Euromarker in Clean Diesel, Roadside Test | |||
5/4 Icterus Index Disc | |||
5/6 Phenylpyruvic Acid Disc | |||
5/14 Phosphate in Blood Disc | |||
5/18A pH of Blood Disc | |||
4/66D USP Disc, P – T | |||
4/71 Euromarker in kerosene, Warehouse Test | |||
5/18B pH of Blood Disc | |||
5/32 Sulphobromophthalein Retention Disc | |||
5/40X Haemoglobin Content of Blood Disc | |||
5/43 Urea in Blood Disc | |||
5/44 PSP Disc | |||
