DiluFlow Gravimetric dilutor 3 kg
Ref 501 103 (single pump)
Ref 501 203 (double pump)
The DiluFlow automatically dilutes a solid sample in seconds, with the appropriate weight of diluent, and all traceability is guaranteed.
- 225 mL in 10 s
- Dilution factor: 1/2 to 1/99
- Dilution accuracy: > 99%*
- Max weight: 3000 g
| DiluFlow 3 kg (single pump) | DiluFlow 3 kg (double pump) | |
| Reference | 501 103 | 501 203 |
| BagOpen height < 30 cm | ✔ | ✔ |
| Removable drip tray (patented) | ✔ | ✔ |
| BagOpen with GeckoGrip system (patented) | ✔ | ✔ |
| Magnetic stand for BagOpen (patented shape) | ✔ | ✔ |
| LightCode: color status LED | ✔ | ✔ |
| Compatible with booster kit | ✔ | ✔ |
| 304L stainless steel body | ✔ | ✔ |
| Stainless casting electromechanical core | ✔ | ✔ |
| Resolution up to 200 g | 0.01 g | |
| Weighing range | 0.1 to 3000 g | |
| Max weight without support | 4500 g | |
| Weighing accuracy | 0 g to 100 g : ± 0.05 g / 100 g to 3000 g : ± 0.1% | |
| Minimum weight required for dilution | 5 g | |
| Minimum weight required for distribution | 5 g | |
| Dilution factor | 1/2 to 1/99 | |
| Dilution/distribution accuracy | > 99% in Standard or Accurate mode (in optimal conditions) | |
| Dilution time for a 25g sample diluted to 1/10 | < 9 s (with booster kit in Fast mode) | |
| Distribution time for 90 mL | < 7 s (with booster kit in Fast mode) | |
| Distribution time for 225 mL | < 10 s (with booster kit in Fast mode) | |
| Max number of pumps | 2 integrated | |
| Dilution/distribution mode | Fast / Standard / Accurate | |
| Traceability | Printer / Supervision software (export to ExcelTM / OpenOfficeTM, CSV file, printer) | |
| Exported data | Sample weight / Total weight / Dilution factor / Dilution accuracy / Right or left pump + with supervision software: Sample number / Name of operator / Date / Time | |
| Connection | RS232 output for printer / USB port for computer / Jack output for foot pedal connection | |
| Net weight | 10.1 kg | 12.5 kg |
| Dimensions (w x d x h) | 31.3 x 43.7 x 39.4 cm | 37 x 43.7 x 39.4 cm |
| Box (w x d x h) | 55 x 55 x 40.5 cm | |
| Gross weight | 16.1 kg | 18.6 kg |
| Language | English | |
| Voltage – Frequencies | 100-240 V~ 50/60 Hz | |
| Fuses | T3.15A L 250V 5×20 mm | |
| Power | 60 W | |
| International protection marking | 22 | |
| Warranty | 1 year | |
| In compliance with | ISO 7218 – ISO 6887 | |
 | Delivered with: 1 distribution arm, 1 drip tray 400, 1 or 2 pumps, 1 distribution assembly (GL45 – Ø 6.4 mm) per pump, 1 USB cable, 1 supervision software, 1 power cord, 1 BagOpen 400 for dilutor, 1 user’s manual, 1 conformity certificate / warranty card, 10 GeckoGrip, 1 pack of adhesive putty, blender bags samples | |
User-friendly and efficient
With the press of only 2 keys, the DiluFlow gravimetric dilutor provides an accurate dilution of all types of samples from 5 to 300 g (at 1/10th). In compliance with ISO 7218 and ISO 6887.
Ultra-low profile
Widest possible opening for the bag and lowest loading threshold on the market! With redesigned ergonomics, the ultra-low profile allows optimal comfort of use, especially under a laminar flow hood.
Removable drip tray
In case of splashing, the drain tray is removable for rinsing and avoids tedious cleaning.
PATENTED
GeckoGrip holding system
This patented system replaces the adhesive putty and keeps the analysis bag glue-free, even on a wet surface.
PATENTED
Traceability of results
DiluFlow exports the analysis data to the printer and to the supervision software (Export data to ExcelTM, Open OfficeTM, CSV file, printer).
LightCode
LightCode is a bright and intuitive indicator of the status of dilution. It allows you to check the accuracy at a glance.
Green Orange Red Blue
Accuracy > 98% Accuracy > 95% Accuracy < 95% Scale stabilizing
Magnetic BagOpen
The shape of the bag rack allows easy and ergonomic insertion of the bag. Its attachment by 2 magnetic points ensures a better distribution of the weight of the sample and contributes to the stability of the weighing platform.
PATENTED SHAPE
Applications
The DiluFlow gravimetric dilutor is used for microbiological analyses in the food, environmental industries and public institutes research. It is used for the preparation of samples before their quality analysis for the control of raw materials, the control of products in production and the control of the finished products.
Printer – Prints all data, Paper 521 110, Labels 521 012, Film 410 130, Ref 410 150
Foot pedal – For hands-free dispensing. Connection with a 3.5 mm Jack. Ref 507 008
Bar-code reader (1) – For total traceability of the samples. Ref 522 000
Handy gun (1) – For high precision work and comfortable tube handling. Ref 561 001
Booster kit – Accelerate the dispensing speed up to 225 mL/8 s. Ref 511 000
Pump module (1) – External module with single pump + silicone tubings for pump head (inner Ø 6.4 mm). Ref 505 007
Jumbo kit (2) – BagOpen® 3500 + 3500 mL DripTray + anti-splash nozzle. Ref 505 006
5L bottle (GL45) – 5 L autoclavable bottle. Ref 513 001
Independent stand for broth bags. To easily store diluent bags. Ref 513 015
Integrable stand for broth bags. Integrated to the unit, to hold one broth bag. Ref 505 010
Trocar – 316 L stainless steel trocar for broth bags. Ref 513 020
6 nozzles holder (1) + Protection nozzles. Can hold up to 6 nozzles. Ref 505 008
Adjustable distribution system (3). Ideal to fill various containers. Ref 505 004
Adjustable distribution system (4). Ideal to fill various containers. Ref 505 005
Weighing platform – To weigh and support a container. Ref 505 002
Tongs platform – To hold a tube (Ø 10 to 60 mm). Ref 505 003
GeckoGrip – Set of 10 adhesives for BagOpen®. Ref 505 009
PTFE filters 0.2 µm – (Ø 25 mm) Set of 5 autoclavable filters for GL45 bottles. Ref 513 023
Nozzle – Set of 5 stainless steel nozzles for tubings (inner Ø 4.8 to 8 mm). Ref 513 024
Nozzle – Set of 5 stainless steel nozzles for tubings (inner Ø 1.6 to 3.2 mm). Ref 513 040
Tube weight (Ø 6 mm) – Set of 5 tube weights. Ref 513 039
Certified standard weight (500 g) – 500 g COFRAC calibrated weight, type F1. Ref 513 005
Tubings:
Distribution set for single pump Sales unit
Ref 513 045 Dispensing assembly inner Ø 3.2 mm …………………………… 1
Ref 513 043 Dispensing assembly inner Ø 6.4 mm …………………………… 1
Distribution set for booster kit Sales unit
Ref 513 008 Booster kit dispensing assembly inner Ø 3.2 mm ……………. 1
Ref 513 041 Booster kit dispensing assembly inner Ø 6.4 mm ……………. 1
Silicone tubings for single pump Sales unit
Ref 513 047 Silicone tubings
inner Ø 3.2 mm …………………… 5
Ref 513 044 Silicone tubings
inner Ø 6.4 mm …………………… 5
Silicone tubings for pump head Sales unit
Ref 561 302 Silicone tubings
for pump inner Ø 3.2 mm ……….. 6
Ref 561 304 Silicone tubings
for pump inner Ø 6.4 mm ………… 6
Silicone tubings for booster kit Sales unit
Ref 513 009 Silicone tubings for
booster kit inner Ø 3.2 mm ………. 5
Ref 513 042 Silicone tubings for
booster kit inner Ø 6.4 mm ……… 5
DiluFlow Pro Gravimetric dilutor 5 kg
Ref 502 105 (single pump)
Ref 502 205 (double pump)
The DiluFlow Pro automatically dilutes a solid sample in seconds, with the appropriate weight of diluent, up to a total weight of 5 kg. Its robotic arm enables easy work under a laminar flow cabinet.
- 225 mL in 10 s
- Dilution factor: 1/2 to 1/99
- Dilution accuracy: > 99%*
- Max weight: 5000 g
| DiluFlow Pro 5 kg (single pump) | DiluFlow Pro 5 kg (double pump) | |
| Reference | 502 105 | 502 205 |
| BagOpen height < 30 cm | ✔ | ✔ |
| Removable drip tray (patented) | ✔ | ✔ |
| BagOpen with GeckoGrip system (patented) | ✔ | ✔ |
| Magnetic stand for BagOpen (patented shape) | ✔ | ✔ |
| LightCode: color status LED | ✔ | ✔ |
| Compatible with booster kit | ✔ | ✔ |
| 304L stainless steel body | ✔ | ✔ |
| Stainless casting electromechanical core | ✔ | ✔ |
| Robotic arm | ✔ | ✔ |
| Compatible with Jumbo kit | ✔ | ✔ |
| Protection for tubing nozzle | ✔ | ✔ |
| Resolution up to 200 g | 0.01 g | |
| Weighing range | 0.1 to 5000 g | |
| Max weight without support | 7000 g | |
| Weighing accuracy | 0 g to 100 g : ± 0.05 g / 100 g to 5000 g : ± 0.1% | |
| Minimum weight required for dilution | 5 g | |
| Minimum weight required for distribution | 5 g | |
| Dilution factor | 1/2 to 1/99 | |
| Dilution/distribution accuracy | > 99% in Standard or Accurate mode (in optimal conditions) | |
| Dilution time for a 25g sample diluted to 1/10 | < 9 s (with booster kit in Fast mode) | |
| Dilution time for a 375g sample diluted to 1/10 | < 80 s (with booster kit in Fast mode) | |
| Distribution time for 90 mL | < 7 s (with booster kit in Fast mode) | |
| Distribution time for 225 mL | < 10 s (with booster kit in Fast mode) | |
| Max number of pumps | 2 integrated | |
| Dilution/distribution mode | Fast / Standard / Accurate | |
| Traceability | Printer / Supervision software (export to ExcelTM/ OpenOfficeTM, CSV file, printer) | |
| Exported data | Sample weight / Total weight/ Dilution factor / Dilution accuracy / Right or left pump + with supervision software: sample number / Name of operator / Date / Time | |
| Connection | RS232 output for printer / USB port for computer / Jack output for foot pedal connection | |
| Net weight | 12.3 kg | 14.8 kg |
| Dimensions (w x d x h) | 31.3 x 42.1 x 37.7 cm | 37 x 42.1 x 37.7 cm |
| Box (w x d x h) | 55 x 55 x 40.5 cm | |
| Gross weight | 18.1 kg | 21.2 kg |
| Language | English | |
| Voltage – Frequencies | 100-240 V~ 50/60 Hz | |
| Fuses | T3.15A L 250V 5×20 mm | |
| Power | 60 W | |
| International protection marking | 32 | |
| Warranty | 1 year | |
| In compliance with | ISO 7218 – ISO 6887 | |
| Delivered with: 1 drip tray 400, 1 or 2 pumps, 1 protection for distribution nozzle, 1 distribution assembly (GL45 – Ø 6.4 mm) per pump, 1 USB cable , 1 supervision software, 1 power cord, 1 BagOpen 400 for dilutors, 1 user’s manual, 1 conformity certificate / warranty card, 10 GeckoGrip, 1 pack of adhesive putty, 1 Allen wrench, blender bags samples | |
User-friendly and efficient
With the press of only 2 keys, the DiluFlow Pro gravimetric dilutor provides an accurate dilution of all types of samples from 10 to 375 g (at 1/10th). In compliance with ISO 7218 and ISO 6887.
Robotic arm and protective plate
The robotic arm enables you to place the sample safely in the bag without risk of cross contamination. Tested for over 1.3 million cycles, its reliability is guaranteed. The protective plate protects the beaker from contact with the sample.
Ultra-low profile
Widest possible opening for the bag and lowest loading threshold on the market! With redesigned ergonomics, the ultra-low profile allows optimal comfort of use, especially under a laminar flow hood.
Removable drip tray
In case of splashing, the drain tray is removable for rinsing and avoids tedious cleaning.
PATENTED
GeckoGrip holding system
This patented system replaces adhesive putty and keeps the analysis bag glue-free, even on a wet surface.
PATENTED
Traceability of results
The DiluFlow Pro exports the analysis data to the printer and to the supervision software (Export data to ExcelTM, Open OfficeTM, CSV file, printer).
LightCode
LightCode is a bright and intuitive indicator of the status of dilution. It allows you to check the accuracy at a glance.
Green Orange Red Blue
Accuracy > 98% Accuracy > 95% Accuracy < 95% Scale stabilizing
Magnetic BagOpen
The shape of the bag rack allows easy and ergonomic insertion of the bag. Its attachment by 2 magnetic points ensures a better distribution of the weight of the sample and contributes to the stability of the weighing platform.
PATENTED SHAPE
Applications
The DiluFlow Pro gravimetric dilutor is used for microbiological analyses in the food, environmental industries and public institutes researches. It is used for the preparation of samples before their quality analysis for the control of raw materials, the control of products in production and the control of the finished products.
Printer – Prints all data, Paper 521 110, Labels 521 012, Film 410 130, Ref 410 150
Foot pedal – For hands-free dispensing. Connection with a 3.5 mm Jack. Ref 507 008
Bar-code reader (1) – For total traceability of the samples. Ref 522 000
Handy gun (1) – For high precision work and comfortable tube handling. Ref 561 001
Booster kit – Accelerate the dispensing speed up to 225 mL/8 s. Ref 511 000
Pump module (1) – External module with single pump + silicone tubings for pump head (inner Ø 6.4 mm). Ref 505 007
Jumbo kit (2) – BagOpen® 3500 + 3500 mL DripTray + anti-splash nozzle. Ref 505 006
5L bottle (GL45) – 5 L autoclavable bottle. Ref 513 001
Independent stand for broth bags. To easily store diluent bags. Ref 513 015
Integrable stand for broth bags. Integrated to the unit, to hold one broth bag. Ref 505 010
Trocar – 316 L stainless steel trocar for broth bags. Ref 513 020
6 nozzles holder (1) + Protection nozzles. Can hold up to 6 nozzles. Ref 505 008
Adjustable distribution system (3). Ideal to fill various containers. Ref 505 004
Adjustable distribution system (4). Ideal to fill various containers. Ref 505 005
Weighing platform – To weigh and support a container. Ref 505 002
Tongs platform – To hold a tube (Ø 10 to 60 mm). Ref 505 003
GeckoGrip – Set of 10 adhesives for BagOpen®. Ref 505 009
PTFE filters 0.2 µm – (Ø 25 mm) Set of 5 autoclavable filters for GL45 bottles. Ref 513 023
Nozzle – Set of 5 stainless steel nozzles for tubings (inner Ø 4.8 to 8 mm). Ref 513 024
Nozzle – Set of 5 stainless steel nozzles for tubings (inner Ø 1.6 to 3.2 mm). Ref 513 040
Tube weight (Ø 6 mm) – Set of 5 tube weights. Ref 513 039
Certified standard weight (500 g) – 500 g COFRAC calibrated weight, type F1. Ref 513 005
Tubings:
Distribution set for single pump Sales unit
Ref 513 045 Dispensing assembly inner Ø 3.2 mm …………………………… 1
Ref 513 043 Dispensing assembly inner Ø 6.4 mm …………………………… 1
Distribution set for booster kit Sales unit
Ref 513 008 Booster kit dispensing assembly inner Ø 3.2 mm ……………. 1
Ref 513 041 Booster kit dispensing assembly inner Ø 6.4 mm ……………. 1
Silicone tubings for single pump Sales unit
Ref 513 047 Silicone tubings
inner Ø 3.2 mm …………………… 5
Ref 513 044 Silicone tubings
inner Ø 6.4 mm …………………… 5
Silicone tubings for pump head Sales unit
Ref 561 302 Silicone tubings
for pump inner Ø 3.2 mm ……….. 6
Ref 561 304 Silicone tubings
for pump inner Ø 6.4 mm ………… 6
Silicone tubings for booster kit Sales unit
Ref 513 009 Silicone tubings for
booster kit inner Ø 3.2 mm ………. 5
Ref 513 042 Silicone tubings for
booster kit inner Ø 6.4 mm ……… 5
DiluFlow Elite 5 kg Gravimetric dilutor 5 kg
Ref 503 105 (single pump)
Ref 503 205 (double pump)
The DiluFlow Elite automatically dilutes a solid sample in seconds, with the appropriate weight of diluent, up to a total weight of 5 kg. Its full traceability enables the recording of all operations. It is programmable and connectable for up to 6 diluents and offers the best solution to dilute any type of sample.
- 225 mL in 8 seconds
- Dilution factor: 1/2 to 1/1000, customizable fractions
- Dilution accuracy: > 99 %*
- Max weight: 5000 g
- Max number of pumps: 2 integrated + 4 external
| DiluFlow Elite 5 kg (single pump) | DiluFlow Elite 5 kg (double pump) | |
| Reference | 503 105 | 503 205 |
| BagOpen height < 30 cm |  | |
| Removable drip tray (patented) | | |
| BagOpen with GeckoGrip system (patented) | | |
| Magnetic stand for BagOpen (patented shape) | | |
| LightCode: color status LED | | |
| Compatible with booster kit | | |
| 304L stainless steel body | | |
| Stainless casting electromechanical core | | |
| Robotic arm | | |
| Compatible with Jumbo kit | | |
| Protection for tubing nozzle | | |
| Up to 6 pumps | | |
| Multi-dispensing mode (patented) | | |
| Powder mode | | |
| 24 editable programs | | |
| Bidirectional connectivity | | |
| Auto-tare function | | |
| Weighing mode | | |
| Resolution up to 200 g | 0.01 g | |
| Weighing range | 0.1 to 5000 g | |
| Max weight without support | 7000 g | |
| Weighing accuracy | 0 g to 100 g: ± 0.05 g / 100 g to 5000 g: ± 0.1% | |
| Minimum weight required for dilution | 5 g | |
| Minimum weight required for distribution | 5 g | |
| Dilution factor | 1/2 to 1/1000, customizable fractions | |
| Dilution/distribution accuracy | > 99% in Standard or Accurate mode (in optimal conditions) | |
| Dilution time for a 25g sample diluted to 1/10 | < 8 s (with booster kit in Fast mode) | |
| Dilution time for a 375g sample diluted to 1/10 | < 75 s (with booster kit in Fast mode) | |
| Distribution time for 90 mL | < 6 s (with booster kit in Fast mode) | |
| Distribution time for 225 mL | < 9 s (with booster kit in Fast mode) | |
| Max number of pumps | 2 integrated + 4 external | |
| Dilution/distribution mode | Fast / Standard / Accurate | |
| Traceability | Printer / Export to ExcelTM file / CSV file Export on USB key / LIMS | |
| Exported data | Sample weight / Total weight / Dilution factor / Dilution accuracy / Diluent / Sample number / Diluent lot number / Date / Time / Last calibration date / Name of operator / Name of program | |
| Connection | 2 USB ports (type A) to connect a printer, keyboard, bar-code reader, USB key / 1 USB port (type B) to connect a computer / Jack socket to connect a foot pedal / Handy gun / Ethernet connection for LIMS | |
| Net weight | 12.8 kg | 15.3 kg |
| Dimensions (w x d x h) | 31.3 x 42.1 x 37.7 cm | 37 x 42.1 x 37.7 cm |
| Box (w x d x h) | 55 x 55 x 53 cm | |
| Gross weight | 18.8 kg | 21.4 kg |
| Language | English, French | |
| Voltage – Frequencies | 100-240 V~ 50/60 Hz | |
| Fuses | T3.15A L 250V 5×20 mm | |
| Power | 60 W | |
| International protection marking | 32 | |
| Warranty | 1 year | |
| In compliance with | ISO 7218 – ISO 6887 | |
| Delivered with: 1 drip tray 400, 1 or 2 pumps, 1 protection for distribution nozzle, 1 distribution assembly (GL45 – Ø 6,4 mm) per pump, 1 USB key, 1 USB cable, 1 power cord, 1 BagOpen 400 for diluters, 1 user’s manual, 1 conformity certificate / warranty card, 10 GeckoGrip, 1 pack of adhesive putty, 1 Allen wrench, blender bags samples | |
High accuracy
The DiluFlow Elite enables an accurate dilution of all types of samples from 10 to 375 g (at 1/10th) with an accuracy > 99% . The unit is in conformity with ISO 7218 and ISO 6887 standards.
Robotic arm and protective plate
The robotic arm enables you to place the sample safely in the bag without risk of cross contamination. Tested for over 1.3 million cycles, its reliability is guaranteed. The protective plate protects the beaker from contact with the sample.
Connectivity and full traceability
The DiluFlow Elite is programmable through its 24 customizable programs. Traceability is ensured by a bidirectional LIMS ethernet connection. DiluFlow Elite exports the analyses data to printer, USB key, ExcelTM, Open OfficeTM, CSV and LIMS.
Ultra-low profile
Widest possible opening for the bag and lowest loading threshold on the market! With redesigned ergonomics, the ultra-low profile allows optimal comfort of use, especially under a laminar flow hood.
Removable drip tray
In case of splashing, the drain tray is removable for rinsing and avoids tedious cleaning.
PATENTED
GeckoGrip holding system
This patented system replaces adhesive putty and keeps the analysis bag glue-free, even on a wet surface.
PATENTED
Powder Mode
The DiluFlow Elite, with the JumboKit option, offers an automated protocol for all samples with a low aw-value (Water Activity) according to ISO 6887: milk powders, dehydrated products, cereals…
LightCode
LightCode is a bright and intuitive indicator of the status of dilution. It allows you to check the accuracy at a glance.
Green
Accuracy > 98%
Orange
Accuracy > 95%
Red
Accuracy < 95%
Blue
Scale stabilizing
Autotare Function
Multi-distribution mode
Magnetic BagOpen
Up to 6 diluents
Applications
The DiluFlow Elite 5 Kg gravimetric dilutor is used for microbiological analyses in the food, environmental industries and public institutes research. It is used for the preparation of samples before their quality analysis for the control of raw materials, the control of products in production, and the control of finished products.
Printer – Prints all data, Paper 521 110, Labels 521 012, Film 410 130, Ref 410 150
Foot pedal – For hands-free dispensing. Connection with a 3.5 mm Jack. Ref 507 008
Bar-code reader (1) – For total traceability of the samples. Ref 522 000
Handy gun (1) – For high precision work and comfortable tube handling. Ref 561 001
Booster kit – Accelerate the dispensing speed up to 225 mL/8 s. Ref 511 000
Pump module (1) – External module with single pump + silicone tubings for pump head (inner Ø 6.4 mm). Ref 505 007
Jumbo kit (2) – BagOpen® 3500 + 3500 mL DripTray + anti-splash nozzle. Ref 505 006
5L bottle (GL45) – 5 L autoclavable bottle. Ref 513 001
Independent stand for broth bags. To easily store diluent bags. Ref 513 015
Integrable stand for broth bags. Integrated to the unit, to hold one broth bag. Ref 505 010
Trocar – 316 L stainless steel trocar for broth bags. Ref 513 020
6 nozzles holder (1) + Protection nozzles. Can hold up to 6 nozzles. Ref 505 008
Adjustable distribution system (3). Ideal to fill various containers. Ref 505 004
Adjustable distribution system (4). Ideal to fill various containers. Ref 505 005
Weighing platform – To weigh and support a container. Ref 505 002
Tongs platform – To hold a tube (Ø 10 to 60 mm). Ref 505 003
GeckoGrip – Set of 10 adhesives for BagOpen®. Ref 505 009
PTFE filters 0.2 µm – (Ø 25 mm) Set of 5 autoclavable filters for GL45 bottles. Ref 513 023
Nozzle – Set of 5 stainless steel nozzles for tubings (inner Ø 4.8 to 8 mm). Ref 513 024
Nozzle – Set of 5 stainless steel nozzles for tubings (inner Ø 1.6 to 3.2 mm). Ref 513 040
Tube weight (Ø 6 mm) – Set of 5 tube weights. Ref 513 039
Certified standard weight (500 g) – 500 g COFRAC calibrated weight, type F1. Ref 513 005
Tubings:
Distribution set for single pump Sales unit
Ref 513 045 Dispensing assembly inner Ø 3.2 mm …………………………… 1
Ref 513 043 Dispensing assembly inner Ø 6.4 mm …………………………… 1
Distribution set for booster kit Sales unit
Ref 513 008 Booster kit dispensing assembly inner Ø 3.2 mm ……………. 1
Ref 513 041 Booster kit dispensing assembly inner Ø 6.4 mm ……………. 1
Silicone tubings for single pump Sales unit
Ref 513 047 Silicone tubings
inner Ø 3.2 mm …………………… 5
Ref 513 044 Silicone tubings
inner Ø 6.4 mm …………………… 5
Silicone tubings for pump head Sales unit
Ref 561 302 Silicone tubings
for pump inner Ø 3.2 mm ……….. 6
Ref 561 304 Silicone tubings
for pump inner Ø 6.4 mm ………… 6
Silicone tubings for booster kit Sales unit
Ref 513 009 Silicone tubings for
booster kit inner Ø 3.2 mm ………. 5
Ref 513 042 Silicone tubings for
booster kit inner Ø 6.4 mm ……… 5

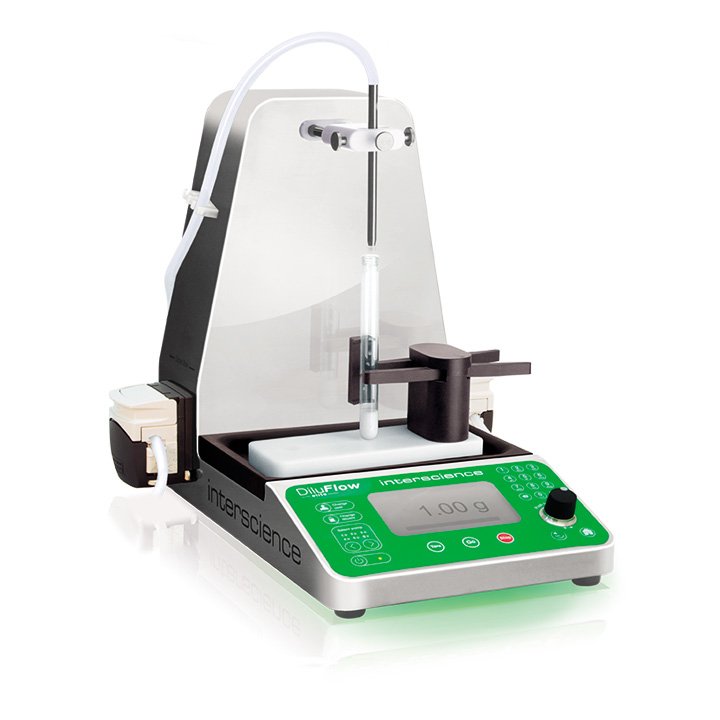

DiluFlow Elite 1 kg Gravimetric dilutor 1 kg
Ref. 503 101 (single pump)
Ref. 503 201 (double pump)
COSMETIC PACK
Tongs platform – ref 505 003
Adjustable distribution system – ref 505 005
Dispensing assembly (GL45 – Ø 3.2 mm) – ref 513 045
The DiluFlow Elite automatically dilutes a solid sample in seconds, with the appropriate weight of diluent, up to a total weight of 1000 g. It offers the best solution to prepare your samples in the pharmaceutical and cosmetic industries, as well as animal health. Its full traceability enables the recording of all operations.
- 225 mL in 8 seconds
- Dilution factor: 1/2 to 1/1000, customizable fractions
- Dilution accuracy: > 99%*
- Max weight: 1000 g
- Max number of pumps: 2 integrated + 4 external
SPECIFICATIONS
| DiluFlow Elite 1 kg (single pump) | DiluFlow Elite 1 kg (double pump) | |
| Reference | 503 101 | 503 201 |
| BagOpen height < 30 cm | ✔ | ✔ |
| Removable drip tray (patented) | ✔ | ✔ |
| BagOpen with GeckoGrip system (patented) | ✔ | ✔ |
| Magnetic stand for BagOpen (patented shape) | ✔ | ✔ |
| LightCode: color status LED | ✔ | ✔ |
| Compatible with booster kit | ✔ | ✔ |
| 304L stainless steel body | ✔ | ✔ |
| Stainless casting electromechanical core | ✔ | ✔ |
| Robotic arm | ✔ | ✔ |
| Protection for tubing nozzle | ✔ | ✔ |
| Up to 6 pumps | ✔ | ✔ |
| Multi-dispensing mode (patented) | ✔ | ✔ |
| Powder mode | ✔ | ✔ |
| 24 editable programs | ✔ | ✔ |
| Bidirectional connectivity | ✔ | ✔ |
| Auto-tare function | ✔ | ✔ |
| Weighing mode | ✔ | ✔ |
| 1 g dilution to 1/10 | ✔ | ✔ |
| Resolution up to 200 g | 0.01 g | |
| Weighing range | 0.1 to 1000 g | |
| Max weight without support | 1500 g | |
| Weighing accuracy | 0 g to 20 g : ± 0.01 g / 20 g to 1000 g : ± 0.1% | |
| Minimum weight required for dilution | 0.5 g (with a dilution factor of 10) | |
| Minimum weight required for distribution | 5 g | |
| Dilution factor | 1/2 to 1/1000, customizable fractions | |
| Dilution/distribution accuracy | > 99% in Standard or Accurate mode (in optimal conditions) | |
| Dilution time for a 25g sample diluted to 1/10 | < 8 s (with booster kit in Fast mode) | |
| Distribution time for 90 mL | < 6 s (with booster kit in Fast mode) | |
| Distribution time for 225 mL | < 9 s (with booster kit in Fast mode) | |
| Max number of pumps | 2 integrated + 4 external | |
| Dilution/distribution mode | Fast / Standard / Accurate | |
| Traceability | Printer / Export to ExcelTM file / CSV file Export on USB key / LIMS | |
| Exported data | Sample weight / Total weight / Dilution factor / Dilution accuracy / Diluent / Sample number / Diluent lot number / Date / Time / Last calibration date / Name of operator / Name of program | |
| Connection | 2 USB ports (type A) to connect a printer, keyboard, bar-code reader, USB key / 1 USB port (type B) to connect a printer / Jack socket to connect a foot pedal / Handy gun / Ethernet connection for LIMS | |
| Net weight | 12.9 kg | 15.2 kg |
| Dimensions (w x d x h) | 31,3 x 42,1 x 37,7 cm | 37 x 42.1 x 37.7 cm |
| Box (w x d x h) | 55 x 55 x 53 cm | |
| Gross weight | 18.8 kg | 21.9 kg |
| Language | English, French | |
| Voltage – Frequencies | 100-240 V~ 50/60 Hz | |
| Fuses | T3.15A L 250V 5×20 mm | |
| Power | 60 W | |
| International protection marking | 32 | |
| Warranty | 1 year | |
| In compliance with | ISO 7218 – ISO 6887 | |
| Delivered with: 1 drip tray 400, 1 or 2 pumps, 1 protection for distribution nozzle, 1 distribution assembly (GL45 – Ø 3.2 mm) per pump, 1 USB key, 1 USB cable, 1 power cord, 1 BagOpen 400 for dilutor, user’s manual, 1 conformity certificate / warranty card, 10 GeckoGrip, 1 pack of adhesive putty, 1 Allen wrench, blender bags samples | |
For pharmaceutical and cosmetics industries
The DiluFlow Elite 1 kg is adapted to small volumes, as required in pharmaceutical and cosmetics industries. Its flexibility enables the preparation of the samples in tubes, pots…
High accuracy
The DiluFlow Elite 1 kg allows an accurate dilution of all sample types from 1 to 20 g (at 1/10th) with an accuracy of > 99%.
Connectivity and full traceability
The DiluFlow Elite is programmable through its 24 customizable programs. Traceability is ensured by a bidirectional LIMS ethernet connection. DiluFlow Elite exports the analyses data to printer, USB key, ExcelTM, Open OfficeTM, CSV and LIMS..
Robotic arm and protective plate
The robotic arm enables you to place the sample safely in the bag without risk of cross contamination. Tested for over 1.3 million cycles, its reliability is guaranteed. The protective plate protects the beaker from contact with the sample.
Ultra-low profile
Widest possible opening for the bag and lowest loading threshold on the market! With redesigned ergonomics, the ultra-low profile allows optimal comfort of use, especially under a laminar flow hood.
Removable drip tray
In case of splashing, the drain tray is removable for rinsing and avoids tedious cleaning.
PATENTED
GeckoGrip holding system
This patented system replaces adhesive putty and keeps the analysis bag glue-free, even on a wet surface.
PATENTED
LightCode
LightCode is a bright and intuitive indicator of the status of dilution. It allows you to check the accuracy at a glance.
Green
Accuracy > 98%
Orange
Accuracy > 95%
Red
Accuracy < 95%
Blue
Scale stabilizing
Autotare Function
Multi-distribution mode
Magnetic BagOpen
Up to 6 diluents
Applications
DiluFlow Elite 1 kg is used for the preparation of samples from 1g to 20g diluted at 1/10th. It enables you to prepare tubes, or pots for samples to analyse. For example: active ingredients, cream, make-up…
Printer – Prints all data, Paper 521 110, Labels 521 012, Film 410 130, Ref 410 150
Foot pedal – For hands-free dispensing. Connection with a 3.5 mm Jack. Ref 507 008
Bar-code reader (1) – For total traceability of the samples. Ref 522 000
Handy gun (1) – For high precision work and comfortable tube handling. Ref 561 001
Booster kit – Accelerate the dispensing speed up to 225 mL/8 s. Ref 511 000
Pump module (1) – External module with single pump + silicone tubings for pump head (inner Ø 6.4 mm). Ref 505 007
Jumbo kit (2) – BagOpen® 3500 + 3500 mL DripTray + anti-splash nozzle. Ref 505 006
5L bottle (GL45) – 5 L autoclavable bottle. Ref 513 001
Independent stand for broth bags. To easily store diluent bags. Ref 513 015
Integrable stand for broth bags. Integrated to the unit, to hold one broth bag. Ref 505 010
Trocar – 316 L stainless steel trocar for broth bags. Ref 513 020
6 nozzles holder (1) + Protection nozzles. Can hold up to 6 nozzles. Ref 505 008
Adjustable distribution system (3). Ideal to fill various containers. Ref 505 004
Adjustable distribution system (4). Ideal to fill various containers. Ref 505 005
Weighing platform – To weigh and support a container. Ref 505 002
Tongs platform – To hold a tube (Ø 10 to 60 mm). Ref 505 003
GeckoGrip – Set of 10 adhesives for BagOpen®. Ref 505 009
PTFE filters 0.2 µm – (Ø 25 mm) Set of 5 autoclavable filters for GL45 bottles. Ref 513 023
Nozzle – Set of 5 stainless steel nozzles for tubings (inner Ø 4.8 to 8 mm). Ref 513 024
Nozzle – Set of 5 stainless steel nozzles for tubings (inner Ø 1.6 to 3.2 mm). Ref 513 040
Tube weight (Ø 6 mm) – Set of 5 tube weights. Ref 513 039
Certified standard weight (500 g) – 500 g COFRAC calibrated weight, type F1. Ref 513 005
Tubings:
Distribution set for single pump Sales unit
Ref 513 045 Dispensing assembly inner Ø 3.2 mm …………………………… 1
Ref 513 043 Dispensing assembly inner Ø 6.4 mm …………………………… 1
Distribution set for booster kit Sales unit
Ref 513 008 Booster kit dispensing assembly inner Ø 3.2 mm ……………. 1
Ref 513 041 Booster kit dispensing assembly inner Ø 6.4 mm ……………. 1
Silicone tubings for single pump Sales unit
Ref 513 047 Silicone tubings
inner Ø 3.2 mm …………………… 5
Ref 513 044 Silicone tubings
inner Ø 6.4 mm …………………… 5
Silicone tubings for pump head Sales unit
Ref 561 302 Silicone tubings
for pump inner Ø 3.2 mm ……….. 6
Ref 561 304 Silicone tubings
for pump inner Ø 6.4 mm ………… 6
Silicone tubings for booster kit Sales unit
Ref 513 009 Silicone tubings for
booster kit inner Ø 3.2 mm ………. 5
Ref 513 042 Silicone tubings for
booster kit inner Ø 6.4 mm ……… 5
