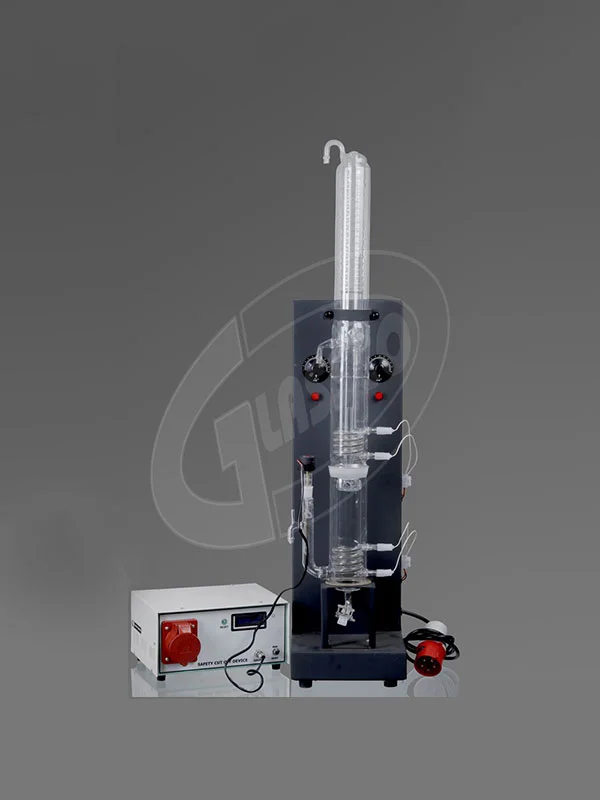

Unit has been designed keeping in view customer requirements and easy serviceability of the equipment.
Unit consists of :
- Lower boiler with inbuilt heater enclosed in a quartz boiler with a cup on top.
- Demountable upper boiler with built in quartz coil and condensing unit mounted on the boiler with the help of ball and socket joint
- Double walled condenser ensures separate condensation of vapors coming from the two boilers using a single cooling circuit
- Unit mounted on a specially designed metal stand and is also provided with automatic safety Control Unit
Double Distillate Quality:
Parameters Values Specific Conductivity 0.1 us/cm Biological Activity
(distillate quality)Pyrogen Free Organic Matter NIL Total Solids 0.1 mg/ltr * We recommend a Quartz Reservoir For storage of High purity water.
* All Parameters are under standard test conditionsSpare Parts for above:
Item Code Output Capacity ltr./Hr Description Pack Of GLDD-15AQ-PB 1.5 Quar tz Primary Boiler 1 GLDD-25AQ-PB 2.5 Quartz Primary Boiler 1 GLDD-40AQ-PB 4 Quartz Primary Boiler 1 GLDD-50AQ-PB 5 Quartz Primary Boiler 1 GLDD-15AQ-SC 1.5 Quartz Secondary Boiler 1 GLDD-25AQ-SC 2.5 Quartz Secondary Boiler 1 GLDD-40AQ-SC 4 Quartz Secondary Boiler 1 GLDD-50AQ-SC 5 Quartz Secondary Boiler 1 GLSI-SCU-15AQ 1.5 Safety Cut-off Device 1 GLSI-SCU-25AQ 2.5 Safety Cut-off Device 1 GLSI-SCU-40AQ 4 Safety Cut-off Device 1 GLSI-SCU-50AQ 5 Safety Cut-off Device 1 Categories: Water Distillation, Water Distillation Double Stage
| Item Code | Output Capacity Ltr / Hr | Pack of |
| |
|---|---|---|---|---|
| GLWS15DG | 1.5 | 1 |
| |
| GLWS25DG | 2.5 | 1 |
| |
| GLWS40DG | 4 | 1 |
|
