Data Logger

ENVIRONMENTAL MONITORING & METEOROLOGICAL INSTRUMENTS

  • Ser [LOG] plus data logger
  • Ser [LOG] data logger
  • AnDiMod measuring module
  • Met [LOG] with met [APP] data logger
  • Wind warning device
  • PreLOG data logger
  • SYNMET-IND data logger
  • SYNMET-NAV data logger
  • Tropos data logger

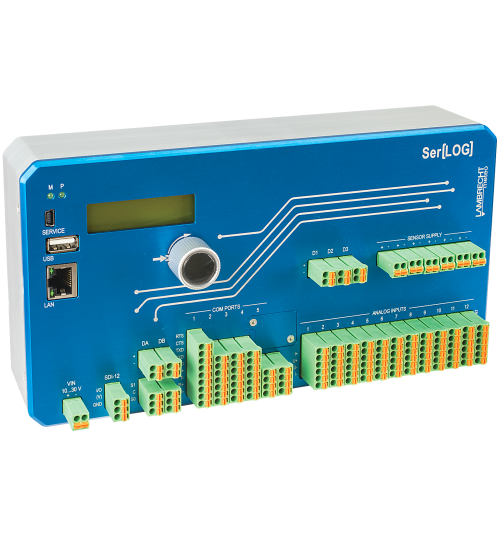

Ser [LOG] plus Data logger

Outstanding versatility and performance for your professional meteorological data acquisition. Ser [LOG] Plus is more than just a data logger: Due to its changeability through configuration and scaling, you can adapt Ser [LOG] Plus to the specific challenges of your daily measuring tasks.

Ser [LOG] Plus is multifunctional and grows with your requirements: The data logger can be expanded to a total of 3 measuring modules and processes up to 60 parameters. Ser [LOG] Plus is particularly communicative: a total of up to 30 data transfers are possible at the same time.

Ser [LOG] features

  • extensive sensor library, freely configurable and scalable by the user
  • Formula library and free formula parser
  • Alarm system for 10 warning channels via built-in and external relays, email, SMS
  • diverse options for exchanging information
  • interference-proof due to shielded aluminum housing
  • user-friendly with free access to all connections and controls
  • Meteorology
  • Environmental and agricultural measurement networks
  • Water management
  • Industry
  • Measurement and control systems
  • Health resorts
  • Airfields
  • Authority applications

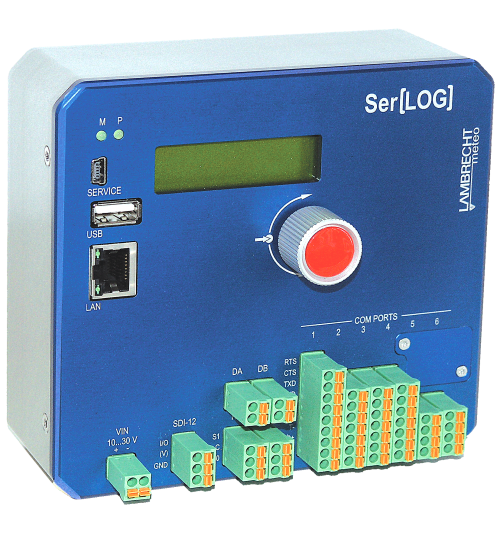

Ser [LOG] Data logger

The Ser [LOG] system family gives you the greatest possible freedom for individual adjustments to your measuring tasks: expandability through modular structure, high flexibility through a multitude of configuration options and many options through state-of-the-art communication interfaces.

Ser [LOG] can be expanded to a total of 3 analog / digital measuring modules AnDiMod. Up to 36 differential, analog channels and 11 digital channels are then available.

Ser [LOG] features

  • extensive sensor library, freely configurable and scalable by the user
  • Formula library and free formula parser
  • Alarm system for 10 warning channels via built-in and external relays, email, SMS
  • interference-proof due to shielded aluminum housing
  • user-friendly with free access to all connections and controls
  • Meteorology
  • Environmental and agricultural measurement networks
  • Water management
  • Industry
  • Measurement and control systems
  • Health resorts
  • Air traffic control
  • Authority applications

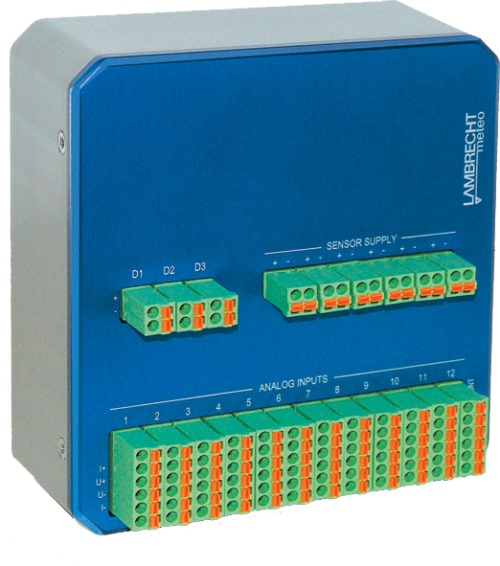

AnDiMod Measuring module

Benefit from the modular system of the Ser [LOG] data logger family and put together your system platform to suit your needs.

MEASUREMENT MODULE FOR DATA LOGGER Ser [LOG]

Benefit from the modular system of the Ser [LOG] data logger family and put together your system platform to suit your needs. So you can easily defy the growing challenges of your daily measurement tasks. Up to 3 AnDiMod can be connected to the data logger Ser [LOG] and up to 2 AnDiMod to the Ser [LOG] Plus .

Each measuring module AnDiMod contains

  • 12 analog differential channels
  • 3 digital channels
  • 6 connections for power supply of the sensors



With AnDiMod measuring modules you can expand your Ser [LOG] to a total of up to 36 analog measuring inputs and 11 digital inputs. Of course, AnDiMod – like the data logger – is immune to interference thanks to its shielded aluminum housing and is user-friendly with free access to all connections.

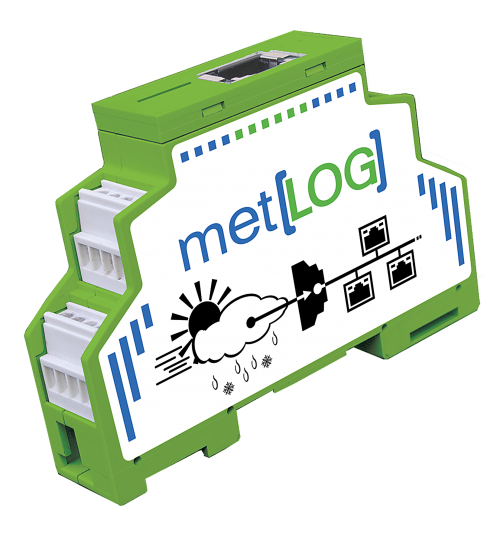

met [LOG] with met [APP] Data logger

SMART SERIAL SOLUTION

The data logger met [LOG] and the browser app met [APP] bring your climate data quickly and easily to your network (LAN). For the uncomplicated commissioning of the serial LAMBRECHT meteo sensors, the met [LOG] has an auto-configuration via plug & play.

met [APP]

The browser app in the met [LOG] for easy visualization of the current climate data in your network. And platform-independent: on your laptop, tablet or smartphone.

  • Display of the instantaneous values ​​of your LAMBRECHT meteo station
  • Export of the measured values ​​saved by metLOG]
  • Configuring the met [LOG]
  • Real-time access to the measurement data via the integrated web server, visualized in your browser with the met [APP]
  • Calculation of trends and processes, implementation of automatic corrections of altitude and air pressure
  • Warnings or alarm signals adjustable via digital outputs
  • Plug & Play · Auto-configuration at the push of a button, enables full operational readiness within seconds
  • Versatile combination options thanks to 7 interfaces for the connection of 4 analog and 3 serial sensors
  • Building technology
  • Environmental monitoring networks
  • Weather services
  • Universities
  • Information platforms
  • Industry
  • Wind warning
  • Health resorts

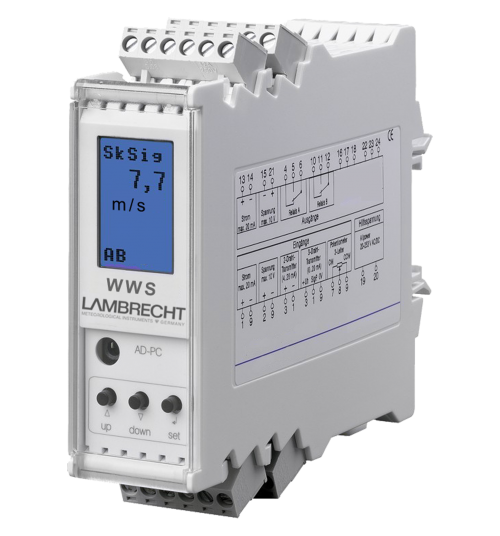

WWS Wind warning device

ALARMING …

in a variety of applications – at a very attractive price-performance ratio! Our wind warning system consists of the wind warning device WWS, the worldwide proven wind speed sensor INDUSTRY and the indicator type 8537. It guarantees a continuous monitoring of the wind speed with advance and main warning. Two freely configurable relays offer high flexibility; The pick-up and drop-out delays can be set separately.

WWS features

  • Security through immediate detection of technical faults
  • individual, application-oriented setting of the function parameters
  • quick and easy DIN rail mounting
  • clear and concise display of the measured values ​​and switching states
  • Cranes
  • Solar tracking systems
  • Cableways
  • Port loading facilities
  • Traffic meteorology
  • Facade access systems
  • Fire brigades
  • building technology
  • Overburden and open pit excavators
  • Amusement parks
  • Locks
  •

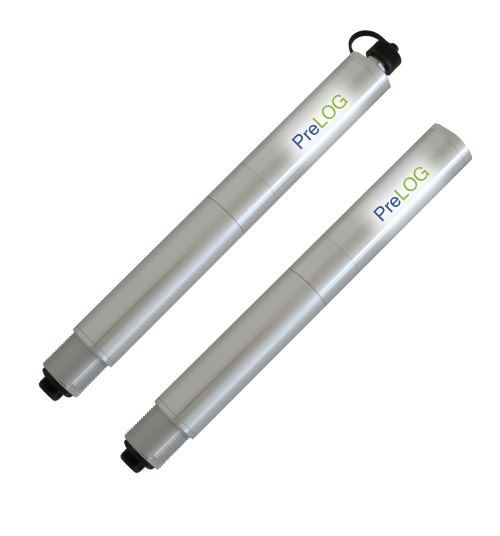

PreLOG Data logger

THE COMPACT STANDARD RAIN LOGGER …

for most precipitation sensors with tipping bucket and reed switch output. In addition, the PreLOG can be used as a self-sufficient pulse counter.

The rechargeable battery of the PreLOG allows a reliable operating time of up to 5 years. The logger is configured, read out and also charged via the mini USB interface.

The PreLOG can communicate via GPRS via a modem, which it also uses to send alarm messages in the event of an alarm.

PreLOG ECO is the cost-effective variant for manual reading out of the data.

PreLOG features

  • waterproof and low-maintenance
  • user friendly software
  • Storage behavior: event-controlled storage (no zero values)
  • Max.number of data records: 65535
  • Intensity correction integrated for Lambrecht precipitation sensors type 15189 (can be deactivated)
  • Self-sufficient precipitation stations
  • Agricultural meteorology
  • Monitoring networks for water management
  • Sewage treatment plants
  • International weather services
  • Agriculture and forestry
  •

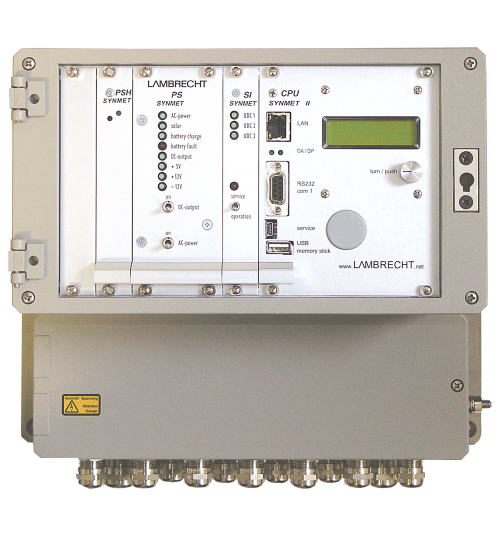

SYNMET-IND Data logger

THE STANDARD IN METEOROLOGY!

The own intelligence of the system components as well as modular expansion options make the system future-proof. A large number of specific applications can be implemented with high efficiency. Ease of maintenance, reliability and easy installation are further advantages of this standard logger for the highest demands.

SYNMET-IND features

  • Ring buffer for 1 year
  • freely configurable sensor inputs
  • 17 sensor channels
  • 43 virtual channels
  • capable of communication over the Internet via router *
  • LAN integration via Ethernet interface *
  • simultaneous communication with up to 10 users *



* Requires Ethernet connection set

  • Meteorological applications
  • wide area of ​​land use
  • Measuring networks
  • Water management
  •

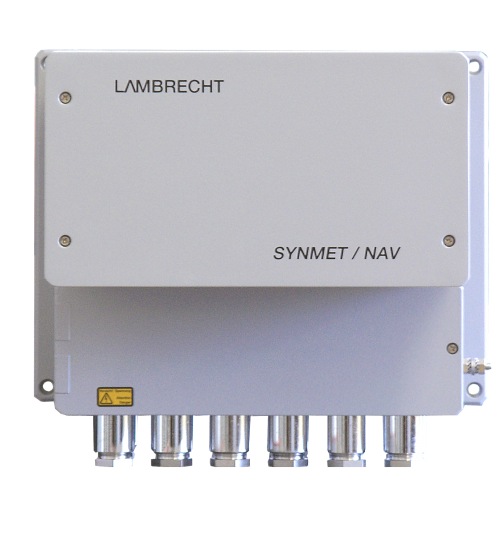

SYNMET-NAV Data logger

THE HIGH STANDARD IN MARINE METEOROLOGY!

The ship’s own data is professionally recorded in connection with on-board computers and processed for controlling the ship. Turbulence detection, windward and lee comparison, “true wind” and “travel over ground” are examples of this.

SYNMET-NAV features

  • Ring buffer for 1 year
  • freely configurable sensor inputs
  • 17 sensor channels
  • 43 virtual channels
  • capable of communication over the Internet via router *
  • LAN integration via Ethernet interface *
  • integrated sensor and hardware monitoring
  • simultaneous communication with up to 10 users *



* Requires Ethernet connection set

  • Shipping
  • Integration in navigation systems
  • project-related use

TROPOS -112 and -124 Data logger

In times when saving is the big issue, LAMBRECHT’s TROPOS is a brilliant coup. With TROPOS you not only save energy and costs, you also gain a high degree of flexibility due to the modular structure. Up to 1 + 24 sensors can be connected for high-level meteorological measurements.

TROPOS features

  • cost-effective investment based on the latest technology
  • modular system for a variety of classic and professional areas of application
  • The heart of a weather station with mains or solar supply
  • Compact Flash card as a central and mobile storage medium
  • simple data transfer via RS 232, RS 485 (optional) or with other known modem types
  • Operation using rotary pushbutton switches, LCD and clear configuration and readout software
  • Mobile or stationary weather stations
  • Meteorology
  • Hydrology
  • Industry
  • Agrarian
  • Research
