Benchmark Scientific Sterilizers
BENCHMARK SUREAIR™ PCR WORKSTATION
The Benchmark SureAir™ PCR workstation is a compact, convenient way to reduce contamination concerns and provide a clean room environment at a fraction of the space and cost. The high-powered yet quiet internal fan produces laminar flow conditions without any installation into ductwork. The included HEPA filter purifies air within the chamber, meeting ISO 5 cleanliness standards, and filters 99.97% of particles 0.3 µm and larger. The double-hinged front panel provides ample workspace for convenient hand access, and can be opened fully to allow placement of equipment inside.
The SureAir is designed to keep your workspace clean, easy-to-use, and organized. An included germicidal UVC light eliminates any stray DNA that may contaminate samples, and is programmed to automatically shut off after 15 minutes. To protect users, the UVC light is only operational when the cover is closed, and will shut off upon opening the cover.
Ample lighting is provided by an energy efficient LED light source. Up to 3 standard size pipettes are accommodated by the pipette holder integrated within the storage shelf. Pipette tips and small instruments can also be stored away from the main workspace when not in use. Power cables can easily be routed through the access port on the right side of the chamber.
- HEPA Filter and UV light reduce contamination
- Highly compact, 22 x 16″ footprint
- Included cable access port allows use of centrifuges, vortexers, and other instruments
- Included pipette holder and shelf provides storage for pipettes and tips
- Provides ISO 5 level clean conditions
| UV Light | 8W UVC | |
| UV Auto-Shutoff Timer | 15 minutes | |
| Materials | UV-Resistant Polycarbonate | |
| Filter | 0.3 µm 99.97% HEPA | |
| Air Velocity | 0.2 m/s | |
| Outer Dimensions (W x D x H) | 21.7 x 15.7 x 23.3 in. / 55 x 40 x 59.2 cm | |
| Inner Dimensions (W x D x H) | 19.7 x 15.4 x 15.7 in. / 50 x 39 x 40 cm | |
| Hand Access Dimensions (W x H) | 19.7 x 6.3 in. / 50 x 16 cm | |
| Weight | 44 lbs / 20 kg | |
| Electrical | 115V or 230V, 50/60 Hz, 70W | |
| Power Consumption | 70W | |
| Warranty | 2 Years |

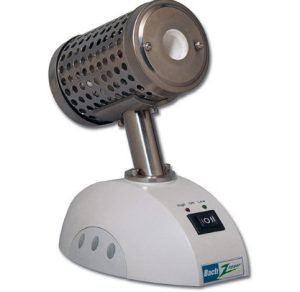

BACTIZAPPER™ RESEARCH MICROSTERILIZER CLASSIC
The BactiZapper™ Classic uses well-proven technology to provide instant sterilization of platinum inoculating loops, needles, glass tube/pipette mouths and various metal & borosilicate glass instruments used in the laboratory.
An asbestos-free core element uses infrared heating to produce temperatures of 815°C (1500°F), to completely sterilize instruments in 5-7 seconds. A lower temperature setting (500°C) can be used as a “standby” and extends usable life.
The ceramic heating element is safely enclosed in a perforated stainless steel guard chamber, protecting users from accidental contact with the extreme temperatures of the core area. It is extremely compact, convenient and can be used in anaerobic and aerobic chambers. Accessories available for drying slides and holding instruments in the chamber. For Research Use Only. Not intended for medical or hospital use.
- Complete sterilization of loops, needles and tube mouths
- Safe, convenient and no spatter
- Eliminates the need for an open flame
- Ideal for research laboratories
| High Temp. Setting: | 815°C / 1500°F | |
| Low Temp. Setting: | 500°C / 950°F | |
| Sterilization Time: | 5-7 seconds | |
| Chamber Diameter: | 0.55 in / 14mm | |
| Chamber Length: | 6 in. / 153mm | |
| External Dims. (in): | 4 x 6 x 6.5 | |
| External Dims. (cm): | 10.2 x 15.2 x 16.5 | |
| Weight: | 2.9 lbs (1.3kg) | |
| Electrical: | 115 or 230V 50-60Hz; 170W | |
| Warranty: | 1 Year |

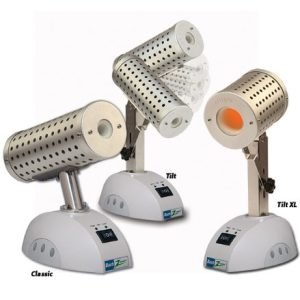

BACTIZAPPER™ RESEARCH MICROSTERILIZER CLASSIC
The BactiZapper™ TILT Series utilizes the same well-proven technology of our original BactiZapper Classic, but with a unique, adjustable head angle that allows for more convenient sterilization. When loosened, the adjustment knob can be shifted upward or downward, resulting in a tilt angle range of 55°C.
The Tilt XL model features a larger diameter heating chamber, 35mm, for sterilization of larger tubes, flasks and bottle mouths and necks.
Accessories are available for drying slides and holding instruments in the chamber – for use with BactiZapper Tilt only (not compatible with Tilt XL).
- Complete sterilization of loops and tube mouths
- XL version for sterilization of larger vessels
- Tilt adjustment for ergonomic positioning
- Safe, convenient and no spatter
- Eliminates the need for an open flame
- Ideal for research laboratories
| Max Temperature: | 815°C / 1500°F | |
| Sterilization Time: | 5-7 seconds | |
| Chamber Diameter: | 0.55 in / 14mm | |
| Chamber Diameter XL: | 1.38in / 35mm | |
| Chamber Length: | 6.2in / 157mm | |
| Chamber Length XL: | 3.95in / 100mm | |
| External Dims (in): | 4 x 6 x 10 (Tilt) / 4 x 6 x 11 (XL) | |
| External Dims (cm): | 10.2 x 15.2 x 26 (Tilt) / 10.2 x 15.2 x 28 (XL) | |
| Electrical Data: | 120V or 230V 50-60Hz | |
| Weight: | 3.4 lbs (1.5kg) Tilt / 3.5 lbs (1.6kg) XL | |
| Warranty: | 1 Year |

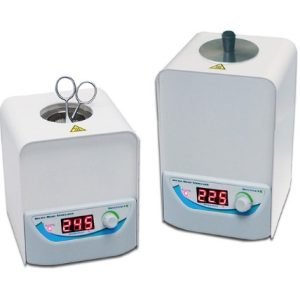

BENCHMARK MICRO BEAD RESEARCH STERILIZERS, WITH GLASS BEADS
Benchmark’s Micro Bead Sterilizer is ideal for the sterilization of small research tools (forceps, scissors,etc.). When the chamber is filled with the included glass beads, high temperatures (up to 300°C) can be used to eliminate the presence of bacteria, spores and other microorganisms. Supplied with beads. Replacement beads sold separately.
For Research Use Only. Not intended for medical or hospital use.
- Sterilizes forceps & other research tools (generally in 15 sec.)
- Digital control, up to 300°C
- Eliminates the danger associated with open flames
- TALL model, for sterilization of larger objects
| Temperature Range: | 100°C to 300°C | |
| Preheat Time: | Approx. 25 min. (to 300°C) | |
| Chamber Diameter: | 40mm | |
| Chamber Height B1201/B1202: | 80mm/140mm | |
| Bead Capacity B1201/B1202: | 150g/300g | |
| Dimensions (in) B1201/B1202: | 5.5 x 5.7 x 6.1/5.5 x 5.7 x 8.5 | |
| Dimensions (cm) B1201/B1202: | 14.5 x 15.5 x 15.5/14.5 x 15.5 x 21.5 | |
| Weight B1202/B1202 | 4.4 lbs (2kg)/5.5 lbs (2.5kg) | |
| Electrical: | 115 or 230V | |
| Power B1201/B1201: | 50-60Hz; 120W/250W | |
| Warranty: | 2 years |

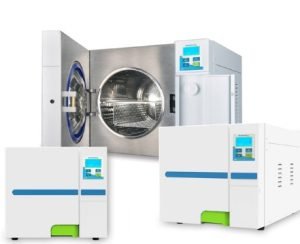

BIOCLAVE™ RESEARCH AUTOCLAVES
Despite the space-saving exterior dimensions of the Bioclaves, the stainless steel chambers are surprisingly large, accommodating a variety of liquids, media, instruments, glassware, plasticware, and other common research laboratory items.
Available in 8L, 18L, and 28L chamber volumes, these benchtop models include a mechanical and electrical safety interlock that prevents the door from being opened until the pressure has reached zero PSI.
With a large digital LCD display and fully automatic operation, all segments of the cycle (fill, sterilize, exhaust, and dry) commence and run to completion by simply pressing the start button. An optional thermal mini-printer is also available for providing a record of sterilization parameters and a USB drive can be used to record settings and transfer them to a PC.
The 8-liter BioClave Mini is preprogrammed to meet basic sterilization needs. Temperature can be selected at either 121°C or 134°C, and the sterilization time is fully adjustable. The economical BioClave Mini is the ideal choice wherever benchtop sterilization is required and space is limited.
BioClave 18L and 28L Models offer preset cycle options (standard programs), for use with liquids, wrapped research instruments, or unwrapped instruments/plasticware. An additional option “Dry Only” is also available for additional drying time to be added to the end of a cycle. For special applications, requiring variations in cycle parameters, all settings are fully adjustable.
The Bioclave 28L features an increased chamber size with a diameter of 32cm. With this larger internal chamber, the BioClave 28 is our only model capable of sterilizing 1 and 2 liters flasks (and bottles). Despite the increased chamber size, the unit is still relatively compact, suitable for benchtop use.
- Designed specifically for the sterilization of laboratory research tools
- Fully automatic operation – just press start
- Built in water tank – no external connection needed
- 8L, 18L and 28L models
- All models small enough for benchtop use
| Chamber Volume: | 8L/18L/28L | |
| Max. Pressure 8L/18L/28L: | 29 PSI (2 Bar) / 29PSI (2 bar) / 34.8 PSI (2.4 Bar) | |
| Chamber Dims. 8L | 6.7 x 12.5in. (17 x 31cm) | |
| Chamber Dims. 18L | 9.8 x 13.77in (24.8 x 35cm) | |
| Chamber Dims. 28L: | 12.6 x 16.4in (32 x 41.7cm) | |
| Exterior Dims. 8L | 20 x 13.5 x 12.9in (51 x 34 x 33cm) | |
| Exterior Dims. 18L | 22 x 17.5 x 15.7in (56 x 44.5 x 40cm) | |
| Exterior Dims. 28L: | 25 x 25 x 22in (63.5 x 63.5 x 55.9cm) | |
| Weight 8L/18L/28L: | 74 lbs (33 kg) / 89 lbs. (40 kg) / 209 lbs (95 kg) | |
| Electrical 8L/18L | 115 or 230V 50-60Hz | |
| Electrical 28L: | 115 or 220V 50-60Hz, (220V accepts 208 to 240V) | |
| Power 8L/ 18L | 950W / 1600W | |
| 28L-220V / 28L-120V | 2300W /1750W | |
| Warranty: | 1 year |

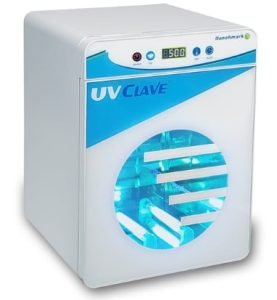

UV CLAVE™ ULTRAVIOLET CHAMBER FOR RESEARCH USE ONLY
Short-wave UV light is an effective method for the disinfection of surface DNA, RNA and microorganisms. With the UVClave chamber, highly focused UV irradiation is used to disinfect tools, vessels and other research items, eliminating up to 99% of surface contamination.
Unlike most UV chambers, the UV Clave includes powerful UV-C bulbs on both the top and bottom of the chamber. When combined with our proprietary shelf that allows for >90% of UV-C light transmission and highly reflective chamber walls, the result is true 360° exposure with no blind spots.
Exposure time is adjustable. An optional heating cycle can be added to assist in drying items that may have been washed or chemically disinfected prior to insertion.
To protect users, the integrated auto shut-off prevents illumination when the door is open. Optional indicators are available to test for proper exposure levels.
- Improves quality of PCR research by reducing potential contaminants
- Multiple lamps and reflective chamber walls provide true 360° irradiation;
- Proprietary UVC transparent shelf, eliminates potential for missed coverage (blind spots)
- Inactivates DNA, RNA, viruses & bacteria on PCR vessels
- Adjustable cycle time
| UV Bulbs: | 6 x 4W | |
| UV Wavelength: | 254nm | |
| UV Intensity: | +500µW/cm² (center of chamber) | |
| UV Dosage: | 600mJ/cm2 (20 min cycle) | |
| UV Timer: | 5-20 min. (5 min. increments) | |
| Heater Timer: | 30 -120 min. (30 min. increments) | |
| Heater Temp.: | 55°C | |
| Internal Dims.: | 8.5×10.1×12.2 in / 21.6×25.6×31.8 cm | |
| External Dims.: | 11.5×10.5×15.7 in / 29.2×26.7×40 cm | |
| Max. Height: | 30 cm | |
| Shelf Dims.: | 10 x 8 in / 25.4 x 20.3 cm | |
| Shelf Material: | 2 Stainless steel wire / 1 UV-C transparent | |
| Weight: | 11lbs. (5kg) | |
| Electrical: | 120V 60HZ or 230V 50HZ – 110W | |
| Warranty: | 2 Years |
