Benchmark Scientific Shaking Incubators
ROTO-THERM™ INCUBATED ROTATOR SERIES
Benchmark’s new Roto-Therm series of incubated rotating mixers provide a wide range of mixing capabilities. Suitable for an array of laboratory applications including resuspension, protein binding, nucleic acid purification, histochemistry, hybridization etc, the mixers include
interchangeable tube holders for accomomodating all common tube sizes from 0.5ml to 50ml. The motion can be adjusted from vertical (end over end) mixing, to horizontal (rolling or hybridization style) mixing.
For applications requiring temperature control, the Roto-Therm series can be digitally programmed to maintain chamber temperatures of ambient +5°C to 60°C and include an “in-lab” calibration function for ensuring accurate temperature control.
The Roto-Therm is also available in a “Plus” configuration, providing the following additional features:
Variable speed: 5 to 70rpm
“Mix” function: Rotating in combination w/ oscillations (increased mixing)
“Pause” function: Rotating with intermittent “stops” during rotation
“Rock” function: Back and forth, gentle rocking motion (see-saw)
The Plus model also offer an additional rocking platform (4.5 x 3 in.), as well as a 96 x 0.2ml tube/strip/plate holder for mixing PCR vessels in the “Mix” (oscillating) mode.
· Rotated mixing with temperature control
· Includes tube holders for common tube sizes
· Available with variable speed control and advanced shaking/ mixing modes: Mix (Oscillating), Pause, Rock
| Temperature: | Ambient +5 to 60°C | |
| Speed (H2020): | 24rpm | |
| Speed (H2024): | 5 to 70rpm | |
| Mixing Modes (H2024): | Mix – Pause – Rock | |
| Dimensions: | 11.8 x 8.5 x 9in (29.5 x 21.6 x 22.9cm) | |
| Weight (H2020): | 9 lbs (4kg) | |
| Weight (H2024): | 10 lbs (4.5kg) | |
| Electrical: | 115 or 230V 50-60Hz; 0.5A (H2020) / Universal Voltage 100 to 240V 50-60Hz; 0.5A (H2024) | |
| Warranty: | 2 Years |

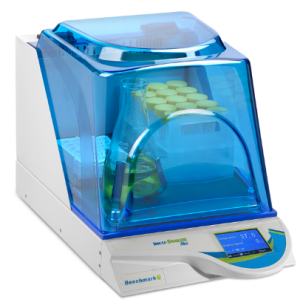

INCU-SHAKER™ MINI WITH NON-SLIP RUBBER MAT
The Incu-Shaker™ Mini is the most compact shaking incubator in its class. Despite the remarkably small footprint, a large 11.5 x 9.5 in. work space accepts several platforms and a variety of flasks, tubes and other common vessels.
The standard platform (included) features a non-slip, rubber coated surface, ideal for tissue culture flasks, Petri dishes and staining trays.
The convenient MAGic Clamp™ (PATENTED) platform is also available for use with Erlenmeyer flasks and test tube racks. The unique, magnetic attachment method is the easiest way to instantly change between flask clamps of different sizes.
· Extremely compact, just 11″ wide
· TOUCH Screen control over time, speed and temperature
· Horizontally circular 19mm orbit for aeration & mixing
· Instantly exchange flask clamps with MAGic Clamp™ accessories (PATENTED)
· Program STEP feature for linking consecutive programs
| Temperature Range: | Ambient +5° to 70°C | |
| Temperature Increments: | +0.1°C | |
| Temperature Uniformity: | ±0.25°C | |
| Temperature Accuracy: | ±0.1°C | |
| Shaking Speed Range: | 30 to 300rpm | |
| Speed Increments: | 1rpm | |
| Shaking Orbit: | 19mm (3/4″) | |
| Operating Temp Range: | +4 to +65°C | |
| Platform Dimensions: | 9.5 x 11.5 in./24 x 28 cm | |
| Exterior Dimensions (W x D x H): | 11 x 18.8 x 13 in. / 28 x 41 x 33 cm | |
| Height with Lid Open: | 25 in. / 63 cm | |
| Timer: | 1 min. to 48 hours / continuous | |
| Weight: | 25 lbs (11.5kg) | |
| Electrical: | 115 or 230V 50-60Hz; 250W | |
| Warranty: | 2 Years |

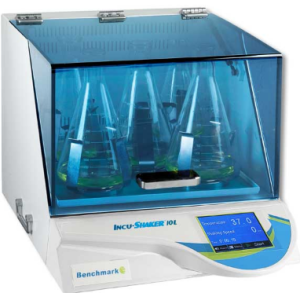

INCU-SHAKER™ 10L WITH NON-SLIP RUBBER MAT
Incu-Shaker™ 10L is a heavy-duty performer, designed for heavy workloads and continuous use. Its outstanding temperature accuracy and uniformity are supported by proprietary heat distribution technology that ensures that temperatures are precisely maintained throughout the chamber. Inconsistencies due to stratification are reduced to negligible levels and the selected temperature is precisely maintained within 0.25%, even in the corners.
The powerful brushless induction drive is designed for years of trouble-free service, even under continuous use conditions with heavy loads. Noise and vibration are minimized by an advanced, computer designed motor isolation system. Like other Incu-Shaker models, the 10L is built to last.
A standard, rubber mat platform is included and is ideal for use with tissue culture flasks, Petri dishes, staining trays and other flat vessels. The convenient MAGic Clamp™ platformis also available for use with Erlenmeyer flasks and test tube racks. The unique, magnetic attachment method (PATENTED) is the easiest way to instantly change between flask clamps of different sizes.
· Large platform 18 x 18, up to 5 x 2 L
· TOUCH screen control over time, speed and temperature
· Exceptional temperature uniformity
· Horizontal circular 19mm orbit for aeration & mixing
· Instantly change flask clamps with MAGic Clamp™ accessories
· Optional shelf for Petri dishes, microplates, etc.
| Speed: | Variable, 30 to 300 rpm | |
| Orbit: | 19mm / 3/4 in. | |
| Temp. Range: | Room Temp. +5 to 60°C | |
| Temperature Increment: | 0.1°C | |
| Temp. Accuracy: | ±0.1°C | |
| Temp. Uniformity: | ±1.25°C | |
| Speed Increment: | 1 rpm | |
| Platform Dimensions: | 17.8 x 17.8 in./ 45 x 45 cm | |
| Dimensions: (w x d x h) | 20 x 26 x 19 in. / 51 x 65 x 47 cm | |
| Weight: | 120 lbs (55kg) | |
| Height | 38 in. / 96.5 cm | |
| Timer: | 1 min. to 48 hours / continuous | |
| Electrical: | 115 or 230V 50-60Hz; 480W | |
| Warranty: | 2 Years |

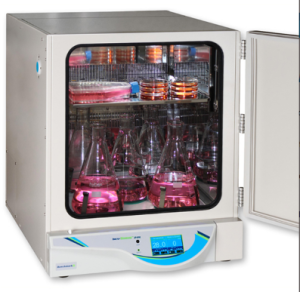

INCU-SHAKER™ 20L WITH NON-SLIP RUBBER MAT
The new Benchmark Incu-Shaker™ 20L and 20LR introduce a high-throughput, space saving shaking incubator system to the Incu-Shaker family. Now with stacking capability of up to 2 units, the Incu-Shaker™ 20 series are highly space-efficient without compromising on reliability or temperature performance.
Thoroughly tested for years of reliable performance, the same proven brushless induction motor drive is featured as in other Incu-Shaker instruments. The high grade stainless-steel internal chambers provide temperature accuracy within ±0.1°C, and industry-leading uniformity within the chamber of ±0.5°C. The Incu-Shaker™ 20L features temperature control from 5°C above ambient temperatures up to 60°C. The 20LR features a built-in powerful compressor, allowing for cooling down to 4°C, even while the shaker is in use, up to 60°C.
The increased chamber size now allows for up to 4 5-Liter Erlenmeyer flasks to be in use at once. Usable space is maximized by providing adjustable shelving above the shaker platforms, which can be used for incubation of Petri dishes, cell culture plates, or other smaller vessels. Even when two stacked units are working, the noise and vibration levels are significantly minimized by the advanced, computer-designed motor isolation system.
The Incu-Shaker™ 20 series feature a non-slip rubber mat platform, and can be outfitted with Benchmark’s MAGic Clamp™ universal magnetic platform. Magnetic flask attachment accessories can then be used, allowing for easy, toolless addition and removal of flasks from the shaker. Flask clamps of most sizes, tube racks, and other magnetic vessel holders are available and usable with the Incu-Shaker™ 20L and 20LR. The Incu-Shaker 20L and 20LR are now available for efficient, repeatable growth culture and other applications.
· Stainless steel chamber provides premier temperature uniformity
· Proven reliable, maintenance-free Incu-Shaker™ motor drive system
· Bright, intuitive touch-screen controls
· Instantly change flask clamps with MAGic Clamp™ accessories
· Included pull-out adjustable shelf for static incubations
| Speed: | Variable, 30 to 300 rpm | |
| Orbit: | 19mm / 3/4 in. | |
| Temp. Range: (H3020) | Ambient +5°C to 60°C | |
| Temp. Range: (H3022) | Ambient -20°C (4°C) to 60°C | |
| Temperature Increment: | 0.1°C | |
| Temp. Accuracy: | ±0.1°C | |
| Temp. Uniformity: | ±1.25°C | |
| Speed Increment: | 1 rpm | |
| Platform Dimensions: | 17.8 x 17.8 in./ 45 x 45 cm | |
| Dimensions: (w x d x h) | 20 x 26 x 19 in. / 51 x 65 x 47 cm | |
| Weight: | 120 lbs (55kg) | |
| Height | 38 in. / 96.5 cm | |
| Timer: | 1 min. to 48 hours / continuous | |
| Electrical: | 115 or 230V 50-60Hz; 480W | |
| Warranty: | 2 Years |
INCU-SHAKER™ 10LR (REFRIGERATED)
Incu-Shaker™ 10LR is a heavy-duty performer, designed for heavy workloads and continuous use. Its outstanding temperature accuracy and uniformity are supported by proprietary heat distribution technology that ensures that temperatures are precisely maintained throughout the chamber. Inconsistencies due to stratification are reduced to negligible levels and the selected temperature is precisely maintained within 0.25%, even in the corners. The expanded temperature range, down to 12 degrees below ambient, allows for a broad range of applications.
The powerful brushless induction drive is designed for years of trouble-free service, even under continuous use conditions with heavy loads. Noise and vibration are minimized by an advanced, computer-designed motor isolation system. Like other Incu-Shaker models, the 10L is built to last.
A standard, rubber mat platform is included and is ideal for use with tissue culture flasks, Petri dishes, staining trays, and other flat vessels. The convenient MAGic Clamp™ platform is also available for use with Erlenmeyer flasks and test tube racks. The unique, magnetic attachment method (PATENTED) is the easiest way to instantly change between flask clamps of different sizes.
· Large platform 18 x 18, up to 5 x 2 L
· Exceptional temperature uniformity
· Horizontal circular 19mm orbit for aeration & mixing
· Instantly change flask clamps with MAGic Clamp™ accessories
· Optional shelf for Petri dishes, microplates, etc.
· Refrigerated, holds temperatures as low as 12ºC below room temp.
| Speed: | Variable 30 to 300 rpm | |
| Orbit: | 19mm / 3/4 in. | |
| Temp. Range: | Ambient -12°C to 60°C | |
| Temperature Increment: | 0.1°C | |
| Temp. Accuracy: | ±0.1°C | |
| Temp. Uniformity: | ±1.25°C | |
| Speed Increment: | 1 rpm | |
| Platform Dimensions: | 17.8 x 17.8 in./ 45 x 45 cm | |
| Dimensions: (w x d x h) | 20 x 31 x 22 in. / 51 x 79 x 56 cm | |
| Weight (10LR): | 170 lbs. (77kg) | |
| Lid Open Height: | 38 in. / 96.5 cm | |
| Timer: | 1 min. to 48 hours or continuous | |
| Electrical: | 115 or 230V 50-60Hz; 1.2kW | |
| Warranty: | 2 Years |

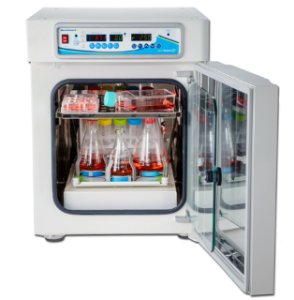

INCU-SHAKER™ CO2 MINI, WITH NON-SLIP RUBBER MAT PLATFORM
Ideal for the culturing of non-adherent cells, the Incu-Shaker CO2 Mini combines a precision CO2 incubation chamber with an integral orbital shaker, providing the optimum conditions for suspension cell culture.
With our unique and proprietary heat distribution technology, the incubator provides the highest levels of temperature accuracy with minimal fluctuation (within 0.1°C). The six-side heating system in combination with a low speed internal fan uniformly spreads air throughout the stainless steel chamber (without air exchange from the external environment). For applications requiring solely gravity convection, this internal fan can be disabled, significantly reducing the concern of sample to sample contamination.
A beltless motor drive provides a horizontally circular shaking motion at a consistent 19mm orbit. The included platform (9.5 x 11.5 in.) can be used for low speed shaking of a variety of laboratory vessels, including Erlenmeyer flasks, culture plates and media bottles. For high speed mixing, a patented MAGic Clamp platform is available that allows for magnetic attachment of flask clamps and tube racks.
· Heat – Shake – CO2
· Six side heating provides excellent uniformity and recovery
· Integral MAGic Clamp shaker (Optional: Item No. H1000-MR), ideal for suspension cell culture
· Precise monitoring over CO2 with dual beam IR sensor
| Temperature Range: | Ambient +5° to 60°C | |
| Temperature Increments: | 0.1°C | |
| Temperature Uniformity: | ± 0.5°C* | |
| Temperature Accuracy: | 0.5°C | |
| Speed Range: | 30 to 300rpm | |
| Speed Increments: | 1rpm | |
| Mixing Orbit: | 19mm (3/4 in.) | |
| CO2 Range: | 0 to 20% | |
| CO2 Increment | 0.1% | |
| CO2 Accuracy | ± 0.1% | |
| CO2 Sensor: | Dual Beam IR | |
| Timer: | 1 min. to 48 hours / continuous | |
| Platform Dimensions: | 9.5 x 11.5 in./28 x 41 x 33 cm | |
| Chamber Dimensions: | 13.2 x 10.25 x 15.4 in. 33.5 x 26 x 39.2 cm | |
| Chamber Volume: | 46L | |
| Chamber Material: | Stainless Steel (316) | |
| Exterior Dimensions: | 16.5 x 18.3 x 21.8 in. / 42 x 46.5 x 55.3 cm | |
| Weight: | 90 lbs / 40.1 kg | |
| Electrical: | 120V or 230V 50-60Hz (350W) |

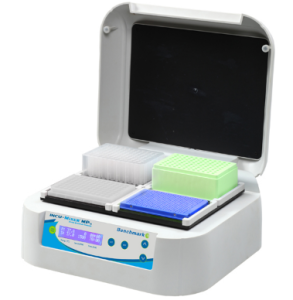

INCU-MIXER™ MP HEATED MICROPLATE VORTEXER SERIES
The new Incu-Mixer MP series by Benchmark Scientific is designed to provide an optimal method for vortexing and incubating microplates. Simultaneous heating from both the bottom surface and the lid provide temperature uniformity throughout the sample. Additionally, the heated lid minimizes evaporation and prevents condensation.
A compact, 2mm orbit ensures thorough mixing in microplates without splashing. Speed, time and temperature are all displayed in real time on the large LCD screen while an internal validation system constantly monitors all parameters for accuracy.
Designed for application flexibility, the Incu-Mixer series is available in two, and four-plate capacities, both capable of accepting standard plates. Independent time, temperature and speed controls allow the mixer to function as 3 machines in one; a multi-plate incubator, vortexer, or a combination of the two. The Incu-Mixer MP series is ideal for a wide variety of molecular biology applications including immunochemical reactions, enzyme and protein analysis, and microarray analysis.
· Optimized for incubated mixing in microplates
· Heated lid prevents condensation
· Accepts plates up to 46mm high (4 plate model only)
· Independently control time, temp. and speed
· Available in two-plate and four-plate format
| Temperature Range: | Ambient +5° to 70°C | |
| Orbit: | 2mm | |
| Mixing Speed (4-Plate): | 100 to 1500rpm | |
| Mixing Speed (2-Plate): | 100 to 1200rpm | |
| Temperature Increment: | 0.1°C | |
| Temperature Accuracy: | ±0.2°C | |
| Temperature Uniformity: | ±0.5°C | |
| Speed Increment: | 10 rpm | |
| Max. Plate Height (4-Plate): | 46 mm | |
| Max. Plate Height (2-Plate): | 20 mm | |
| Dimensions (4-Plate): | 12.6 x 13.8 x 7.3 in. / 32 x 35 x 18.5 cm | |
| Dimensions (2-Plate): | 11 x 10.6 x 5.5 in. / 28 x 27 x 14 cm | |
| Weight: | 18 lbs (8kg) | |
| Timer: | 1 min. to 99 hours 99min. / continuous | |
| Electrical (4-Plate): | 115 or 230V 50-60Hz; 600W | |
| Electrical (2-Plate): | 100 to 240V 50-60Hz; 500W | |
| Warranty: | 2 years |

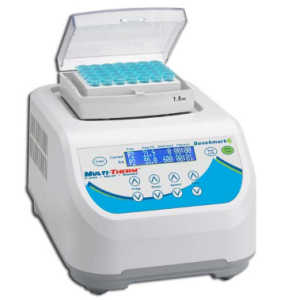

MULTITHERM SHAKER
The MultiTherm shaker is a temperature controlled vortexer, useful for a variety of molecular biology applications. Despite its modest 8 x 11 in. footprint, all popular tubes and plates are compatible, including as many as six 50 ml tubes. Speed, time and temperature settings are continuously visible on the LCD, simultaneously showing both actual and selected values. Integral over-temperature control ensures long life, safety and sample integrity. Blocks are sold separately.
· Temperature control from 0 to 100°C
· Exchangeable blocks, for tube sizes 0.2 to 50 ml
· Precision contoured wells for uniform thermal transfer
· Two models: Heat/Cool or Heat only
· Sequence link function, links/repeats programs (HC model only)
· Blocks sold separately
| Speed: | 200 to 1500 rpm (or off) | |
| Orbit: | 3mm | |
| Temp. Range (H5000-HC): | Ambient -20 to 100°C | |
| Temp. Range (H5000-H): | Ambient +5 to 100°C | |
| Temperature Increment: | 0.1°C | |
| Temp. Accuracy: | +/- 1.0°C | |
| Capacity: | Per Selected Block | |
| Speed Increment: | 10 rpm | |
| Heating Rate: | 5.0°C per. min. | |
| Cooling Rate: | 2.5°C per. min. | |
| Dimensions: (w x d x h) | 8.25 x 11.5 x 8.25 in. / 21 x 29 x 21 cm | |
| Weight: | 18 lbs (8kg) | |
| Timer: | 1 min. to 99 hours 99min. / continuous | |
| Electrical: | 115 or 230V 50-60Hz; 500W | |
| Warranty: | 2 Years |

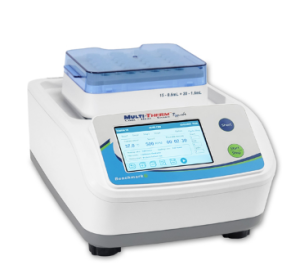

MULTITHERM SHAKER TOUCH
Like the popular MultiTherm, the MultiTherm Touch features a broad temperature range to meet applications from denaturation of DNA to keeping samples cold (4°C) at the end of a protocol. An expanded speed range (to 3,000rpm), full-color touch screen, greater flexibility in programming and heated lid option set this new unit apart.
All operating parameters are easily entered and viewed on the large, full color, touch screen. Fifty programs can be stored, each including up to 5 steps. Programming features such as adjustable ramp rates, interval and directional mixing and preheat options can be set.
A “short” button allows for immediate mixing at maximum speed. Fifteen block choices accommodate samples from 0.2ml to 50ml as well as a variety of plates. Blocks are quickly and easily interchanged without the use of tools and are automatically recognized by the software. Insulation protects the users from hot surfaces and helps to maintain block temperature.
Condensation can have negative effects on delicate samples and reactions by changing the concentration of reactants. The heated lid option, available for use with tubes up to 5ml and microplates, protects samples by warming the air in the tube and preventing condensation.
Easy to use and reliable in operation, the MultiTherm Touch is covered by a 2 year warranty. Blocks and heated lid are sold separately
· Large touch screen for simple and easy programming and viewing of status
· Advanced programming features include adjustable ramp rates, preheat and clockwise/counterclockwise mixing
· Multiple block options for plates and tubes up to 50ml
· Broad temperature and speed range to meet a variety of applications
| Display: | 4.3 inch color touch screen with graphical interface | |
| Speed: | 200 to 3000 rpm (block dependent) | |
| Orbit: | 3mm | |
| Temp. Range: | Ambient -20 to 105°C | |
| Temperature Uniformity: | ±0.5°C | |
| Timer: | 1s-99h:59m:59s or continuous | |
| Program Memory: | 50 programs | |
| Steps/Program: | 5 steps/program | |
| Programming Features: | Adjustable ramp rate, mix mode, mix start, power failure restart, and heated lid temp | |
| Additional Features: | Quick button, pause, import/export data and programs, automatic block recognition | |
| Dimensions: (w x d x h) | 6.3 x 12.6 x 8.7 in. / 16 x 32 x 22 cm | |
| Weight: | 22 lbs/10kg | |
| Electrical: | 110 to 240V 50-60Hz | |
| Warranty: | 2 Years |
