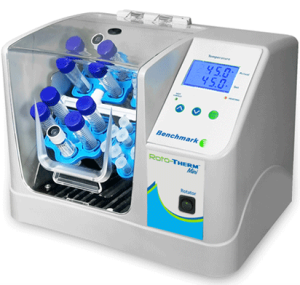

ROTO-THERM™ INCUBATED ROTATOR SERIES
Benchmark’s new Roto-Therm series of incubated rotating mixers provide a wide range of mixing capabilities. Suitable for an array of laboratory applications including resuspension, protein binding, nucleic acid purification, histochemistry, hybridization etc, the mixers include
interchangeable tube holders for accomomodating all common tube sizes from 0.5ml to 50ml. The motion can be adjusted from vertical (end over end) mixing, to horizontal (rolling or hybridization style) mixing.
For applications requiring temperature control, the Roto-Therm series can be digitally programmed to maintain chamber temperatures of ambient +5°C to 60°C and include an “in-lab” calibration function for ensuring accurate temperature control.
The Roto-Therm is also available in a “Plus” configuration, providing the following additional features:
Variable speed: 5 to 70rpm
“Mix” function: Rotating in combination w/ oscillations (increased mixing)
“Pause” function: Rotating with intermittent “stops” during rotation
“Rock” function: Back and forth, gentle rocking motion (see-saw)
The Plus model also offer an additional rocking platform (4.5 x 3 in.), as well as a 96 x 0.2ml tube/strip/plate holder for mixing PCR vessels in the “Mix” (oscillating) mode.
· Rotated mixing with temperature control
· Includes tube holders for common tube sizes
· Available with variable speed control and advanced shaking/ mixing modes: Mix (Oscillating), Pause, Rock
| Temperature: | Ambient +5 to 60°C | |
| Speed (H2020): | 24rpm | |
| Speed (H2024): | 5 to 70rpm | |
| Mixing Modes (H2024): | Mix – Pause – Rock | |
| Dimensions: | 11.8 x 8.5 x 9in (29.5 x 21.6 x 22.9cm) | |
| Weight (H2020): | 9 lbs (4kg) | |
| Weight (H2024): | 10 lbs (4.5kg) | |
| Electrical: | 115 or 230V 50-60Hz; 0.5A (H2020) / Universal Voltage 100 to 240V 50-60Hz; 0.5A (H2024) | |
| Warranty: | 2 Years |

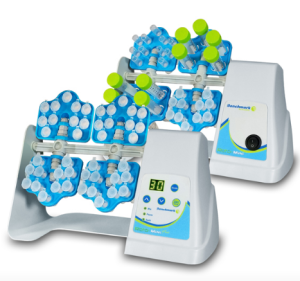

ROTOMINI™ AND ROTOMINI PLUS TUBE ROTATORS
Benchmark’s new Roto-Mini series of rotating mixers provides a wide range of mixing capabilities, suitable for an array of laboratory applications including resuspension, protein binding, nucleic acid purification, histochemistry, hybridization etc.
The mixers include interchangeable tube holders for accomomodating all common tube sizes from 0.5ml to 50ml. and the motion can be adjusted from vertical (end over end) mixing, to horizontal (rolling or hybridization style) mixing. Roto-Mini rotators are available in the “Plus” configuration.
The Plus models provide the following additional features: Variable speed: 5 to 70rpm “Mix” function: Rotating in combination w/ oscillations (increased mixing) “Pause” function: Rotating with intermittent “stops” during rotation “Rock” function: Back and forth, gentle rocking motion (see-saw) The Plus models also offer an additional rocking platform (4.5 x 3 in.), as well as a 96 x 0.2ml tube/strip/plate holder for mixing PCR vessels in the “Mix” (oscillating) mode
· Includes tube holders for common tube sizes
· Available with variable speed control and advanced shaking/ mixing modes: Mix (Oscillating), Pause, Rock
| Speed Range R2020 | 24 rpm | |
| Speed Range R2024 | 5 to 70rpm | |
| Mixing Modes R2020 | N/A | |
| Mixing Modes R2024 | Mix – Pause – Rock | |
| Max Capacity | 44×1.5/2.0ml – 20x15ml – 6x50ml | |
| Dimensions (in) | 10.8 x 6 x 6.5 | |
| Dimensions (cm) | 41 x 13.7 x 19.9 | |
| Weight | 3 lbs (1.4kg) | |
| Electrical | 100-240V 50-60Hz; 0.5A | |
| Warranty | 2 years |

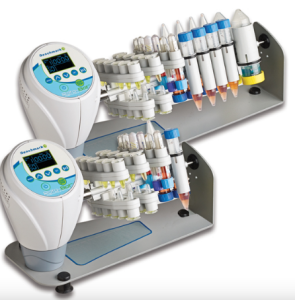

ROTOBOT™ SERIES PROGRAMMABLE ROTATORS, INCLUDES TUBE HOLDERS
The RotoBot Rotating Mixers feature advanced programming options that far surpass that of the
traditional laboratory rotator. With digital speed control and more than 10 operating modes, the
RotoBot can be selected to perform a wide variety of rotating, mixing and vibrating actions.
In addition, these actions can be combined in succession, using the C1 and C2 “Custom Modes” providing the user with a nearly infinite level of programming.
· Advanced programming with a wide variety of rotational modes
· Set for full 360° rotation, or interrupt rotations with pausing & mixing intervals
· Slow rotating to vigorous mixing
· Cold room and incubator safe
· Accepts common tubes from 1.5 to 50ml
· Optional rocking platform
| Speed Range | 1 to 80 rpm | |
| Max Capacity (R4040) | 6x50ml – 10x15ml – 60×1.5ml | |
| Max Capacity (R4045) | 12x50ml – 22x15ml – 84 x 1.5ml | |
| Timer | 1 min. to 99 hrs 59min. / Cont. | |
| Dimensions (in) | 11.4 x 5.4 x 7.8 | |
| Dimensions (cm) | 29 x 13.7 x 19.9 | |
| Operating Temp. | +2° to +70°C | |
| Weight | 4 lbs (1.8kg) | |
| Electrical | Universal Voltage 100 to 240V 50-60Hz; 3A | |
| Warranty | 2 years |

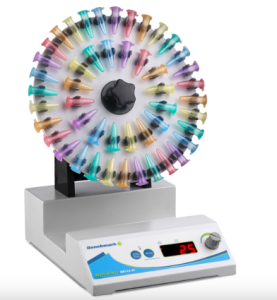

ROTATING MIXER WITH ROTISSERIES FOR 1.5/2.0, 15 AND 50ML TUBES, 115V
Rotating Mixer provides gentle to vigorous mixing of laboratory samples up to 50mL. With adjustable speed control and tilt angle, the rotating mixer is ideal for a variety of applications, from mixing blood samples to the preparation of homogenous dispersions.
· Adjustable speed and tilt angle
· Reversing mode, for more intense mixing
· Cold room and incubator safe
· Includes three rotisseries for all common tube sizes
| Speed Range | 1 to 40 rpm | |
| Tilt Angle | 0 to 90° (vertical to horizontal) | |
| Max Capacity | 12 x 50ml, 20 x 15ml or 48 x 2.0ml | |
| Timer | 1 sec to 99 hrs 59min or continuous | |
| Dimensions (in) | 8.25 x 10.5 x 12.5 in. | |
| Dimensions (cm) | 21 x 27 x 32 cm. | |
| Ambient Operating Temp. | +4° to +65°C | |
| Weight | 7 lbs (3.2kg) | |
| Electrical | Universal Voltage 100 to 240V 50-60Hz; 25W | |
| Warranty | 2 years |

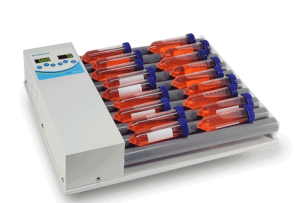

TUBEROLLER ROCKING ROLLERS, 5 AND 10 ROLLER MODELS
Benchmark TubeRollers are designed for the gentle, thorough mixing of a variety of containers, including Vacutainers™, bottles, test tubes, centrifuge tubes, and roller bottles. Both models feature variable speed control (2-80 rpm), suitable for the broadest range of mixing applications.
As the roller mechanism rotates through each complete revolution, the right side of each roller is gently elevated about 0.5 in (13mm) and returns to the horizontal starting position. This additional, gentle up/down motion provides a “wave” effect and guarantees that the entire sample is subjected to complete, thorough mixing, end to end. This built-in tilt feature provides a level of homogeneous mixing uniformity that cannot be matched by any stationary roller apparatus.
From blood collection tubes to roller bottles, Benchmark TubeRollers are the ideal choice for research, clinical laboratories, and doctors’ offices.
· Gentle rolling motion
· Smooth 5° tilting notion
· Accepts tubes and bottles from 8mm to 200mm
| Speed | Variable 2 to 80 rpm | |
| Motion | Simultaneous Roll & Tilt (+/-5°) | |
| Operating Temp. | 4°C to 40°C (ambient temperature) | |
| Individual Roller Dims | 1.2 x 12.5 in. / 3 x 32 cm | |
| Vessels Accepted | 8 mm to 200 mm diameter | |
| Rolling Spacing | 5mm on 35 mm centers | |
| Number of Rollers | 5/10 | |
| Load Capacity: (R3005) | 2 kg | |
| Load Capacity: (R3010) | 4 kg | |
| Dimensions (R3005) | 18 x 7 x 3.5 | |
| Dimensions (R3010) | 18 x 14 x 3.5 | |
| Weight | 11 lbs (5kg) / 17.6 lbs (8kg) | |
| Electrical | 115 or 230V 50-60Hz | |
| Power | 50W | |
| Warranty | 2 years |
