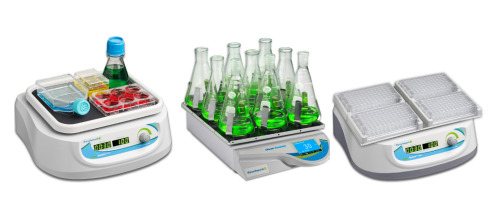

Benchmark Scientific Orbital Shaker
ORBI-SHAKER™ XL WITH TOUCH SCREEN DISPLAY AND RUBBER MAT PLATFORM (18"X18")
The Orbi-Shaker XL offers flask capacity that far exceeds that of most benchtop models. With a large 18 x 18 inch platform and a powerful, beltless motor drive, the Orbi-Shaker XL is capable of mixing up to five 2L flasks or nine 1L flasks simultaneously.
The included, non-slip rubber mat platform is ideal for low speed applications, while the convenient MAGic Clamp™ platform is also available for high speed mixing of Erlenmeyer flasks, tube racks or microplates. The MAGic Clamp™ allows for instant flask clamp exchange without the use of tools, screws or any other hardware.
· Large 18 x 18″, up to 5 x 2L
· Convenient, Benchtop design
· Horizontally circular 19mm orbit for aeration & mixing
· Instantly change flask clamps with MAGic Clamp™ accessories (PATENTED)
| Speed Range | Variable 30 to 300 rpm | |
| Speed Increment | 1 rpm | |
| Orbit | 19mm | |
| Timer | 1 min to 99 hr or countinous | |
| Platform Size | 18 x 18 in. / 45 x 45 cm | |
| Load Capacity | 5 x 2L or 9 x 1L / 65 lbs (30kg) | |
| Ambient Operating Temperature | +4°C to +65°C | |
| Dimensions (WxDxH) | 18.5 x 21.25 x 5 | |
| Dimensions (cm) | 47 x 54 x 12.5 | |
| Weight | 65 lbs (30kg) | |
| Electrical | 120 or 230V 50-60Hz | |
| Power | 50W | |
| Warranty | 2 years |
ORBI-SHAKER™ CO2-MP WITH REMOTE CONTROLLER AND MICROPLATE PLATFORM (13X12")x
The new Orbi-Shaker CO2-MP is designed for thorough, mixing of microplates in extreme environments, including CO2 incubators. It can withstand temperatures from 0 to 65°C and humidity levels up to 100%.
To avoid contamination, unintentional release of gas or deviations from protocol, both speed and time are set via the included remote control module. The remote controller can magnetically mount to the outer walls of the incubator and allows the user to set and adjust the shaker settings without opening the chamber door(s).
A 6 position microplate platform is included and secures both standard or deep well plates.
· Designed for use in CO2 Incubators and other extreme environments
· Remote control, adjust settings without exposing chamber
· Compact, 3mm orbit for thorough mixing of well plates
· Includes 6 position microplate platform
| Speed Range | 200 to 1200 rpm | |
| Speed Increment | 1 rpm | |
| Orbit | 3mm | |
| Timer | 1 min. to 99 hr or continuous | |
| Ambient Operating Temp. | +0°C to +65°C | |
| Platform Size | 13 x 12 in. / 33 x 30 cm | |
| Load Capacity | 6 x microplates | |
| Dimensions (in) | 11.9 x 13.4 x 3.5 | |
| Dimensions (cm) | 30 x 34 x 9 | |
| Weight | 25lbs (11.5kg) | |
| Cord Length | 60.5in / 154 cm | |
| Electrical | 115 or 230V 50-60Hz; 600W | |
| Warranty | 2 Years |
ORBI-SHAKER™ MP MICROPLATE SHAKER WITH 4 POSITION PLATFORM
The Orbi-Shaker MP™ is designed with a 3mm mixing orbit, optimized for thorough mixing of microplates and/or PCR plates. Up to four plates (standard or deep well) can be placed on the included platform and are instantly secured without the use of springs, clamps or tools.
· Digital speed control up to 1500 rpm
· 3mm orbit for thorough mixing in microplates
· Includes platform for up to 4 microplates
· Cold room and incubator safe
· Optional adapters for mixing microtubes
| Speed Range | 200 to 1500 rpm (max 1000 rpm with deep well plates) | |
| Speed Increment | 10 rpm | |
| Orbit | 3mm | |
| Timer | 1 min. to 99 hr or continuous | |
| Load Capacity | Up to 4 microplates | |
| Ambient Operating Temp. | +4°C to +65°C | |
| Dimensions (in) | 13.1 x 11.7 x 4.7 | |
| Dimensions (cm) | 33.3 x 29.8 x 12 | |
| Weight | 12 lbs (5.5kg) | |
| Electrical | Universal Voltage: 100 to 240V 50-60Hz; 250W | |
| Warranty | 2 years |
ORBI-SHAKER™ CO2 SHAKERS WITH REMOTE CONTROLLER
The new Orbi-Shaker CO2 series is designed for shaking, mixing& aeration applications in extreme environments, including CO2 incubators. It can withstand temperatures from 0 to 60°C and humidity levels up to 100%.
To avoid contamination, unintentional release of gas or deviations from protocol, all settings are adjusted via the included remote control module. This module can be stored outside of the chamber and connects to the shaker via a flat (1mm thickness) cable, that easily passes through a port or underneath an incubator door without compromising the seal. This allows for user adjustment of run time or mixing speed without opening the chamber door(s).
The instrument is supplied with a non-slip rubber mat platform. In addition, convenient MAGic Clamp™ platforms (of multiple sizes) are also available for use with Erlenmeyer flasks and test tube racks. The unique magnetic attachment method (PATENTED) has been widely recognized as the easiest way to instantly change between flask clamps of different sizes.
· Designed to fit and maximize capacity in most CO2 incubators
· Remote control, adjust without disrupting the CO2 environment
· Horizontally circular 19mm orbit for aeration & mixing
· Instantly exchange flask clamps with MAGic Clamp™ accessories (PATENTED)
| Speed Range | Fixed; 12 rpm (230V: 10 rpm) | |
| Tilt Angle | Fixed; +/- 8° | |
| Platform Size (1008/1308) | 10.5×7.5 in/12x12in | |
| Load Capacity | 4 lbs (1.8kg) | |
| Operating Temp. Range | +4°C to +50°C | |
| B3D1008 Dims (in/cm) | 10.5×7.5x8in/27x19x20 | |
| B3D1308 Dims (in/cm) | 12x12x8/30x30x20 | |
| Weight | 4.4lbs (2kg) | |
| Electrical | 115 or 230V 50-60Hz; 50W | |
| Warranty | 2 years |
ORBI-BLOTTER™ WITH NON SLIP RUBBER MAT PLATFORM (14X12")
The Orbi-Blotter™ features a gentle orbital motion with speed control down to as little as 3 rpm, making it the ideal orbital choice for low speed applications, such as blotting, washing, staining/destaining, etc. A large 14×12 in. work surface is included along with a non-slip rubber mat for holding trays, dishes, plates and other flat vessels.
An optional stacking platform can be purchased as an accessory, effectively doubling the usable work surface. The maintenance free, brushless motor is capable of loads up to 2kg and is safe for use in cold rooms and incubators.
· Gentle orbital motion for gel applications
· Horizontally circular 19mm orbit for aeration & mixing
· Large 14 x 12″ work surface
· Variable speed control from 3 to 70 rpm
· Incubator and cold room safe
| Speed Range | Variable 3 to 70 rpm | |
| Orbit | 19 mm | |
| Platform Size | 14 x 12 in. / 35 x 30 cm | |
| Load Capacity | 3 x 2L or 9 lbs (4kg) | |
| Ambient Operating Temp | +4°C to +50°C | |
| Dimensions (in) | 14 x 12 x 8 | |
| Dimensions (cm) | 35.5 x 30.5 x 20 | |
| Weight | 7.5lbs (3.4kg) | |
| Electrical | 115 or 230V 50-60Hz | |
| Power | 50W | |
| Warranty | 2 years |
ORBI-SHAKER™JR WITH RUBBER MAT PLATFORM (9.5"X8"), 100-240V (US PLUG)
The Orbi-Blotter features a gentle orbital motion with speed control down to as low as 3 rpm, making it the ideal orbital choice for low speed shaking applications.
· Digital speed control up to 300 rpm
· Horizontally circular 19mm orbit for aeration & mixing
· Extremely compact, perfect for low to medium capacity applications
· Instantly exchange flask clamps with MAGic Clamp™ accessories (PATENTED)
| Speed Range | 50 to 300 rpm | |
| Speed Increment | 10 rpm | |
| Orbit | 19mm | |
| Timer | 1 min. to 99 hr or continuous | |
| Platform Size | 9.5 x 8 in. / 24 x 20 cm | |
| Load Capacity | 4 x 1L or 9 lbs (4kg) | |
| Ambient Operating Temp | +4°C to +65°C | |
| Dimensions (in) | 13.1 x 11.7 x 4.7 | |
| Dimensions (cm) | 33.3 x 29.8 x 12 | |
| Weight | 12lbs (5.5kg) | |
| Electrical | Universal Voltage: 100 to 240V 50-60Hz; 250W | |
| Warranty | 2 years |
ORBI-SHAKER™ WITH TOUCH SCREEN DISPLAY AND RUBBER MAT PLATFORM (13"X12")
The powerful Orbi-Shaker is capable of mixing a 14lb load capacity up to speeds as high as 300 rpm. The standard platform (included) features a non-slip, rubber coated surface, ideal for tissue culture flasks, petri dishes and staining trays.
The convenient MAGic Clamp™ platform (PATENT PENDING) is also available for use with Erlenmeyer flasks and test tube racks. The unique, magnetic attachment method is the easiest way to instantly change between flask clamps of different sizes
· High capacity, up to 9 x 500ml, 5 x 1L or 2 x 2L
· Horizontally circular 19mm orbit for aeration & mixing
· Digital speed control up to 300 rpm
· Instantly exchange flask clamps with MAGic Clamp™ accessories (PATENTED)
| Speed Range | 30 to 300 rpm | |
| Speed Increment | 1 rpm | |
| Orbit | 19mm | |
| Timer | 1 min. to 99 hr or continuous | |
| Platform Size | 13 x 12 in. / 33 x 30 cm | |
| Load Capacity | 5 x 1L or 14 lbs (6.4kg) | |
| Operating Temp. Range | +4°C to +65°C | |
| Dimensions (in) | 11 x 16.2 x 3 in. | |
| Dimensions (cm) | 28 x 41 x 7.5 cm | |
| Weight | 25lbs (11.5kg) | |
| Electrical | 115 or 230V 50-60Hz; 50W | |
| Warranty | 2 years |
