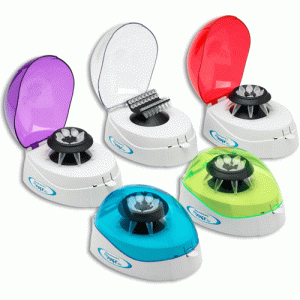

MyFuge™ Mini Centrifuge with 2 rotors C1008-GROUP
The MyFuge™ Mini centrifuge is a personal centrifuge that virtually fits in the palm of your hand. Ideal for quick spin downs of microtubes and PCR tubes, the MyFuge is extremely easy to use. Simply close the lid and the rotor instantly reaches 6,000 rpm. Open the lid, and the rotor quickly decelerates to a stop for removing samples.
An increased capacity, eight-position microtube rotor is included and comes installed. Also included is a second rotor for 0.2ml PCR tubes and strips which is stored (together with the rotor removal key) in a convenient compartment on the bottom of the centrifuge. When the rotor is not in use, storage in this compartment prevents loss or misplacement of the rotor.
- Clik-N-Lok™ INSTANT rotor attachment
- Eight position microtube rotor
- Storage compartment for PCR rotor & 0.5ml adapters
- Near silent operation
- Decelerates in just one second
- Four position PCR strip rotor
| Speed | 6000 rpm / 2000 xg | |
| Capacity | 8 x 1.5/2.0 ml 32 x 0.2 ml 4 x PCR Strips | |
| Dimensions | 5.7 x 6.9 x 4.5 in. (14.5 x 17.8 x 11.4 cm) | |
| Weight | 2.2 lbs / 1 kg | |
| Electrical | Universal Voltage 100 to 240V; 50-60Hz; 20W | |
| Warranty | 2 Years |
https://www.benchmarkscientific.com/wp-content/uploads/2024/07/C1008-NEW-MyFuge-Mini-Brochure-HR.pdf

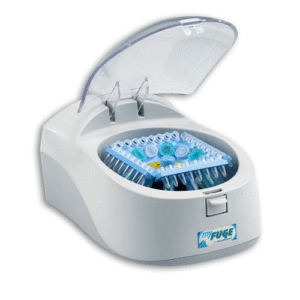

MyFuge™12 Mini Centrifuge 100-240V (US plug) C1012
Unlike traditional mini centrifuges, the new MyFuge™ 12 eliminates the need to change rotors when switching between microtubes and PCR strips. The included, unique COMBI-Rotor™ is all that is required for running 12 microtubes and/or 4 PCR strips.
With a fixed speed that produces 2,000 xg, this centrifuge is perfect for quick spin downs. Simply close the lid and the unit quickly ramps up to 5500 rpm. Open the lid, and the rotor quickly decelerates for removal of samples.
At just 5.5 inches wide and less than 4.5 inches tall, the MyFuge 12 truly is a personal microcentrifuge with unmatched capacity and flexibilty.
- COMBI-Rotor for tubes and strips
- Twice the capacity of most mini centrifuges
- Near silent operation
- Starts and stops with closing/opening of the lid
- Conserves valuable bench space
| Speed | 5500 rpm / 2000 xg | |
| Capacity | 12 x 1.5/2.0 ml 32 x 0.2 ml 4 x PCR Strips | |
| Dimensions | 5.75 x 8 x 4.25 in. (14.6 x 20.3 x 10.8 cm) | |
| Weight | 5 lbs / 2.3 kg | |
| Electrical | Universal Voltage 100-240V; 50-60Hz; 300W | |
| Warranty | 2 Years |
https://www.benchmarkscientific.com/wp-content/uploads/2024/07/C1012-MyFuge12-Brochure-HR-EM.pdf

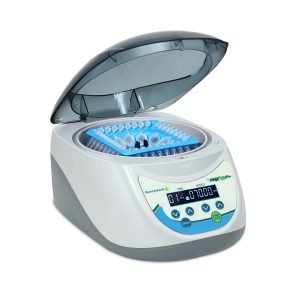

MyFuge™12 Plus Digital Mini Centrifuge C2212
The unique rotor design of the new MyFuge 12 Plus eliminates the need to switch rotors (or use a separate centrifuge) when changing between microtubes and PCR strips. The included, COMBI-Rotor allows for simultaneous centrifugation of up to 12 microtubes and/or 4 PCR strips.
In addition, the MyFuge 12 Plus features a large digital display with adjustable speed (up to 7,000 rpm) and a digital timer. With built in rcf conversion, speed can be set/displayed in rpm or rcf.
The MyFuge 12 Plus combines power with intuitive functionality making it the perfect companion in any laboratory.
- COMBI-Rotor for tubes and strips
- Digital control up to 7,000 rpm / 2,739 xg!
- Twice the capacity of traditional mini centrifuges
- Near silent operation
- Timer up to 99 mins.
| Speed | 7000 rpm / 2739 xg | |
| Capacity | 12 x 1.5/2.0 ml 32 x 0.2 ml 4 x PCR Strips | |
| Timer | 1-99 min. 59 sec. | |
| Dimensions | 7.6 x 9 x 4.72 in. 19.4 x 23 x 12 cm. | |
| Weight | 4.4 lbs / 2 kg | |
| Electrical | 100-240V, 50-60 Hz, 45W | |
| Warranty | 2 Years |
https://www.benchmarkscientific.com/wp-content/uploads/2023/08/C2212-MyFuge12-Plus-Brochure-HR-EM-1.pdf

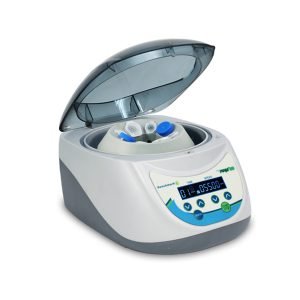

MyFuge™ 5D Digital Mini Centrifuge C2205
The myFuge™ 5D digital mini centrifuge includes a four position rotor that accepts a variety of 5ml tubes (including 5ml snap-cap and screw-cap centrifuge tubes, as well as 5ml blood collection tubes). In addition, the rotor has four positions for positions for standard microtubes (1.5/2.0ml) and offers optional adapters for 2ml cryotubes, 0.2ml PCR tubes, and 0.5ml microtubes, making it one of the most versatile and compact centrifuges in its class.
The myFuge 5D offers digital speed control (up to 5,500 rpm). Timer is also controlled (up to 99 min.) with a safety interlock to stop the centrifuge if the lid is opened during operation. With built in rcf conversion, speed can be set/displayed in rpm or rcf. The myFuge 5D also comes with a 2-year warranty.
- Includes rotor for all common centrifuge tubes up to 5ml
- Digital control up to 5,500 rpm / 1,690 xg
- Conserves valuable bench space
- Includes adapters for common blood tubes (12 x 75 mm)
- Timer up to 99 mins.
| Speed | 5500 rpm / 1690 xg | |
| Capacity | 4 x 5 ml 4 x 1.5/2.0 ml 4 x 1.8-5ml blood tubes (12mm x 75mm) | |
| Timer | 1-99 min. 59 sec. | |
| Dimensions | 7.6 x 9 x 4.72 in. 19.4 x 23 x 12 cm. | |
| Weight | 4.4 lbs / 2 kg | |
| Electrical | 100-240V, 50-60 Hz, 45W | |
| Warranty | 2 Years |
https://www.benchmarkscientific.com/wp-content/uploads/2023/08/C2205-MyFuge-5D-Brochure-HR-EM-1.pdf

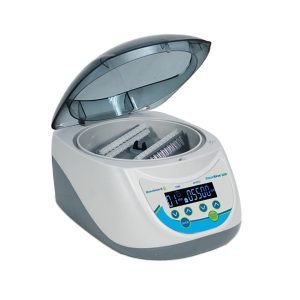

StripSpin™ 12D Digital Mini Centrifuge 100-240V (US plug) C2248
The new StripSpin 12D digital mini centrifuge from Benchmark is uniquely designed for centrifugation of 12 position PCR strips. It features digital speed control up to 5,500 rpm, timer control up to 99 min., and a safety interlock to stop the centrifuge if the lid is opened during operation.
With built in rcf conversion, speed can be set/displayed in rpm or rcf, the StripSpin 12D is the perfect solution for centrifugation of up to 4 x 12-position high efficiency PCR strips (or 48 x 0.2ml tubes) and includes a 2 year warranty.
- Unique rotor accepts 12-position PCR strips
- Digital control up to 5,500 rpm
- “Mini” sized, less than 8 inches wide
- Timer up to 99 mins.
| Speed | 5500 rpm / 1690 xg | |
| Capacity | 4 x 12-position PCR strips 48 x 0.2 ml | |
| Timer | 1-99 min. 59 sec. | |
| Dimensions | 7.6 x 9 x 4.72 in. 19.4 x 23 x 12 cm. | |
| Weight | 4.4 lbs / 2 kg | |
| Electrical | 100-240V, 50-60 Hz, 45W | |
| Warranty | 2 Years |
https://www.benchmarkscientific.com/wp-content/uploads/2023/08/C2248-StripSpin-12D-Brochure-HR-EM-1.pdf

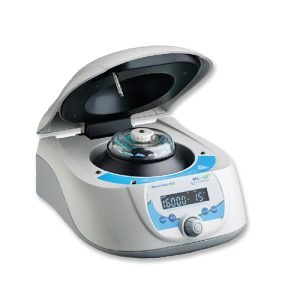

MC-12 Microcentrifuge with 12 place rotor C1612
Benchmark’s MC-12 is the first and only compact microcentrifuge capable of achieving centrifugal speeds up to the critical threshold of 16,000 xg, often held as the standard for many molecular biology/DNA protocols. Its’ brushless, maintenance free drive system makes it powerful, yet compact enough to allow each work station to be fully equipped with a personal centrifuge.
The MC-12 defines a new class of microcentrifuge: compact, quick, powerful and affordable. All aspects of microcentrifuge performance were taken into consideration and no compromises were made. In addition to its unsurpassed speed, the MC-12 also delivers shortened acceleration/deceleration times, whisper quiet operation and its computer-designed airflow pattern minimizes sample temperature increases during longer runs at high speeds.
All operating parameters are set using a single, conveniently located control knob and the large, bright LCD provides a clear indication of time and rpm or g-force. A separate momentary spin button permits instant spin downs, without setting or disturbing any preset parameters. The aircraft grade aluminum rotor accepts 1.5 to 2.0ml tubes directly, as well as 0.5ml and 0.2ml tubes with optional adapters. For applications requiring sub-ambient temperatures, the MC-12 is cold room safe.
- 12 tube capacity / Up to 16,100 xg
- Less than 9 in. wide
- Quick deceleration
- Whisper quiet operation
| Speed | 500 to 15000rpm (up to 16100 xg) | |
| Capacity | 12 x 1.5/2.0 ml | |
| Acceleration | 10 seconds | |
| Deceleration | 12 seconds | |
| Speed increment | 100 rpm or 100 rcf | |
| Timer | 20 sec. to 99 min. / cont. | |
| Momentary | Yes | |
| Dimensions | 8.7 x 10.6 x 5.9 in. (22 x 27 x 15 cm) | |
| Weight | 10.5 lbs / 4.8 kg | |
| Electrical | 115V or 230V 50-60 Hz; 100W | |
| Warranty | 2 Years |
https://www.benchmarkscientific.com/wp-content/uploads/2020/10/C1612-MicroFue-MC12-Brochure-HR-EM..-1.pdf

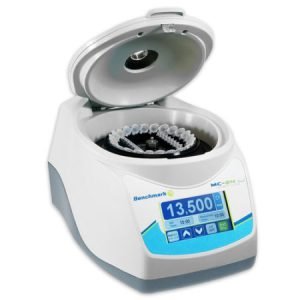

MC-24™ Touch High Speed Microcentrifuge with COMBI-Rotor C2417
Benchmark’s MC-24 Touch is the first microcentrifuge in its class to feature touch screen control. In addition to the next generation control panel, the centrifuge also offers high speed (up to 13,500 rpm/16,800 xg) and a unique COMBI-Rotor™ with lid that accepts both standard microtubes (1.5/2.0ml) and PCR tubes/strips (0.2ml), making this the perfect partner for any molecular biology laboratory.
The large, color touch screen shows actual speed (in rpm or rcf) along with set and remaining time. Up to 9 speed/time profiles can be stored in memory and the home screen displays a “mySpin” icon for instant recalls a designated favorite profile.
Supplied with Benchmark’s unique COMBI-Rotor™, the MC-24 Touch will accept 24×1.5/2.0ml tubes, 2 strips of 0.2ml tubes (16×0.2ml), and up to 12x spin column kits without requiring separate adapters. There is also an optional 8 place rotor for 5ml and cryo tubes. Samples are kept cool, even during extended runs at the maximum speed setting by a proprietary air flow system that moves air evenly and quietly throughout the chamber.
The MC-24 Touch is cold room safe and carries a 2 year warranty.
- Full Color Touch Screen
- mySpin™ 1 button program recall
- COMBI-Rotor™ accepts tubes and strips (lid included)
- Compact design, 9 x 12 x 7.75 in.
- Unique air-flow system, keeps samples cool
- Optional rotors for 5ml and cryo tubes
| Speed | 200 – 13500rpm (100 to 16800xg) | |
| Capacity | 24 x 1.5/2.0 ml 2 x PCR Strips (16 x 0.2 ml) 8 x 5 ml 12 x 2ml Spin Column 8 x Cryovials | |
| Speed increment | 100 rpm or 100 rcf | |
| Timer | 20 sec. to 99 min. / cont. | |
| Momentary | Yes | |
| Dimensions | 9 x 12 x 7.75 in. (23 x 30.5 x 19.7 cm) | |
| Weight | 14 lbs / 6.4 kg | |
| Electrical | 115V or 230V 50-60 Hz; 100W | |
| Warranty | 2 Years |
https://www.benchmarkscientific.com/wp-content/uploads/2023/10/MC-24-Series-4-page-HR-EM.pdf

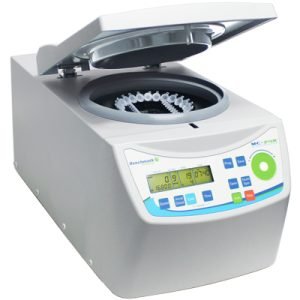

MC-24R™ Refrigerated High Speed Microcentrifuge C1417-R Group
Benchmark’s flagship MC-24R refrigerated microcentrifuge features a next generation touch control panel, high speed centrifugation (up to 13,500 rpm / 16,800 xg) and a unique COMBI-Rotor™ that accepts both standard microtubes (1.5/2.0 ml) and PCR tubes/strips (0.2 ml), eliminating the need for a dedicated PCR strip/tube rotor. These features combine to make this the perfect partner for any molecular biology laboratory.
The MC-24R includes Benchmark’s unique COMBI-Rotor™ and features an optional hermetically sealed rotor, and a four-place PCR strip rotor.
The MC-24R features adjustable acceleration/decelerations rates, real time rpm and rcf conversion, program storage up to 99, and a unique status indicator light. The status indicator light informs the user if the unit is running, in standby, or has completed a run. The MC-24R is a compact and convenient refrigerated centrifuge perfectly suited to be the workhorse for any lab.
- Included COMBI-Rotor™ accepts tubes and strips (lid included)
- Powerful refrigeration, as low as -20°C
- Touch operation
- Up to 16,800 xg!
- Status indicator light
| Speed | 200 – 13,500rpm (100 to 16,800xg) | |
| Capacity | 24 x 1.5/2.0 ml + 2 x PCR Strips (w/ COMBI-rotor) 4 x PCR Strips (32 x 0.2 ml) | |
| Speed increment | 10 rpm or 10 rcf | |
| Timer | 20 sec. to 99 hrs. / cont. | |
| Temperature: | -20°C to +40°C | |
| Momentary | Yes | |
| Dimensions | 11 x 21.6 x 11.6 in. (28 x 55 x 29 cm) | |
| Weight | 73 lbs / 33 kg | |
| Electrical | 115V or 230V 50-60 Hz; 350W | |
| Warranty | 2 Years |
https://www.benchmarkscientific.com/wp-content/uploads/2024/04/MC-24-Series-4-page-HR-EM.pdf

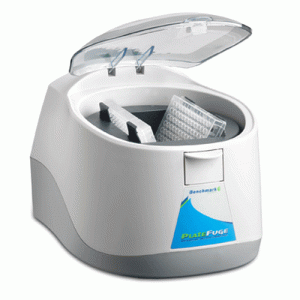

PlateFuge™ MicroPlate MicroCentrifuge with rotor and plate carriers C2000
Benchmark’s PlateFuge™ is the first “mini” sized centrifuge with a swing out
rotor for microplates. Centrifuging plates before PCR ensures all reactants are
in the bottom of the wells for proper concentrations and improved yields.
In spite of its remarkably small footprint (9×10 in.), the PlateFuge™ includes a
uniquely designed, swing out rotor (patent pending) capable of securing
2 microplates. The easily accessible rotor chamber includes two plate carriers
that rest at a 75° angle. This allows plates to be inserted confidently without
sealing tapes or caps. Upon closing the lid of the centrifuge, the rotor
accelerates and the centrifugal force “swings” the plates into a horizontal
position. Any droplets on the walls of the plate quickly concentrate into
the well bottoms.
With a g-force of 600 xg, most samples can be spun down in less than 20 seconds.
To end a run, simply open the lid and the automatic, electric brake brings the
rotor to a quick, smooth stop in just 4 seconds. Plates can then be easily removed
from the rotor.
- Quickly spins down droplets in PCR plates
- Unique swing-out rotor design prevents spillage (patented)
- Half the size of traditional centrifuges
- Accepts all popular types of PCR plates (skirted, semi, and non) and most microtiter plates
| Speed | 2550 rpm / 600 xg | |
| Capacity | 2 x 2 PCR Plates 2 x microtiter plates (up to 25 mm) 24 x 0.2 ml PCR strips | |
| Deceleration | 4 seconds | |
| Dimensions | 9.2 x 10.2 x 7.75 in. (23 x 26 x 19.7 cm) | |
| Weight | 9 lbs / 4.1 kg | |
| Electrical | 115V or 230V; 50-60Hz; 250W | |
| Warranty | 2 Years |
https://www.benchmarkscientific.com/wp-content/uploads/2024/02/C2000-PlateFuge-Brochure-HR.pdf

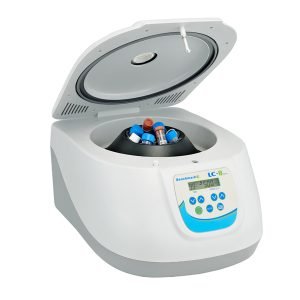

LC-8 Lab Centrifuge with 8 x 15ml rotor C3100- Group
Benchmark’s LC-8 series of laboratory centrifuges is uniquely designed to meet a wide range of applications in both the clinical and research laboratory. An eight position rotor is included and designed to directly accept 10ml and 15ml test-tubes (conical or round bottom), while optional adapters are also available for use with all popular sizes of blood collection and culture tubes. Unlike most compact centrifuges in this class, the rotor can be easily removed from the chamber for cleaning.
The back-lit, liquid crystal display provides full control over the set run time and rotational speed. The rotational speed can be set/viewed in rpm or rcf and acceleration/deceleration levels can be easily adjusted in the advanced settings mode.
To ensure safety, the digital microprocessor ensures that the lid has been closed and that the safety lid lock is engaged prior to starting a centrifugation cycle. In addition, an advanced imbalance detection system constantly monitors the balance and vibration, automatically bringing the rotor to a stop if an imbalance is detected.
- Digital Speed control up to 5,000 rpm
- Safety lid-lock, prevents opening lid until rotor stops
- Unique air-flow design keeps samples cool
- 8 tube capacity, for tubes up to 15ml
| Speed | 400-3500 rpm / 1500 xg (400-5000 rpm / 3070 xg) | |
| Capacity | 8 x 15 ml | |
| Accel / Decel | 9 sec. / 25 sec. (19 sec. / 39 sec.) | |
| Speed increment | 100 rpm or 100 rcf | |
| Timer | 20 sec. to 99 min. / cont. | |
| Momentary | Yes | |
| Dimensions | 11.6 x 14.4 x 8.3 in. (29.5 x 36.5 x 21 cm) | |
| Weight | 15 lbs / 6.8 kg | |
| Electrical | 115V or 230V 50-60Hz; 150W | |
| Warranty | 2 Years |
https://www.benchmarkscientific.com/wp-content/uploads/2022/01/C3100-LC-8-Series-Brochure-HR-EM.pdf
