- ADAM™ rWBC / residual White Blood Cell Counters
- ADAMII™ / Fluorescence Stem Cell Counter

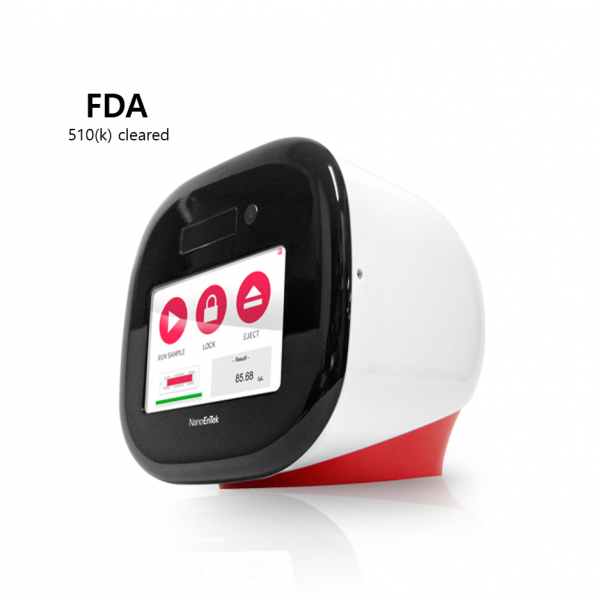

ADAM-rWBC2
Residual Leukocyte Counter
– 45 seconds for counting residual leukocyte
– Easy to use
– Accurate and reliable result (R2 correlation value is more than 0.99 against lab results)
45 seconds for counting residual leukocyte
All procedures are automated once the sample loaded slide is inserted into the device.
It takes only 45 seconds to count the residual leukocytes.
In combination with a disposable microfluidic slide, the operation of ADAM-rWBC2 is extremely simple and cost-effective.
Warm-up time and messy cleaning is no longer necessary.
New technology behind the Accuracy of ADAM-rWBC2
ADAM-rWBC2 is a precise, automated optical system capable of fluorescent image analysis. ADAM-rWBC2 use propidium iodide (PI) staining.
The ADAM-rWBC2 automatically focuses on the slide and the stained cells are taken by the movement of the automatic X-Y stage.
The ADAM-rWBC2 analyzes and reports a result in using integral image analysis software.
By averaging results, ADAM-rWBC2 produces accurate counting results in the analysis of low concentration of leukoreduced blood products.
Automated cell counting eliminates user bias or subjective interpretation
that can be found when counting residual leukocytes using other methods.
Substantially equivalent to flow cytometry
Refer to the comparison of residual blood cell enumeration methods between flow cytometry (Leucocount)
and ADAM-rWBC series in using different amounts of white blood cells aliquots.
This comparison was performed using both RBC and platelet samples.
Product name / Cat. No:ADAM-rWBC2 / ADAM-rWBC2
Voltage: DC 12V
Detection method: 4W Green LED
Weight: 7.0 kg
Size (LxWxH): 277 X 276 X 270 mm
Data export: PC connection
Analysis time: 45 sec/test

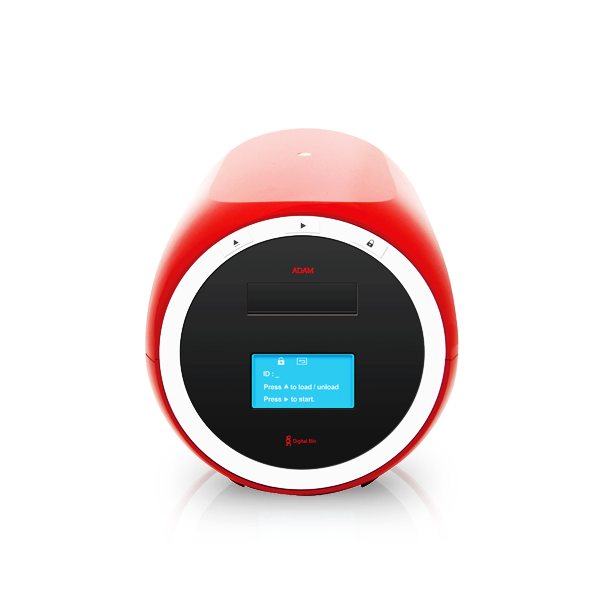

ADAM-rWBC
Residual Leukocyte Counter
– 3 minutes for counting residual leukocyte
– Easy to use
– Accurate and reliable result
ADAM-rWBC ensures the number of residual leukocyte meets the standards used to minimize complications associated with the transfusions performed in hospitals. All procedures are automated once the sample loaded slide is inserted into the device. It takes only 3 minutes to count the residual leukocytes. In combination with a disposable microfluidic slide, the operation of ADAM-rWBC is extremely simple and cost-effective. Warm-up time and messy cleaning are no longer necessary.
New technology behind the Accuracy of ADAM-rWBC
Product name / Cat. No: ADAM-rWBC / ADAM-rWBC
Voltage: 100-240 V~, 50/60 Hz
Current: Max. 1.8A, Max 100W
Fuse: F3. 15AL250V
Object lens: 4X
LED: 4W Green LED, IEC 62471:2006
CCD Camera: B/W CCD
Filter: Excitation filter, Dichroic filter, Emission filter
Weight: 9 Kg
Size: 220 x 375 x 250 mm (WxLxH)
Degree of protection: IPX0

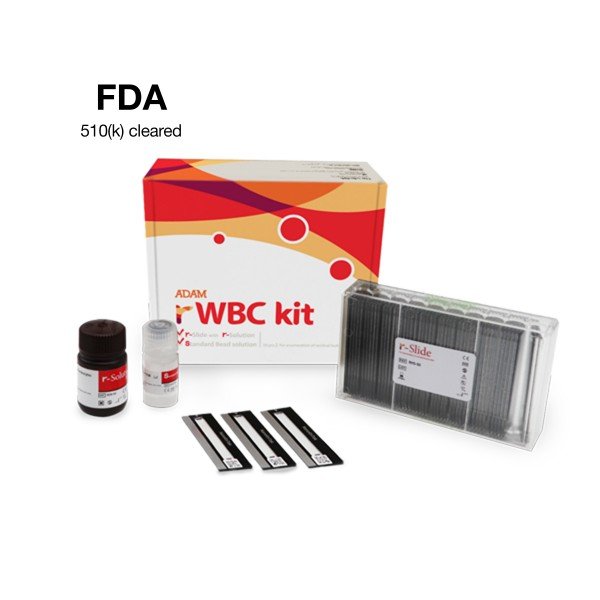

ADAM-rWBC Kit
Disposables for ADAM-rWBC series
ADVANTAGE
Simple and easy to use
The ADAM-rWBC Kit consists of standard bead solution, r-solution, and r-slide.
For absolute counting of residual leukocytes, appropriate sample preparation is needed.
After mixing the sample with the provided r-Solution, load the sample into the r-Slide.
Then, the number of total leukocytes will be automatically calculated and displayed on the ADAM-rWBC series.
Product name / Cat. No: ADAM rWBC Kit / AD1K-050
Quantity: 50 tests / kit
Staining method: PI (Propidium lodide)
Sample loading volume: 100 µL
Contents: r-Slide: 50 slides / r-Solution: 25 ml x 1 bottle / Standard bead solution: 7 ml x 1 bottle
ADAM-rWBC Kit
Disposables for ADAM-rWBC HT
– Disposable r-Slide
– 6 months shelf life
– Reduces exposures to hazardous blood and contamination
ADAM-rWBC HT is based on the staining methods for the DNA of mammalian cells using the fluorescent dye, Propidium Iodide (PI).
When used with RNase, PI stains only cellular DNA as the nucleic acid dye.
In the case of blood samples, white blood cells (with DNA-containing nuclei) are stained while platelets and red blood cells,
(without nuclei) are not stained.
ADVANTAGE
Simple and easy to use
The ADAM-rWBC Kit consists of standard bead solution, r-solution, and r-slide. For absolute counting of residual leukocytes, appropriate sample preparation is needed. After mixing the sample with the provided r-Solution, load the sample into the r-Slide. Then, the number of total leukocytes will be automatically calculated and displayed on the ADAM-rWBC HT.
Product name / Cat. No: ADAM-rWBC Kit (bulk) / ADHK-050
Quantity: 50 tests / kit
Staining method: PI (Propidium lodide)
Sample loading volume: 100 µL
Contents: r-Slide: 50 slides / r-Solution: 25 ml x 1 bottle / Standard bead solution: 7 ml x 1 bottle

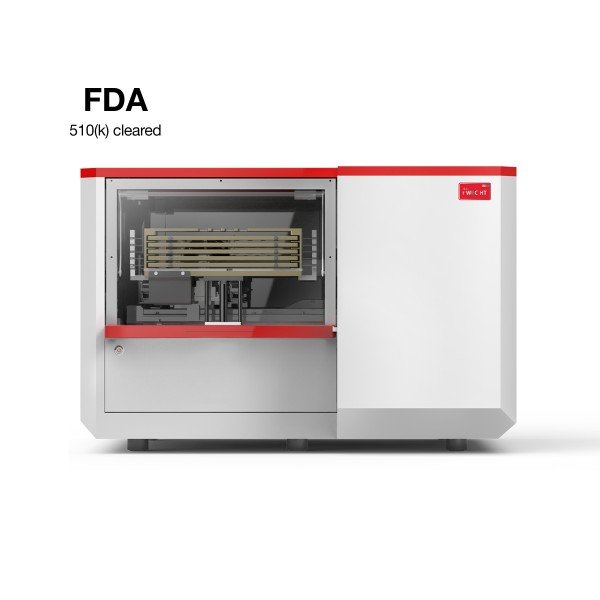

ADAM-rWBC HT
residual White Blood Cell Counter
– 50min/50tests
– Easy to use
– Constant reliable result
ADAM-rWBC HT automatically counts the number of residual white blood cells (rWBCs) in leukoreduced blood products for transfusion.
It ensures the number of residual leukocyte meets the standards used to minimize complications associated
with the transfusions performed in blood banks and hospitals.
Automated cell counting eliminates user bias or subjective interpretation
that can be found when counting residual White Blood Cells using other methods.
ADAM-rWBC HT stains nuclei of White Blood Cell using Propidium Iodide (PI) and detects its fluorescent expression.
It automatically focuses on the slide and counts the cells from images,
then averages out the counting results to increase the accuracy and reliability.
Walk-away!
ADAM-rWBC HT, eliminates the need for the following items.
Max. 50 samples at a time
ADAM-rWBC HT counts up to 50 samples at a time, and it takes 45 seconds to count 1 sample.
It counts residual white blood cells (rWBCs) with an unparalleled ease and speed.
All procedures are automated once the sample loaded slides are inserted into the device.
Easy and Simple procedure
Easy and simple sample prep process for multi countings.
In combination with a disposable microfluidic slide, the operation of ADAM-rWBC HT is extremely simple and cost-effective.
Substantially equivalent to flow cytometry
and ADAM-rWBC series in using different amounts of white blood cells aliquots.
This comparison was performed using both RBC and platelet samples.
Analysis time: 45 sec/test (50 min/50 tests)
Measuring range: 1-100 cells /μL
Voltage: 100-240V~
Power consumption: 1,000 W
Weight: 120 Kg
Size: 950 mm (W) x 700 mm (D) x 845 mm (H)
