| SKU | HI98131 |
| Name | GroLine Hydroponic Waterproof Pocket pH/EC/TDS/Temperature Tester – HI98131 |
| pH Range | 0.00 to 14.00 pH |
| pH Resolution | 0.01 pH |
| pH Accuracy | ?0.1 pH |
| pH Calibration | automatic, at one or two points using standard buffers (pH 4.01, 7.01,10.01); one point calibration using quick calibration solution |
| pH Temperature Compensation | automatic |
| EC Range | 0.00 to 6.00 mS/cm |
| EC Resolution | 0.01 mS/cm |
| EC Accuracy | ?2% F.S. |
| EC Calibration | automatic, one-point at 1.41 mS/cm or 5.00 mS/cm; one point calibration using quick calibration solution |
| TDS Range | 0 to 3000 ppm (500 CF); 0 to 3999 ppm (700 CF) |
| TDS Resolution | 10 ppm (mg/L) |
| TDS Accuracy | ?2% F.S. |
| TDS Calibration | done through conductivity |
| EC/TDS Temperature Compensation | EC/TDS: automatic with ? set at 1.9%/?C |
| EC to TDS Conversion Factor | 0.5 (500 ppm) or 0.7 (700 ppm) |
| Cell Type | amperometric two pole |
| Temperature Range | 0.0 to 60.0?C / 32.0 to 140.0?F |
| Temperature Resolution | 0.1?C / 0.1?F |
| Temperature Accuracy | ?0.5?C /?1?F |
| Automatic Shut-Off | auto-off after 8 minutes of non-use |
| Battery Type/Life | 1.5V (4) / approx. 100 hours of continuous use |
| Environment | 0 to 50?C (32 to 122?F); RH max 100% |
| Dimensions | 163 x 40 x 26 mm (6.4 x 1.6 x 1.0”) |
| Weight | 100 g (3.5 oz.) |
Testers
pH/ORP
ISE
EC/TDS/Salinity
Dissolved Oxygen
Multiparameter
Autosampler Titrators
Karl Fischer Titrators
Mini Titrators
Potentiometric Titrators
Benchtops
Checker Colorimeters
Portable Photometers
Spectrophotometers
Benchtops Turbidimeters
Portable Turbidimeters
Testers
Thermocouples
Thermistors
Pt100
Monitors
Backpacks Labs
Single Parameters
ABS Plastic
Stainless Steel
Monitors
Dataloggers
Controllers and Transmitters
Dosing Pumps
Mini Controllers
PCA Chlorine
Probes
Swimming Pool and Spa Controllers
pH
ORP
ISE
TDS
Dissolved Oxygen
Temperature
Multiparameter
Bluetooth
Photometric Probes
Checker HC
Chemical Test Kits
Photometers
Titration
Calibration Solutions
Fill Solutions
Storage Solutions
Cleaning Solutions
Sample Prep Solutions
ISE Solutions
Titration Solutions
CAL Check Standards
- Checker HC Colorimeters
- COD Meters
- Dissolved Oxygen
- ISE Meters
- Lab Supply
- Multiparameter Meters
- pH Meters
- Photometers
- Resistivity
- Testers
- Thermometers
- Titrators
- Turbidity Meters
Multiparameter Testers

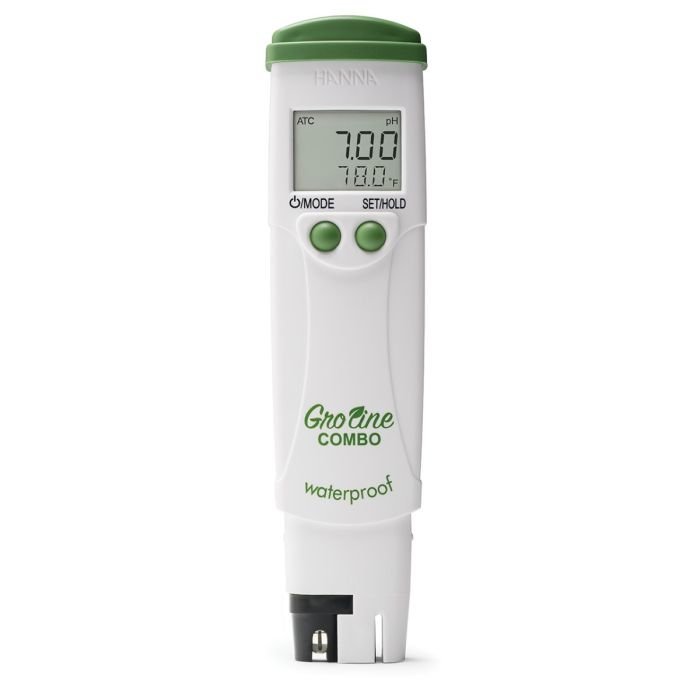

GroLine Hydroponic Waterproof Pocket pH/EC/TDS/Temperature Tester - HI98131
Description
Additional information
Specifications
Description
The HI98131 GroLine tester features a large multi level LCD which displays both pH, EC or TDS and temperature readings simultaneously. The pH readings are displayed with a 0.01 resolution and with an accuracy of ±0.05 pH, while the EC and TDS readings are displayed with a 0.01 mS/cm and 10 ppm (mg/L) resolution and 2% full scale accuracy. The EC range of the HI98131 is from 0.01 to 6.00 mS/cm and TDS is from 0 to 3000 ppm using a 0.5 conversion factor. The HI98131 also offers the option to use a 0.7 (700 ppm) EC to TDS conversion factor. An exposed temperature sensor allows for rapid temperature compensated measurements of EC and TDS. The LCD screen has indicators for calibration status and stability. The battery percent level is displayed at start up alerting the user to the remaining battery power that is available. The HI98131 is a versatile pocket meter designed for hydroponics, greenhouse and agriculture applications.
Simplified one button calibration
One or two point pH calibration is automatic to a pre-programmed buffer set (4.01, 7.01 and 10.01) or single point pH and EC calibration with the Hanna Quick Cal calibration solution. To perform a quick cal calibration, simply press and hold the left power/mode button while in measurement mode for three seconds and let go to enter calibration mode. Once both pH and EC are calibrated “CAL OK” is displayed and the meter returns to measurement mode.
HI73127 Replaceable pH electrode
The HI99131 is supplied with the HI73127 replaceable pH electrode. This electrode features an extractable junction that can be pulled 1/8″ out to clear any clogging that results in drifting and erratic readings.
- 3 sensors in a single meter
pH electrode with extractable junction
Amperometric EC/TDS sensor
Exposed temperature probe for faster EC/TDS readings
- Waterproof
Designed to withstand the humidity of a growing environment
- Wide pH Range
pH range is from 0.00 to 14.00 pH
- Selectable EC to TDS conversion factor
Choice of either a 0.5 or 0.7 conversion factor
0.5 (500 CF) conversion factor is for an EC reading of 1000 μS/cm = 500 ppm
0.7 (700 CF) conversion factor is for an EC reading of 1000 μS/cm = 700 ppm
- Automatic Temperature Compensation
All readings are compensated for variations in temperature
Temperature displayed in ℃ or ℉ along with pH, EC or TDS reading
- Stability indicator
Meter displays a clock tag that will disappear when the reading has achieved stability
- HOLD button
Freezes reading on the display to allow recording of measurement
- BEPS (Battery Error Prevention System
Meter will automatically shut off if there is not enough power to get an accurate measurement
- Battery % level at startup
- Low Battery Indicator
When the level is below 5%, the battery symbol on the LCD blinks to indicate a low battery condition.
- Auto-off
Selectable time before meter will automatically shuts off to conserve battery life. Options are after 8 minutes, 60 minutes , or disabled.
Additional information
The HI98131 is a slim, lightweight, and waterproof pocket sized meter that measures pH, conductivity (EC), total dissolved solids (TDS) and temperature. The meter operation is simplified with two buttons. One is used for on/off and for calibration while the other is used to switch between the measurement modes. The HI98131 has advanced features including a selectable EC to TDS conversion factor (0.5 – 500 ppm and 0.7 – 700 ppm).
- 3 parameters, pH, EC/TDS and temperature, in one meter
- Quick Cal Mode to calibrate pH and EC/TDS with one solution
- TDS Conversion Factor selectable between 0.5 (500 ppm) and 0.7 (700 ppm)
Specifications

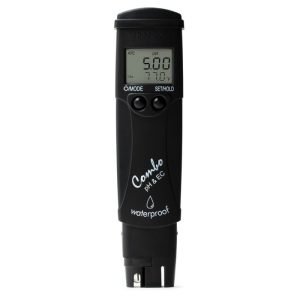

Combo pH/Conductivity/TDS Tester (High Range) - HI98130
Description
Additional information
Specifications
Description
pH electrode with extractable cloth junction
Amperometric EC/TDS sensor
Exposed temperature probe for faster EC/TDS readings
Compact, waterproof design fits right in your pocket so you can take it anywhere
Waterproof and designed to float in water
Automatic Temperature Compensation (ATC), displays temperature in ℃ or ℉
Large LCD displays stability indicator, low-battery indicator, and calibration tags
BEPS (Battery Error Prevention System with three user controlled automatic shutoff settings
Additional information
The HI98130 makes measuring pH quick and easy! This lightweight, waterproof tester offers high accuracy pH, high range EC/TDS (0.00 to 20.00 mS/cm EC/ 0.00 to 10.00 ppt TDS) and temperature measurements in a single handheld unit! No more switching between meters for your routine measurements. Great for hydroponics, aquariums, pools, & ponds
- Wide range of 0.00 to 14.00 pH
- Replaceable pH electrode with extractable junction
- Selectable EC to TDS conversion factor of either a 0.45 or 1.0 β (BETA)
Specifications
| SKU | HI98130 |
| Name | Combo pH/Conductivity/TDS Tester (High Range) – HI98130 |
| pH Range | 0.0 to 14.0 pH |
| pH Resolution | 0.01 pH |
| pH Accuracy | ?0.05 pH |
| pH Calibration | automatic, at one or two points with two sets of standard buffers (pH 4.01 / 7.01 / 10.01 or pH 4.01 / 6.86 / 9.18) |
| pH Temperature Compensation | automatic |
| EC Range | 0.00 to 20.00 mS/cm |
| EC Resolution | 0.01 mS/cm |
| EC Accuracy | ?2% F.S. |
| EC Calibration | automatic, one-point at: 12.88 mS/cm |
| TDS Range | 0.00 to 10.00 ppt (g/L) |
| TDS Resolution | 0.01 ppt (g/L) |
| TDS Accuracy | ?2% F.S. |
| TDS Calibration | automatic, one-point at: 6.44 ppt (g/L) |
| EC/TDS Temperature Compensation | automatic with ? adjustable from 0.0 to 2.4% / ?C |
| EC to TDS Conversion Factor | 0.45 to 1.00 |
| Temperature Range | 0.0 to 60.0?C / 32.0 to 140.0?F |
| Temperature Resolution | 0.1?C / 0.1?F |
| Temperature Accuracy | ?0.5?C /?1?F |
| pH Electrode | HI73127 (replaceable; included) |
| Battery Type/Life | 1.5V (4) / approx. 100 hours of continuous use, auto-off after 8 minutes of non-use |
| Environment | 0 to 50?C (32 to 122?F); RH max 100% |
| Dimensions | 163 x 40 x 26 mm (6.4 x 1.6 x 1.0”) |
| Weight | 100 g (3.5 oz.) |

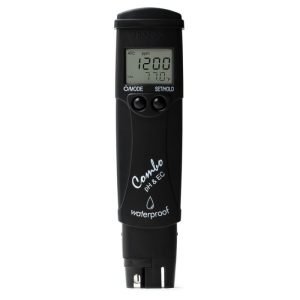

Combo pH/Conductivity/TDS Tester (Low Range) - HI98129
Description
Additional information
Specifications
Download
Description
The HI98129 is a highly accurate, waterproof pH meter that can also measure EC/TDS in the low range (0 to 3999 µS/cm EC/ 0 to 2000 ppm TDS) and temperature. This floating, waterproof combination tester has an easy to read, LCD and an automatic shut-off. In addition, pH and EC/TDS readings are automatically temperature compensated (ATC) to prevent temperature-related variations in your measurements. For EC/TDS readings, the EC/TDS conversion factor (CONV) is selectable by the user, as well as the temperature compensation coefficient β (BETA).
Replaceable pH Electrode Cartridge
The HI98129 tester features an easy to replace pH electrode cartridge with an extendable cloth junction. The extendable cloth junction helps increase electrode life and the replaceable pH cartridge means that this tester does not need to be thrown away when the pH sensor is exhausted. Also, the sturdy, snap-in connector means there are no pins to bend or break!
High Accuracy EC/TDS Graphite Probe
The graphite conductivity probe provides greater accuracy because it cannot be contaminated by salt deposits in the solution. The exposed temperature sensor provides fast response times and guarantees highly accurate temperature compensated readings.
- 3 sensors in a single meter
pH electrode with extractable junction
Amperometric EC/TDS sensor
Exposed temperature probe for faster EC/TDS readings
- Waterproof
Designed to float if accidently dropped in sample
- Wide pH Range
pH range is from 0.00 to 14.00 pH
- Selectable EC to TDS conversion factor
Choice of either a 0.45 or 1.0 conversion factor
- Automatic Temperature Compensation
All readings are compensated for variations in temperature
Temperature displayed in ℃ or ℉ along with pH, EC or TDS reading
- Stability indicator
Meter displays a clock tag that will disappear when the reading has achieved stability
- HOLD button
Freezes reading on the display to allow recording of measurement
- BEPS (Battery Error Prevention System
Meter will automatically shut off if there is not enough power to get an accurate measurement
- Battery % level at startup
- Low Battery Indicator
When the level is below 5%, the battery symbol on the LCD blinks to indicate a low battery condition.
- Auto-off
Auto-off feature automatically shuts off meter after 8 minutes of non-use to maximize battery life
Additional information
The HI98129 makes measuring pH quick and easy! This lightweight, waterproof tester offers high accuracy pH, low range EC/TDS (0 to 3999 µS/cm EC/ 0 to 2000 ppm TDS) and temperature measurements in a single handheld unit! No more switching between meters for your routine measurements.
- Waterproof
- Replaceable pH electrode with extractable junction
- Automatic calibration
Specifications
| SKU | HI98129 |
| Name | Combo pH/Conductivity/TDS Tester (Low Range) – HI98129 |
| pH Range | 0.00 to 14.00 pH |
| pH Resolution | 0.01 pH |
| pH Accuracy | ?0.05 pH |
| pH Calibration | automatic, at one or two points with two sets of standard buffers (pH 4.01 / 7.01 / 10.01 or pH 4.01 / 6.86 / 9.18) |
| pH Temperature Compensation | automatic |
| EC Range | 0 to 3999 µS/cm |
| EC Resolution | 1 µS/cm |
| EC Accuracy | ?2% F.S. |
| EC Calibration | automatic, one-point at: 1413 µS/cm |
| TDS Range | 0 to 2000 ppm (mg/L) |
| TDS Resolution | 1 ppm (mg/L) |
| TDS Accuracy | ?2% F.S. |
| TDS Calibration | automatic, one-point at: 1382 ppm (mg/L) |
| EC/TDS Temperature Compensation | automatic with ? adjustable from 0.0 to 2.4% / ?C |
| EC to TDS Conversion Factor | 0.45 to 1.00 |
| Temperature Range | 0.0 to 60.0?C / 32.0 to 140.0?F |
| Temperature Resolution | 0.1?C / 0.1?F |
| Temperature Accuracy | ?0.5?C /?1?F |
| pH Electrode | HI73127 (replaceable; included) |
| Battery Type/Life | 1.5V (4) / approx. 100 hours of continuous use, auto-off after 8 minutes of non-use |
| Environment | 0 to 50?C (32 to 122?F); RH max 100% |
| Dimensions | 163 x 40 x 26 mm (6.4 x 1.6 x 1.0”) |
| Weight | 100 g (3.5 oz.) |
Download

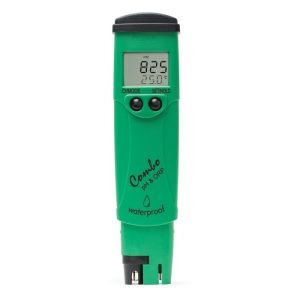

pH/ORP/Temperature Combo Tester - HI98121
Description
Additional information
Specifications
Download
Description
The HI98121 is a lightweight ergonomically designed tester. This tester is designed to float making it ideal for taking readings virtually anywhere. With the HI98121 it is possible to monitor both pH and ORP at the same time. The HI98121 is commonly used to monitor pH and chlorine for many applications including swimming, food sanitization, plating wastewater treatment, and cooling tower water treatment.
By definition pH is the measurement of the voltage generated by an electrochemical cell at zero current. The potential generated is proportional to the thermodynamic activity of the ion being measured.
Similar to a pH measurement that quantifies the how acidic or alkaline solutions are, ORP (Oxidation Reduction Potential) measurements quantify the overall state of a solution as having the ability to oxidize or reduce a chemical species. Oxidizing and reducing reagents are used to participate in chemical reactions known as a redox reaction.
An ORP sensor must be chemically inert; it cannot be oxidized or reduced itself. It must also have the proper surface characteristics to promote rapid electron exchange, a property known as high exchange current density. Two noble metals have proven to work well for this purpose: pure platinum and pure gold are both used in the construction of ORP sensors.
Features at-a-glance:
- Waterproof
- Automatic Temperature Compensation
- HOLD feature
- Simple to use
- Economical
Additional information
The HI98121 is a waterproof pH, ORP and temperature meter. The housing of this tester has been completely sealed against humidity and is designed to float. Electrode replacement with the stainless steel round connector means there are no pins to bend or break during replacement. When the cloth junction becomes clogged and response time is sluggish, simply pull out 3 mm (1/8”) to clear the clogging which will improve response time and stability. The exposed stainless steel temperature sensor on these models facilitates faster and more accurate temperature measurement.
- Waterproof
- Replaceable pH Electrode
- Automatic Two-Point pH Calibration
Specifications
| SKU | HI98121 |
| Name | pH/ORP/Temperature Combo Tester – HI98121 |
| pH Range | -2.00 to 16.00 pH |
| pH Resolution | 0.01 pH |
| pH Accuracy | ?0.05 pH |
| pH Calibration | automatic, at one or two points with two sets of standard buffers (pH 4.01 / 7.01 / 10.01 or pH 4.01 / 6.86 / 9.18) |
| pH Temperature Compensation | automatic for pH readings |
| ORP Range | ?1000 mV |
| ORP Resolution | 1 mV |
| ORP Accuracy | ?2 mV |
| Temperature Range | -5.0 to 60.0?C / 23.0 to 140.0?F |
| Temperature Resolution | 0.1?C / 0.1?F |
| Temperature Accuracy | ?0.5?C /?1?F |
| pH Electrode | HI73127 replaceable pH electrode (included) |
| ORP Electrode | fixed ORP sensor |
| Automatic Shut-Off | after 8 minutes non-use |
| Battery Type/Life | 1.5V (4) / approximately 250 hours of continuous use |
| Environment | -5 to 50?C (23 to 122?F); RH max 100% |
| Dimensions | 163 x 40 x 26 mm (6.4 x 1.6 x 1.0”) |
| Weight | 100 g (3.5 oz.) |
Download
