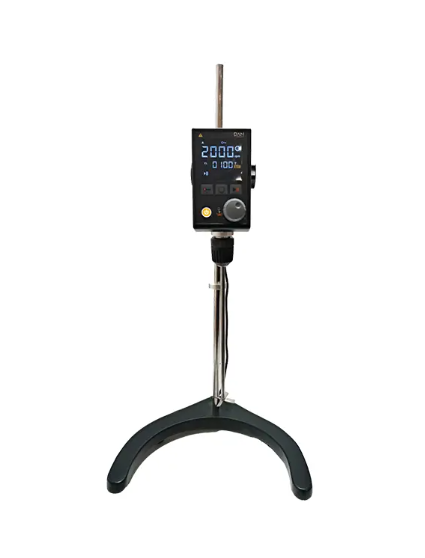

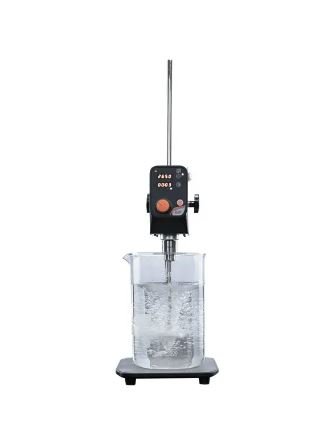

Digital Overhead Stirrer

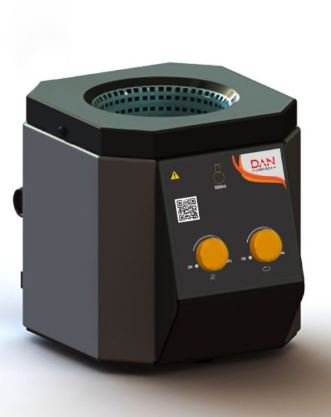

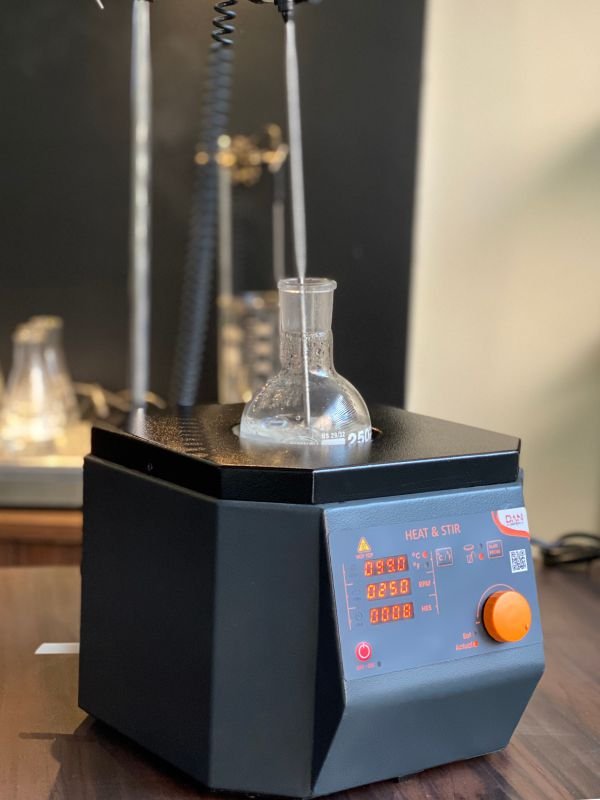

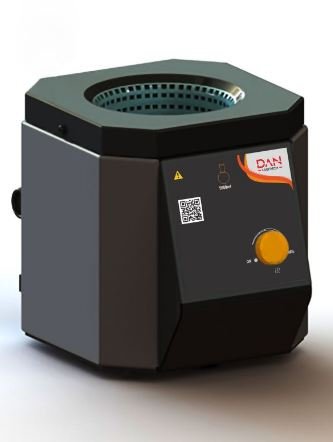

Heating Mantle

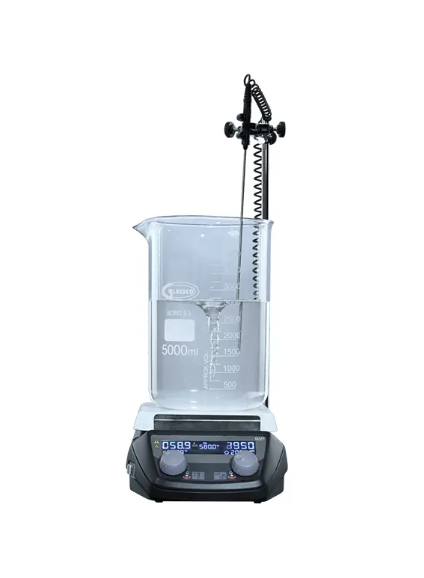

Hotplate with Magnetic Stirrer
Incubator Shaker
Kjeldahl Instruments
Lab Shaker
Mini Centrifuge
Multi Position Stirrer
Orbital Shaker
Roller Mixer
Soil Tester
Water Distillation

Lab Essentials

Cones
Lab Essential Gloves
Lab Essential Stirrer
Neutral Water Glass
Parafilm M Dispenser
Slides
Weighing Scoops

Laboratory Glassware

Automatic Burette
Brushes
Columns
Condensers
Crucibles
Dessicators
Dishes
Petri Dishes
Dispossable Glassware
Dispossable Culture Tubes
Pasteur Pipette
Distillation
Extraction Apparatus
Flakes
Conical Flasks
Dissolation Vessel
Funnels
Glass Dropper
Assembly Dropper Set
Glass Dropper Tips
Joints
Lab Filtration Assembly
Lab Vials
Laboratory Beakers
Laboratory Bottles
Reagents Bottles
Laboratory Glassware Adaptor
Measuring Cylindr
Pipettes
Stopcocks
Stoppers
Tubers
Tube Centrifuge
Utility Sets
Volumetric Flasks

Liquid Handling

Bottle Top Dispenser
Micropipettes
Pipette Stand
Reloading Tray
Universal Graduated Tips

Metalware

Laboratory Boss Head
Laboratory Burette Clamp
Laboratory Burner
Laboratory Forceps
Retort Clamp
Retort Ring
Retort Stand
Spatula

Plasticware

Beaker Plastic
Box
Hose Connection
Lab Plastic Flasks
Plastic Bottles
Plastic Centrifuge Tube
Plastic Cryo Vial
Plastic Cylinder
Plastic Funnels
Racks
Screw Thread

Quartzware

Rubberware

Rubber Adapter
Rubber Cock
Rubber mat
Rubber Sheets
Rubber Teats
Rubber Tube Safety Burner
Rubber Tubing Straight

Water Distillation

Single Stage Water Distillation
Water Distillation Cabinat Still
Water Distillation Double Stage
Water Softner

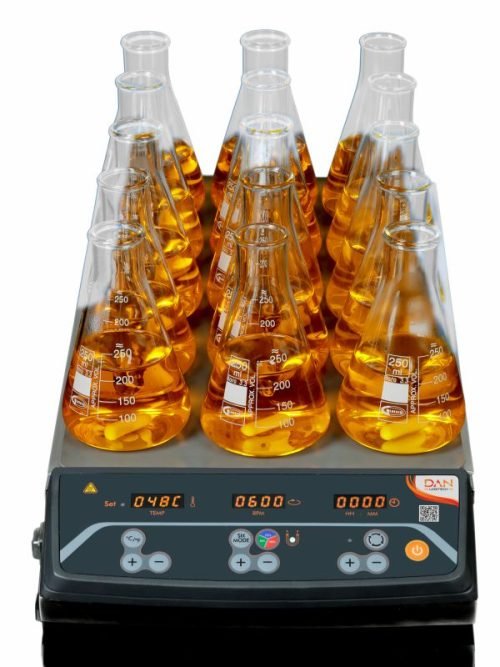

15-Position Digital Magnetic Stirrer (New)

Description

Specifications

Downloads

Description

Robust Metallic Construction
Suitable for continuous unsupervised operation
Designed for synchronous heating and stirring
The magnetic coil motorless technology provides noiseless and consistent stirring on all positions
Homogeneous temperature distribution across the heating plate
Hot top warning indication
Timer function
Adjustable reverse operation for stirring
Stirring speed remains constant, even when load changes
SPC-mode for a low self-warming of the surface
Multiple opening modes selection
Error codes display
Continuous stir modes possible
Can be operated with Labs-connect App over Wifi/USB Controls

Item Code

Enquiry

415.DNWDG.01

230

750

Enquire Now

415.DNDG.01

230

750

Enquire Now

414.DNDG.01

230

Enquire Now

Specifications

Technical Specification:

Set-up plate material	: Aluminium
Number of stirring positions	: 15
Stirring position distance	: 90mm
Speed Range	: 0 – 1000 rpm
Speed Control	: 10 RPM Steps
Stirring quantity max.H₂O	: 6L (400ml x 15)
Silicon Mat	: Yes
Stirring bar length max.	: 30mm x 8mm
Heating temperature range	: Room temp. – 120°C
Control display	: LED
Input Type	: Key Button
Adjustable safety circuit min.	: 50°C
Adjustable safety circuit max.	: 130°C
Timer range	: 00:01 to 99:59 [Hour: Minute]
Set-up plate dimensions	: 274x504mm
Dimensions (W x H x D)	: 281x81x609mm
Weight	: 10.6 KG (approx)
Permissible ambient temperature	: 5 – 40°C
Permissible relative humidity	: 80%
Protection class according to DIN EN 60529	: IP40
Also Known as	: 415.DG.01, 415.DG.02

Included Accessory:

Cat. No.	Accessories
1500.150.02	(15) Magnetic Stirring bar 30 mm x 8 mm

Downloads

3 Station Magnetic Stirrer With Hotplate

Description

Specifications

Downloads

Description

Magnetic Stirrer with Hotplate – Digital :

Three independently controlled stirring/heating positions.
Powerful magnets for strong magnetic coupling
Easy temperature & Stir controls.
Installed with Safety PT sensor for fail safe operation.
LED hot top indicator for temperatures above 50°C for each station.
Electronic variable speed control with Knob for display
Knob for regulating variable temperature
Heat reach Indicator, To ensure you correct temperature of plate surface.
Stirring Indicator
LED error code displays & safety for heat & Stir function inbuilt trouble shoot

Model No.

Top Plate

Enquiry

716.DNAG.01

230

(450×3) 1350

SS Ceramic coated

Enquire Now

Specifications

Technical Specification:

Heang Mantle Material	: Stainless Steel Ceramic Coated
Dimension of heang plate	: Ø 150mm
Volume cap.	: 20 L each station
Speed Range	: 1600 RPM
Stirring position	: 3
Maximum stirring range	: Can use upto 80mm bar Lower speed
Maximum plate temperature	: 350°C
Overall dimensions (w x d x h), mm	: 505 x 246 x 195 (LxWxH)
Plate dimensions, mm	: 504 x 175 x 30 (LxWxH)
Net weight, kg	: 7.0 kg (Approx.)
Permissible ambient temperature	: 5 – 40°C
Permissible relative moisture	: 80%
IP Class	: 21

Heat	RPM	HEAT/STIR	CELSIUS TO	Temperature
1350W	0-1600 RPM	SELECTION	FAHRENHEIT	Upto 350 °C

Downloads

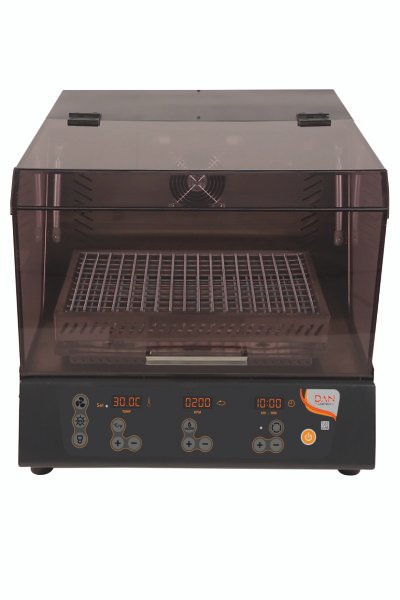

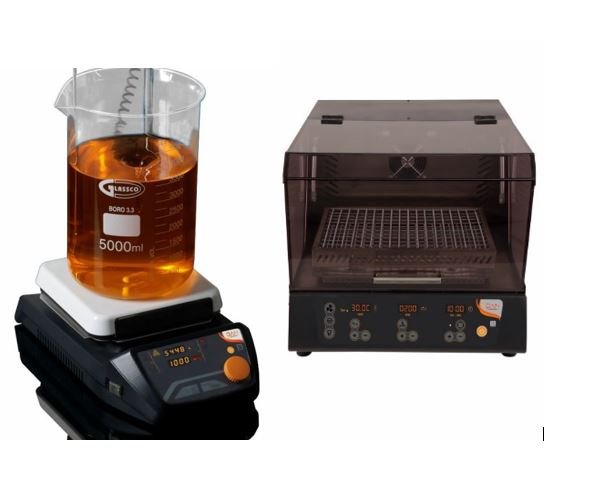

3-In-1 Orbital Incubator Shaker With Wifi Based

Description

Specifications

Downloads

Description

Application in molecular biology, immunology, chemistry lab
Can be operated with Labs-connect App over Wifi/USB Controls
PU coated outer body made of mild steel
SS 304 Internal
Available with Universal platform
Compatible for use with various capacity conical flasks and different sample containers
Compact design
BLDC motor driven
Microprocessor controlled
User-Friendly
Low power consumption
Maximum stirring speed upto 300RPM
Digital set up of RPM and time with independent LED display
Audible alarm at time cycle end for safety and ease of unsupervised operation
Silent and stable operation
Powerful effecient 800W Heater
Built in UV based Sterlization
Built in focus light

Item Code

Enquiry

3900.DNWEU.01

230V

Enquire Now

Specifications

Downloads

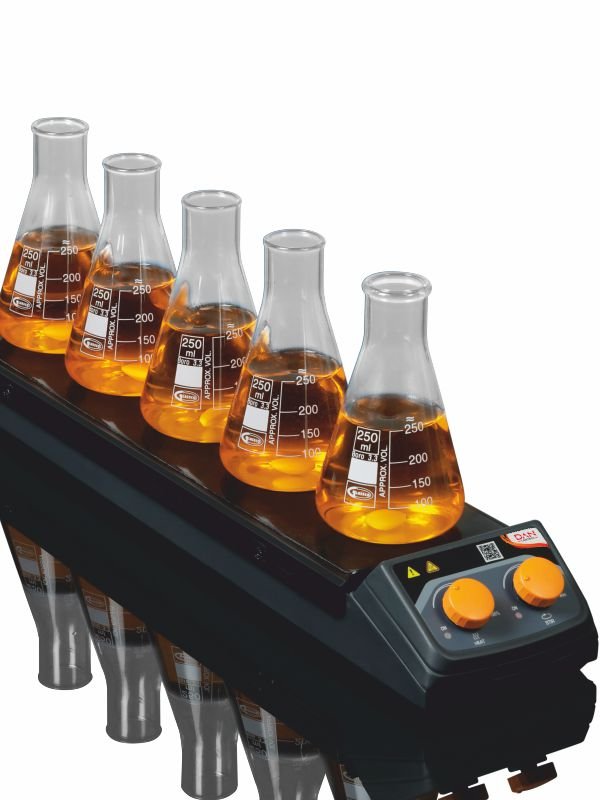

5-POSITION DIGITAL MAGNETIC STIRRER WITH HEATING (Analog)

Description

Specifications

Downloads

Description

Robust Metallic Construction
Simultaneously operating stirrers
Consistent heating and stirring
Silicone mat for anti-skid
Homogeneous temperature distribution across the heating plate
Narrow foot print for space saving
High magnetic strength
Knob for electronic variable speed adjustment
Knob for electronic variable temperature adjustment
BLDC motor for smooth drive

Model No.

Enquiry

410.DNAG.01

230

220

Enquire Now

Specifications

Technical Specification:

Set-up plate material	: Aluminium
Number of stirring positions	: 5
Stirring position distance	: 90mm
Speed Range	: 0 – 1200 rpm
Stirring quantity max. per stirring position (H₂O)	: 2L
Silicone Mat	: Yes
Stirring bar length max.	: 25mm x 9mm
Heating temperature range	: Room temp. – 120°C
Input Type	: Knob
Set-up plate dimensions	: 470x128mm
Dimensions (W x H x D)	: 554x126x75mm
Weight	: 3 KG
Permissible ambient temperature	: 5 – 40°C
Permissible relative humidity	: 80%
Protection class according to DIN EN 60529	: IP40
Also Known as	: 410.AG.01

Temp Control	RPM	Heat & Stir	Choice
upto 120° C	0-1200 RPM	Setup	6 Mode

Downloads

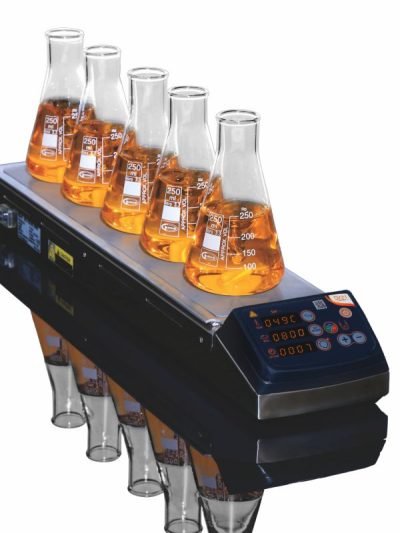

5-POSITION DIGITAL MAGNETIC STIRRER WITH HEATING (Digital)

Description

Specifications

Downloads

Description

Labs-Connect™ Technology

Robust Metallic Construction
Designed for synchronous heating and stirring
Suitable for continuous unsupervised operation
Silicone mat for anti-skid.
The magnetic coil motorless technology provides noiseless and consistent stirring on all positions
Homogeneous temperature distribution across the heating plate
Hot top warning indication
Timer function
Multiple modes with mode selection key
Constant stirring speeds even with viscosity changes
SPC-mode for a low self-warming of the surface
Error codes display

Item Code

Enquiry

411.DNWDG.01

230

220

Enquire Now

411.DNDG.01

230

220

Enquire Now

Specifications

Technical Specification:

Set-up plate material	: Aluminium
Number of stirring positions	: 5
Stirring position distance	: 90mm
Speed Range	: 0 – 1000 rpm
Stirring quantity max. per stirring position (H₂O)	: 2L
Silicone Mat	: Yes
Stirring bar length max.	: 30mm x 8mm
Heating temperature range	: Room temp. – 120°C
Input Type	: Key Button
Set-up plate dimensions	: 514x122mm
Dimensions (W x H x D)	: 600x120x80mm
Weight	: 4.5 (Approx.)
Permissible ambient temperature	: 5 – 40°C
Permissible relative humidity	: 80%
Protection class according to DIN EN 60529	: IP40
Speed control	: 10 RPM Steps
Control display	: LED
Adjustable safety circuit min.	: 50°C
Adjustable safety circuit max.	: 130°C
Timer range	: 00:01 to 99:59 [HH: MM]
Also Known as	: 411.DG.01

Temp Control	RPM	Heat & Stir	Choice
upto 120° C	0-1200 RPM	Setup	6 Mode

Downloads

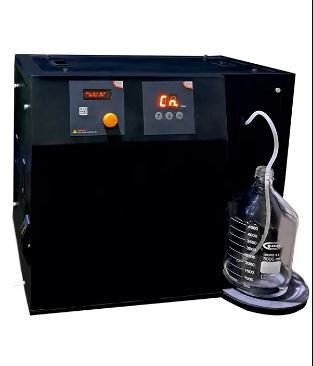

ALL GLASS WATER DISTILLATION (AUTOMATIC)

Description

Specifications

Downloads

Description

(SS & ALUMINIUM ALLOY CERAMIC COATED TOP)

PU Coated Aluminium Alloy Moulded Construction
Easy temperature & Stir controls
Installed with Safety PT sensor for fail safe operation.
Hot top indicator for temperatures above 50°C.
Large top plate to assist beakers upto 2000 ml.
High magnetic strength.
Electronic variable speed control with Knob for display.
Knob for regulating variable temperature.
Heat reach Indicator, To ensure you correct temperature of plate surface.
Stirring & temperature indicator
Error indicators for heat & Stir function inbuilt trouble shoot

Item Code

Enquiry

710.DNAG.01

230

650

Enquire Now

610.DNAG.01

230

650

Enquire Now

Specifications

Downloads

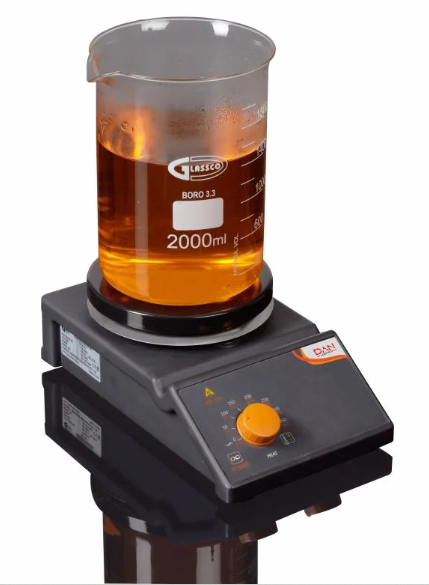

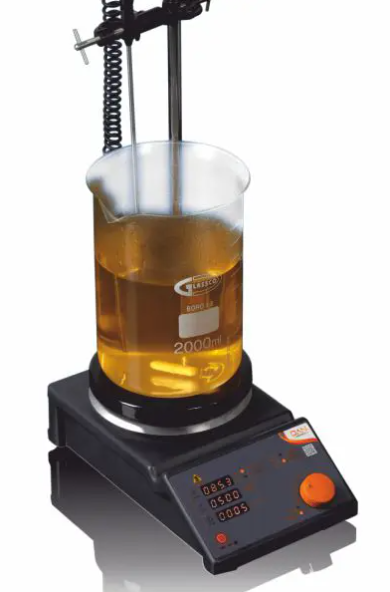

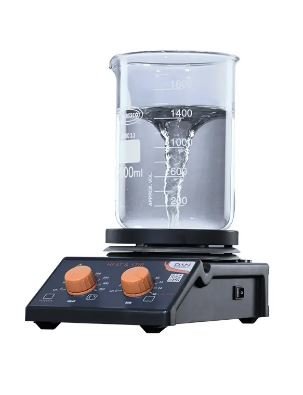

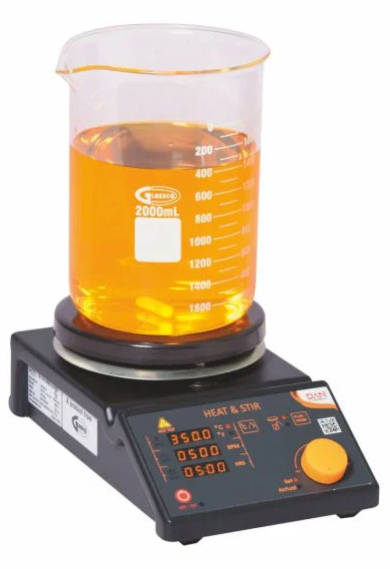

Analogue Magnetic Stirrer With Hotplate

Description

Specifications

Downloads

Description

All Glass Water Distillation

This has been designed for better and accurate control of the distillation unit. It has been incorporated with advanced microcontroller based electronic circuitry, which gives and easy user machine interaction.
The alpha numeric LCD which has been used shows all messages that correspond to the running of the machine.

Environment friendly & suitability
One Touch Use, Fully Automatic ,
Intelligent, dual stage all glass type
Fully automatic control save energy & money– By setting the required output volume in litters. Aer completion of the process heater is turned off and the cooling water inlet is closed automatically.
Boiler empty detection intelligence built in– when the water level inside the boiler drops below the heater, boiler empty condition is detected.
Gate Valve to one side – Conserves cooling water wastage in case of power failure
Flow switch – In built safety feature for the equipment unit shut off in case of cooling water failure. When the inlet water flow to the unit is low, this error is displayed with buzzer indication. The process in paused until the inlet flow is resumed.
Easy to read Alpha numeric LCD and keypad for all settings and messages that correspond to the running of the machine.
Auto cleaning detection
Probe error detection
So Calibration of output volume to compensate seasonal temperature and flow rate changes
Manual overriding flow sensor and Gate (solenoid) valve
Serviceability Replaceable Silica sheathed (Quartz) Heater
Safety of user & instrument against wattage/power variation

Model No.

Capacity/Hr

Enquiry

DN.WD.01

2 Ltr/hr

Enquire Now

DN.WD.02

4 Ltr/hr

Enquire Now

Specifications

Downloads

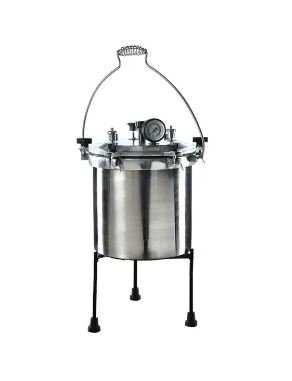

Autoclave Portable 20 Litre

Description

Specifications

Downloads

Description

Specifications

Downloads

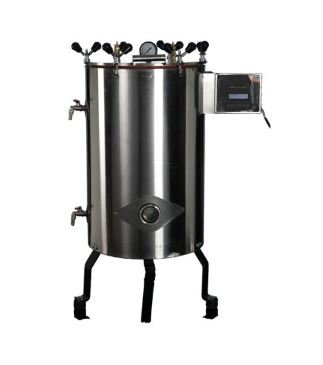

Autoclave Vertical 50 Litre

Description

Specifications

Downloads

Description

Specifications

Downloads

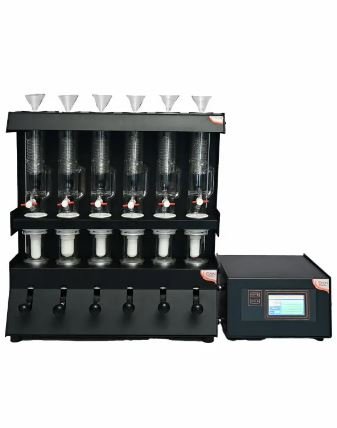

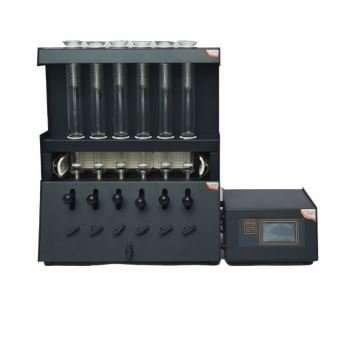

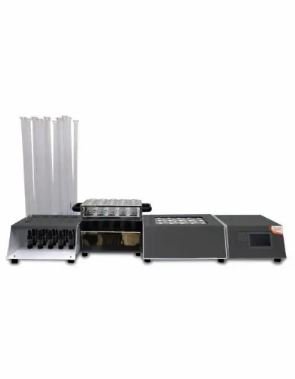

Automatic Fibre Estimation System

Description

Specifications

Downloads

Description

(6 PLACE) AUTO-SEQUENCING

Designed to protect electronics from acid / alkali wet area & heat zone
Independent loading of sample with individual mechanical controls
Auto acoustic alarm on completion of process
Auto power off mode on completion of process
Inbuilt safety features like auto error indication, auto over temperature protection and auto sensor break protection
PC chart Software Performs Live Graphical Representation of Time/ Temperature Gradient on PC Connectivity

Model No.

Enquiry

DN.AFES.6P

Enquire Now

Specifications

Downloads

Automatic Fibre Estimation System

Description

Specifications

Downloads

Description

Safety Features

Standalone housing for Temperature controller to protect electronics from solvent area & heat zone.
PC chart software performs Live graphical representation of time/temperature gradient on PC Connectivity
Auto Alarm for recovery phase
Auto power off mode on completion of extraction.
Independent loading of sample with individual mechanical controls.
Inbuilt safety features like auto error indication, auto over temperature protection and auto sensor break protection.
Cold water line for condensation of solvent with silicon hose interconnection for condensor

Model

Enquiry

DAN 6T 02

Enquire Now

Specifications

Downloads

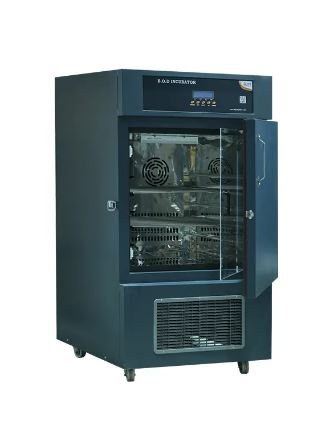

B.O.D Incubator

Description

Specifications

Downloads

Description

Temperature Uniformity- ± 1°C
Temperature sensor- PT-100
Temperature Controller
PID temperature controller
LED display of SV & PV
Construction- Double walled with PUF Insulation
Inner Construction- Stainless Steel 304 grade
Exterior Construction- Powder Coated GI sheet
Exterior Door- Solid door with lock & key
Inner door- Glass door to view samples
Trays- Stainless steel preforated trays
Interior illumination- LED Light
Heating Element- U-shaped SS tubular heaters
Refrigeration System- CFC Free Compressor
Air Circulation- Motorized Blower / Axial fan
Safety- Temperature High / Low alarm
Door open buzzer
Caster wheels with brake
With Test Certificate

Model No.

Enquiry

4200.DNEU.04

220 Volts

50 Hz

Enquire Now

Specifications

Downloads

COD Digestion System

Description

Specifications

Downloads

Description

Feature:

Stainless steel insert rack to handle.
COD Digestion tubes.
MS rack to keep Air condensers.
MS rack with hole to place insert rack with tubes for adding reagents in water.
Stainless steel water tank.

Model

Enquiry

DEN.N15CT.01

Enquire Now

Specifications

Downloads

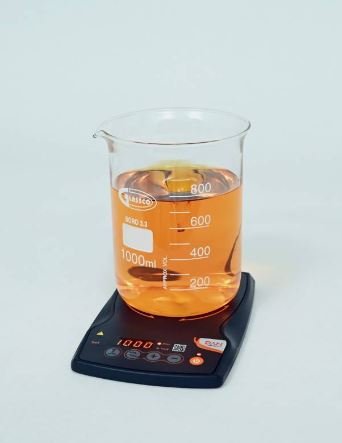

Digital Flat Stirrer

Description

Specifications

Downloads

Description

Specifications

Downloads

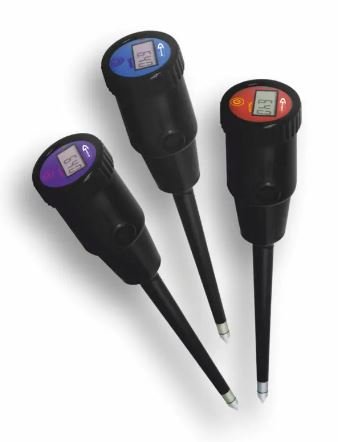

DIGITAL INSTANT N-P-K TESTER

Description

Specifications

Downloads

Description

For Soil Testing

The electro-chemical method uses the innovative technology of ionization reduction

Operating Instruction

Take off the protective cap from the metal probe
Press OFF/ON button Tester display “0″.
Quick testing: Water the soil with distilled water before testing. Make sure the water can go 10 cm deep at the least. The best humidity is 60%-80%. Insert the metal probe into the soil vertically and clockwise, to about 6-8 cm deep. Make sure the soil have thorough contact with the metal probe. After about 6 seconds, the tester will display the measured value. The tightness of soil will affect the measuring result. Multiple tests at the same and different points should be performed and take the average as the Final result.
Accurate testing: use a container, mix dried water at the rate of 3:1. Stir and make it into a mud form. Put the metal probe into the mud about 6-8 cm deep. In about 6 seconds, the tester will display the measured value.
Wipe the metal probe with a towel or tissue paper after each test. Make it clean and dry. till the display shows “0″.

Model No.

Pack of

Enquiry

GLINPK

Enquire Now

Specifications

Downloads

DIGITAL MINI SHAKER PRO/VORTEXER

Description

Specifications

Features

Description

Specifications

Features

Features

Compact, universal small shaker suitable for shaking tasks with all small vessels with adapters and microtiter plates

Sturdy Aluminum die cast casing
PU Coated aluminum Alloy Construction
2 in 1 vortex with shot mode & shaking mode gives result quickly
Support thirteen different adaptors
Wide range of attachments available
Timer & countdown functions make it versale
Stable in all speed ranges
Continuous or touch/shot operation (with standard attachment)
Audible timer by pass mode for uninterrupted non stop use

Model No.

Enquiry

3800.DNEU.01

100 240V

Enquire Now

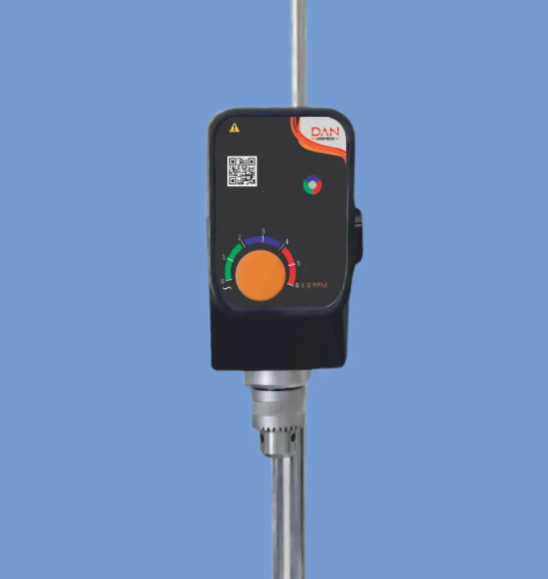

Digital Overhead Stirrer

Description

Specifications

Features

Description

Product Features:

Independent LED display for RPM & Timer 99:59 (HH:MM)
User Friendly
Brushless DC motor
Liquid cannot reach internal components due to the front safeguard
Audible alarm for error conditions
Effective stirring provides clockwise & anti-clockwise stirring modes
Prominently used in chemical synthesis, pharmaceuticals, physical & chemical analysis, petrochemical, cosmetics, health products, foods, biotechnology & so on

Model No.

Enquiry

6050.DNEU.01

100 240

50/60

Enquire Now

6100.DNEU.01

100 240

50/60

Enquire Now

Specifications

Features

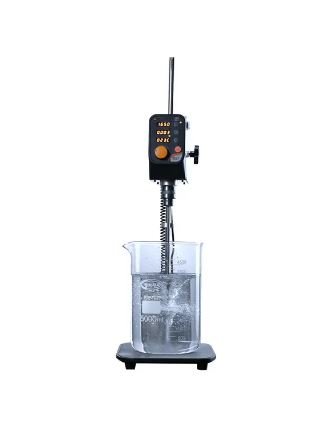

Digital Overhead Stirrer (With Wi-Fi)

Description

Specifications

Features

Description

DIGITAL OVERHEAD STIRRER WITH WIFI LABS-CONNECT & TEMP.

Independent LED display for RPM & Timer 99:59 (HH:MM)
User Friendly
Brushless DC motor
Liquid cannot reach internal components due to front safeguard
Audible alarm for error conditions
Effective stirring provides clock wise & anti clock wise stirring modes
Prominent used in chemical synthesis, pharmaceuticals, physical & chemical analysis, petrochemical, cosmetics, health products, foods, biotechnology & so on
Can be operated with Labs-connect App over WiFi/USB Controls
Auto power ‘ON’ possible

Model No.

Enquiry

6050T.DNEU.01

230 V

Enquire Now

6100T.DNEU.01

230 V

Enquire Now

Specifications

Features

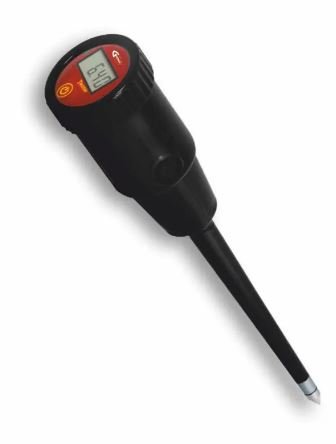

DIGITAL pH TESTER

Description

Specifications

Features

Description

The tester features with innovative nanotechnology metal material sensor, for fast and easy test of pH value of soil, fruit, meat, cheese and other semi-solid media.

Operating Instruction

Take off the protective cap from metal probe
Press OFF/ON button. Tester displays “7.00”.
Insert the metal probe vertically into the sample that requires testing, at least 6-8cm deep. Make sure there is close contact(Soil need to humid~60%-80%). The tester will start testing automatically. After about 1 minute the test is over. Indication light will be on for about 10 seconds. The displayed number is locked, which is the value of pH.
After each test, take out the tester, wipe the metal probe clean with towel or tissue paper. Display will be unlocked, and show “7.00″. It is ready for a newtest.
After use, wipe the metal probe clean until it displays “7.00”. Switch off the tester.

Model No.

Pack of

Enquiry

GLIPH

Enquire Now

Specifications

Features

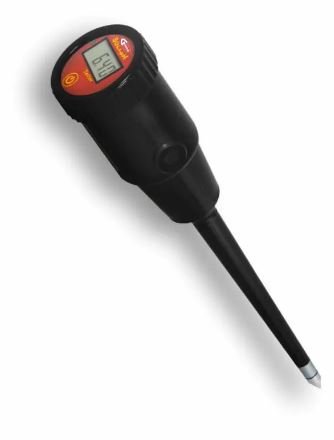

DIGITAL SOIL EC TESTER

Description

Specifications

Features

Description

Digital Soil EC Tester

The tester features a unique metal surface electrode that provides fast and easy on the spot EC(mS/cm) measurements for soil and hydroponics nutrient etc.

Operating Instruction

Take off the protective cap from the metal probe
Press OFF/ON button Tester display “0″.
Quick testing: Water the soil with distilled water before testing. Make sure the water can go 10 cm deep at the least. The best humidity is 60%-80%. Insert the metal probe into the soil vertically and clockwise, to about 6-8 cm deep. Make sure the soil have thorough contact with the metal probe. After about 6 seconds, the tester will display the measured value. The tightness of soil will affect the measuring result. Multiple tests at the same and different points should be performed and take the average as the final result.
Accurate testing: Use a container, mix dried soil with distilled water at the rate of 10:1. Stir and make it into a mud form. Put the metal probe into the mud about 6-8CM deep. In about 6 seconds, the tester will display the measured value.
Wipe the metal probe with a towel or tissue paper after each test. Make it clean and dry. till the display shows “0″.

Model No.

Pack of

Enquiry

GLIEC

Enquire Now

Specifications

Features

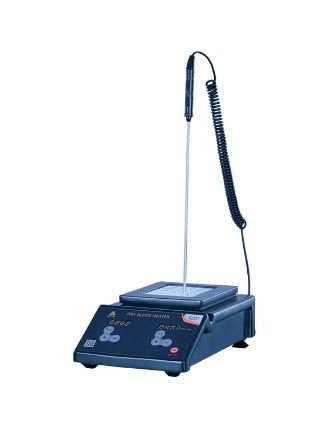

DRY BLOCK HEATER

Description

Specifications

Features

Description

DRY BLOCK HEATER

PU coated aluminium alloy body construction ensures durability
Interchangeable aluminum alloy sample blocks provide versatility and allow for easy cleaning and disinfecting
Precise temperature control with PID circuit
Digital controls and display of time and temperature
Built-in temperature sensing probe for outstanding temperature accuracy and control
Timer allows the user to accurately monitor the heating time

Item Code

No of Block

Enquiry

740.DNEU.01

230

170

Enquire Now

750.DNEU.01

230

340

Enquire Now

Specifications

Technical Specification :

	Single block heater	Double block heater
Number of blocks	1	2
Heat output	170	340
Heating temperature range [°C]	120°C	120°C
Temperature display	YES	YES
Adjustment & display resolution [K]	1	1
Connection for ext. temp sensor	DIN	DIN
Temperature sensor	Pt1000	Pt1000
Set-up plate material	Aluminium alloy	Aluminium alloy
Set-up plate dimensions [mm]	957651	957651 (2 block)
Fixed safety circuit [°C]	130	130
Timer	YES	YES
Time setting range [min]	1 – 5999	1 – 5999
Counter	YES	YES
Counter setting range [min]	1 – 5999	1 – 5999
Dimensions (W x H x D) [mm]	16080271	163106332
Weight [kg]	2.8 kg (Approx.)	5.2 kg
Permissible ambient temp[°C]	5°C – 40°C	5°C – 40°C
Permissible relative humidity [%]	80	80
Protection class according to DIN EN 60529	IP 21	IP 21
Voltage [V]	220 – 240V	220 – 240V
Frequency [Hz]	50/60Hz	50/60Hz
Power input [W]	170W	340W

Features

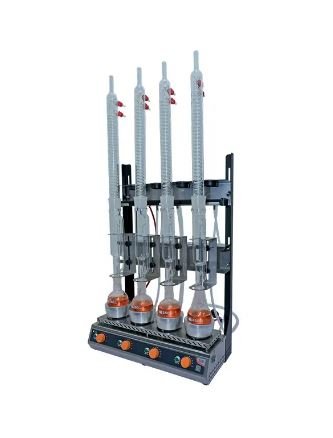

FAT DETERMINATION APPARATUS

Description

Specifications

Features

Description

Features:

Cost – effective and user friendly apparatus for hot extraction.
Energy individually adjustable for every sample position.
Cooling water distribution, strips ensures uniform cooling at sample positions.
Practical condenser ledge to safely deposit the condenser between hot extractions.
Brackets for safely holding the intermediate extraction pieces after removing the sample container
Material of construcon of adaptors is SS 304 Grade

Model No.

Type

Enquiry

1900.DNEU.01

230 V

Analog

Enquire Now

1900.DNUS.02

115 V

Analog

Enquire Now

1950.DNEU.01

230 V

Digital

Enquire Now

Specifications

Features

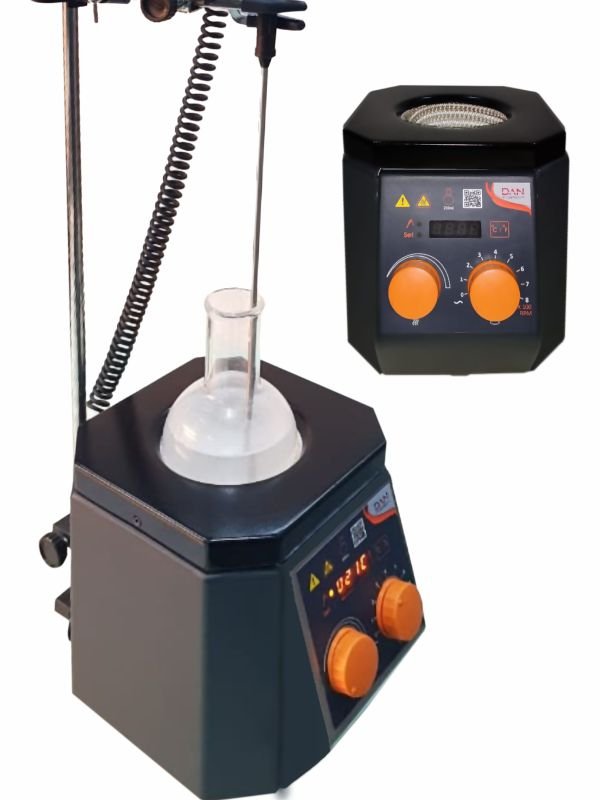

Heating Mantle – Digital

Description

Specifications

Features

Description

BlackDiamond™

PU Coated Aluminium & Stainless Steel construction
Designed for advanced Laboratory usage
Control the temperature of subject in flask using probe
Temperature control with digital display
Celsius/Fahrenheit selection
Mantle/Probe selection
SS & Aluminium Construction
For Round Bottomed Flasks as per DIN – 12347
Glass fibre yarn knitted mantle provides uniform heating to flasks
Innovative spill collect system enables collection of spillage in cares of breakage of flasks
Fewer parts give longer life
Easy to use and maintains
Provision to attach accessories
Auto Power ‘ON’ possible
Glass fibre Insulation saves power wastage
Probe based low temperature of liquid

Model No.

Mantle Capacity (mm)

Dimension

Enquiry

1222.DNEU.01

100ml

200

167x240x182

Enquire Now

1222.DNEU.02

250ml

200

167x240x182

Enquire Now

1222.DNEU.03

500ml

250

217x287x203

Enquire Now

1222.DNEU.04

1000ml

350

217x287x203

Enquire Now

1222.DNEU.05

2000ml

500

309x390x262

Enquire Now

1222.DNEU.06

3000ml

500

309x390x262

Enquire Now

1222.DNEU.08

5000ml

650

309x390x262

Enquire Now

Specifications

Features

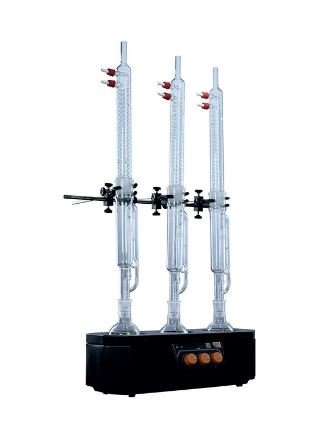

Heating Mantle Combined Unit

Description

Specifications

Features

Description

HEATING MANTLE COMBINED UNIT WITH STIRRER 3 POSITION & 6 POSITION

PU Coated Mild Steel construction
Heating Mantle Combined unit made of M. steel
ON-OFF knob for heat power control
Mantle knitted with glass fibre yarn
Provides uniform heating to flasks
For Round Bottomed Flasks as per DIN – 12347
Easy maintenance
Long Life
Also Available with metalic stand 1100.EU

Included Accessory:

Cat. No.	Accessories
2000.200.01	Vertical Rod stainless steel length 542mm, ∅ 9.8mm
2000.200.02	Horizontal Rod stainless steel length 972mm, ∅ 9.8mm
2000.200.03	8/5 Boss Head
2000.200.04	6/3 clamp

Single Soxhlet Extraction Unit

Extraction unit metal stand with heating mantle

Specifications

Technical Specification:

Heating Mantle Body	: Made of Mild Steel
Heating mantle material	: Glass fibre yarn
Mantle Capacity	: To hold Standard round bottom flasks upto 500ml
Valuable stirring speed	: 750 RPM
Temperature Range	: Approx. 400°C
Heating Control	: Electronic power regulator
Stir Control	: Electric regulator
Dimension	: 495x246x200
Permissible relative moisture	: 80%
Permissible Ambient Temperature	: 5-40°C
IP Class	: 10
Also Known as	: 2600.EU.01, 2600.EU.02, 2600.EU.03 , 2600.EU.04, 2600.EU.05, 2600.EU.06

Temp	Mantle Capacity	Places	Heating Mantle Material
400° C	100-500ml	3 & 6	Glass fibre yarn

Features

Model No.

Capacity (mm)

Dimension

Enquiry

1223.DNEU.01

100ml

220

167x240x182

Enquire Now

1223.DNEU.02

250ml

220

167x240x182

Enquire Now

1223.DNEU.03

500ml

270

217x287x203

Enquire Now

1223.DNEU.04

1000ml

370

217x287x203

Enquire Now

1223.DNEU.05

2000ml

520

309x390x262

Enquire Now

1223.DNEU.06

3000ml

520

309x390x262

Enquire Now

1223.DNEU.08

5000ml

670

309x390x262

Enquire Now

Heating Mantle Combined Unit with Stirrer

Description

Specifications

Features

Description

Specifications

Technical Specification:

Heating Mantle Body	: Made of Mild Steel
Heating mantle material	: Glass fibre yarn
Mantle Capacity	: To hold Standard round bottom flasks upto 500ml
Valuable stirring speed	: 750 RPM
Temperature Range	: Approx. 400°C
Heating Control	: Electronic power regulator
Stir Control	: Electric regulator
Dimension	: 495x246x200
Permissible relative moisture	: 80%
Permissible Ambient Temperature	: 5-40°C
IP Class	: 10
Also Known as	: 2300.EU.01, 2300.EU.02, 2300.EU.03

Included Accessory:

Cat. No.	Accessories
2000.200.01	Vertical Rod stainless steel length 542mm, ∅ 9.8mm
2000.200.02	Horizontal Rod stainless steel length 972mm, ∅ 9.8mm
2000.200.03	5 Boss Head
2000.200.04	3 clamp

Single Soxhlet Extraction with stirrer:

Extraction unit metal stand with heating mantle stirrer

Model No.

(230V, 50Hz)

Model No.

(115V, 60Hz)

Capacity (ml)

Watts

No. of position of regulator

1600.DNEU.01*

1600.DNUS.01

100

170

1/1

1600.DNEU.02*

1600.DNUS.02

250

170

1/1

1600.DNEU.03*

1600.DNUS.03

500

220

1/1

Features

Model No.(230V 50Hz)

Model No.(115V 50Hz)

Mantle Capacity (ml)

Watts

No. of Position of regulator

Enquiry

2300.DNEU.01

2300.DNUS.01

100ml

660

3/3

Enquire Now

2300.DNEU.02

2300.DNUS.02

250ml

660

3/3

Enquire Now

2300.DNEU.03

2300.DNUS.03

500ml

810

3/3

Enquire Now

2500.DNEU.01

2500.DNUS.01

Discontinued

Enquire Now

2500.DNEU.02

2500.DNUS.02

Discontinued

Enquire Now

2500.DNEU.03

2500.DNUS.03

Discontinued

Enquire Now

Heating Mantle Combined Unit with Stirrer

Description

Specifications

Features

Description

Specifications

Technical Specification:

Heating Mantle Body	: Made of Mild Steel
Heating mantle material	: Glass fibre yarn
Mantle Capacity	: To hold Standard round bottom flasks upto 500ml
Valuable stirring speed	: 750 RPM
Temperature Range	: Approx. 400°C
Heating Control	: Electronic power regulator
Stir Control	: Electric regulator
Dimension	: 495x246x200
Permissible relative moisture	: 80%
Permissible Ambient Temperature	: 5-40°C
IP Class	: 10
Also Known as	: 2300.EU.01, 2300.EU.02, 2300.EU.03

Included Accessory:

Cat. No.	Accessories
2000.200.01	Vertical Rod stainless steel length 542mm, ∅ 9.8mm
2000.200.02	Horizontal Rod stainless steel length 972mm, ∅ 9.8mm
2000.200.03	5 Boss Head
2000.200.04	3 clamp

Single Soxhlet Extraction with stirrer:

Extraction unit metal stand with heating mantle stirrer

Model No.

(230V, 50Hz)

Model No.

(115V, 60Hz)

Capacity (ml)

Watts

No. of position of regulator

1600.DNEU.01*

1600.DNUS.01

100

170

1/1

1600.DNEU.02*

1600.DNUS.02

250

170

1/1

1600.DNEU.03*

1600.DNUS.03

500

220

1/1

Features

Model No.(230V 50Hz)

Model No.(115V 50Hz)

Mantle Capacity (ml)

Watts

No. of Position of regulator

Enquiry

2300.DNEU.01

2300.DNUS.01

100ml

660

3/3

Enquire Now

2300.DNEU.02

2300.DNUS.02

250ml

660

3/3

Enquire Now

2300.DNEU.03

2300.DNUS.03

500ml

810

3/3

Enquire Now

2500.DNEU.01

2500.DNUS.01

Discontinued

Enquire Now

2500.DNEU.02

2500.DNUS.02

Discontinued

Enquire Now

2500.DNEU.03

2500.DNUS.03

Discontinued

Enquire Now

Heating Mantle with Stirrer

Description

Specifications

Features

Description

Specifications

Features

Model No.

Capacity (mm)

Dimension

Enquiry

1223.DNEU.01

100ml

220

167x240x182

Enquire Now

1223.DNEU.02

250ml

220

167x240x182

Enquire Now

1223.DNEU.03

500ml

270

217x287x203

Enquire Now

1223.DNEU.04

1000ml

370

217x287x203

Enquire Now

1223.DNEU.05

2000ml

520

309x390x262

Enquire Now

1223.DNEU.06

3000ml

520

309x390x262

Enquire Now

1223.DNEU.08

5000ml

670

309x390x262

Enquire Now

Heating Mantle with Stirrer – BlackDiamond™ PRO

Description

Specifications

Features

Description

Specifications

Features

Model No.

Capacity (mm)

Dimension

Enquiry

1225.DNEU.01

100ml

220

240x315x203

Enquire Now

1225.DNEU.02

250ml

220

240x315x203

Enquire Now

1225.DNEU.03

500ml

270

240x315x203

Enquire Now

1225.DNEU.04

1000ml

370

240x315x203

Enquire Now

1225.DNEU.05

2000ml

520

309x390x262

Enquire Now

1225.DNEU.06

3000ml

520

309x390x262

Enquire Now

1225.DNEU.08

5000ml

670

309x390x262

Enquire Now

Heating Mantle with Stirrer – Digital

Description

Specifications

Features

Description

Specifications

Features

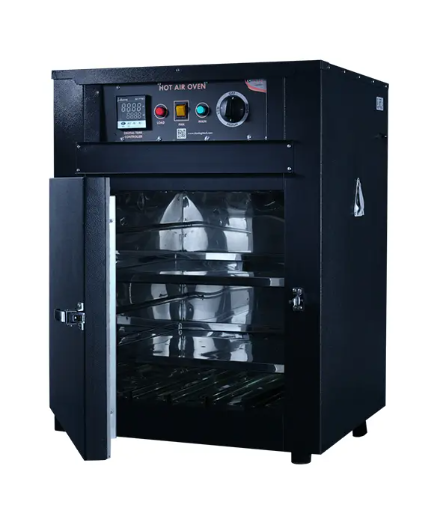

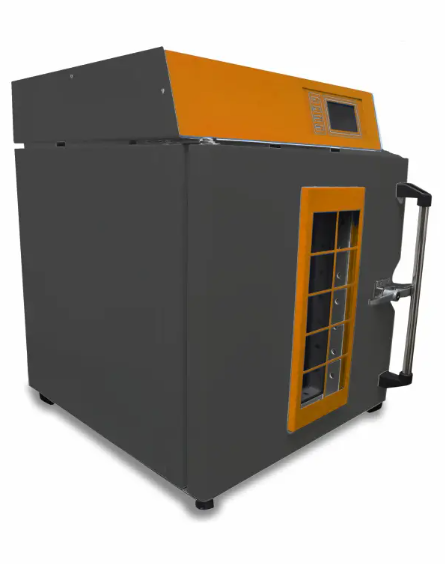

Hot Air Oven

Description

Specifications

Features

Description

Specifications

Features

Hot Air Oven Cum Incubator

Description

Specifications

Features

Description

Specifications

Features

Hot Air Oven Cum Incubator

Description

Specifications

Features

Description

Specifications

Features

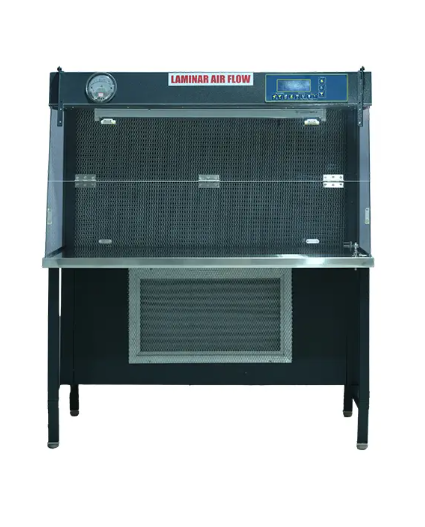

Laminar Air Flow Horizontal

Description

Specifications

Features

Description

Specifications

Features

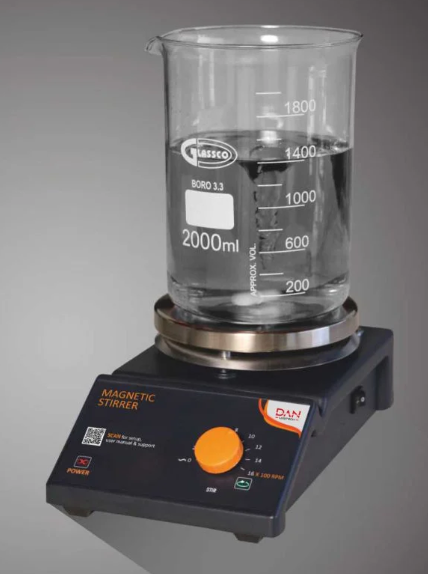

Magnetic Stirrer Analog, Stainless Steel Top

Description

Specifications

Features

Description

Specifications

Features

Magnetic Stirrer Analog, STAINLESS STEEL TOP Octagon Base

Description

Specifications

Features

Description

Specifications

Features

Magnetic Stirrer with Analog Hotplate, Stainless Steel Top

Description

Specifications

Features

Description

Specifications

Features

Magnetic Stirrer with Digital Hotplate

Description

Specifications

Features

Description

Specifications

Features

Included Accessory:

Cat. No.	Accessories
850.800.01	Rod Stainless Steel length 400 mm, Ø 12 mm
850.800.02	Magnetic Stirring bar 35 mm x 9 mm
850.800.03	Moulded PT 100 sensor probe
850.800.04	Boss Head

Optional Accessory:

Cat. No.	Accessory (Aluminum Adapter for Round Bot tom Flasks) Flask Capacity (ml)	Places
610.ADP.00	10ml	8
610.ADP.01	25ml	7
610.ADP.02	50ml	4
610.ADP.03	100ml	1

Temp	RPM	Plate Size	Vessel Capacity	Plate Material
350° C	50-1500 RPM	145mmØ	upto 2L Beakers	Aluminium Alloy Ceramic Coated

Category: Hotplate with Magnetic Stirrer

Magnetic Stirrer with Digital Hotplate

Description

Specifications

Features

Description

Specifications

Features

Included Accessory:

Cat. No.	Accessories
850.800.02	Magnetic Stirring bar 35 mm x 9 mm

Temp Control	RPM	Plate Size	Vessel Capacity	Plate Material
Variable upto 350° C	1600 RPM	150mmØ	upto 2L Beakers	SS 304 Grade

Category: Hotplate with Magnetic Stirrer

Model No.

Top Plate

Enquiry

900.DNDG.01

230

SS Ceramic Coated

Enquire Now

MAGNETIC STIRRER WITH HOTPLATE

Description

Specifications

Features

Description

(WITH LCD DIGITAL DISPLAY)

Independent control for heating & stirring
Powerful 1300 W heater, biggest in class, gives results quickly.
Supplied with Accessories, Probe based thermal control best for direct media temperature control.
7X7 inch Glass Cera top supports large vessels upto 5 Ltr.
Pt1000 for higher accuracy.

RELIABILITY	DURABILITY
Hot Top warning, very safe for users. Precise, microcontroller-based temperature control in both C & F Indicates errors automatically in Display. Interface easy to use. Rugged against spillages. Patented spill away design	PU coated body, made from AL Alloy gives infinite rust/damage free life Can carry 25 KG weight BLAC motor withstands Voltage fluctuations & highly durable

SERVICABILITY & SUPPORT

Made in India…
Tech support and Spares readily supported.
Low down times.
Value for investment

Specifications

Features

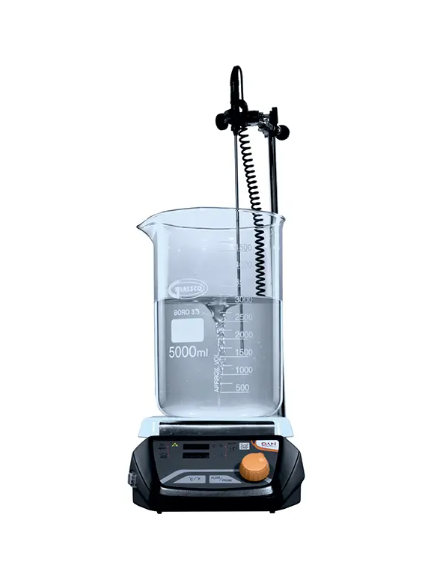

MAGNETIC STIRRER WITH HOTPLATE (GLASS CERAMIC TOP)

Description

Specifications

Features

Description

Specifications

Features

MAGNETIC STIRRER WITH HOTPLATE DIGITAL

Description

Specifications

Features

Description

Specifications

Features

MAGNETIC STIRRER WITH HOTPLATE DIGITAL With pH

Description

Specifications

Features

Description

Specifications

Features

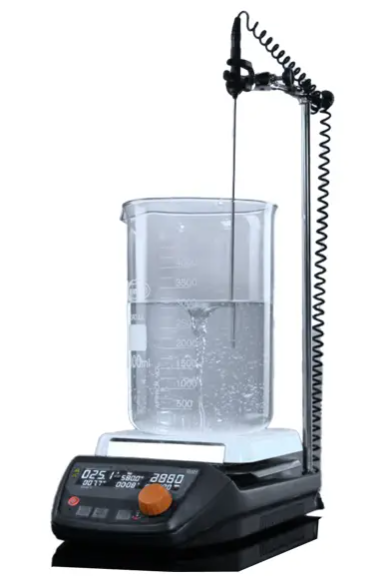

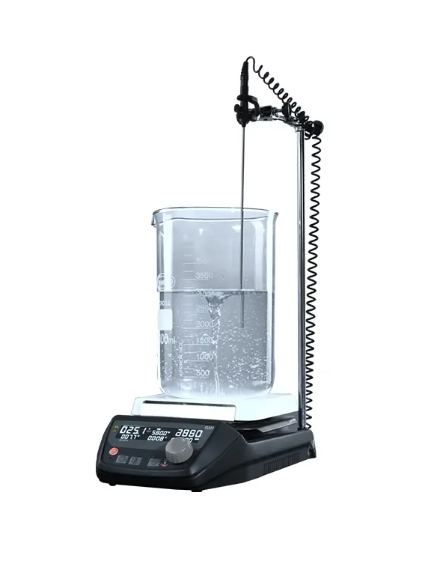

MAGNETIC STIRRER WITH HOTPLATE PRO

Description

Specifications

Features

Description

(WITH LCD DIGITAL DISPLAY)

Powerful 1300 W heater, biggest in class, gives results quickly.
Supplied with Accessories, Probe based thermal control best for direct media temperature control.
7X7 inch Glass Cera top supports large vessels upto 5 Ltr.
Pt1000 for higher accuracy.
Automatic device control mode.
Temperature reach alarms.
Timer/Counter option.
Continous stir on or off option.

RELIABILITY	DURABILITY
Hot Top warning, very safe for users. Precise, microcontroller-based temperature control in both C & F Indicates errors automatically in Display. Interface easy to use. Rugged against spillages. Patented spill away design Setting Lock Possible.	PU coated body, made from AL Alloy gives infinite rust/damage free life. Can carry 25 KG weight. BLAC motor withstands Voltage fluctuations & highly durable

SERVICABILITY & SUPPORT

Made in India.
Tech support and Spares readily supported.
Low down times.
Value for investment.

Specifications

Features

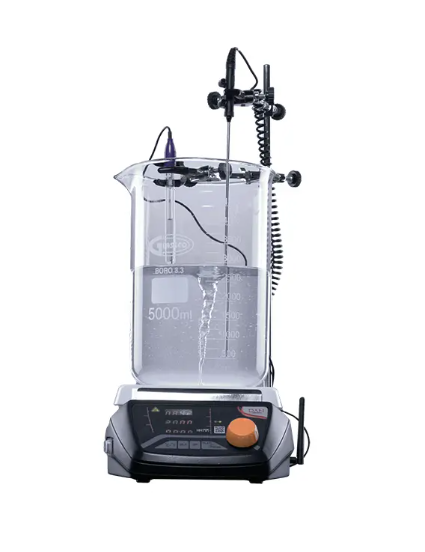

MAGNETIC STIRRER WITH HOTPLATE PRO+

Description

Specifications

Features

Description

(WITH LCD DIGITAL DISPLAY & pH WITH WIFI BASED LAB-CONNECT)

WIFI variant adds value Labs-Connect useful for private non pharma labs.
Powerful 1300 W heater, biggest in class, gives results quickly.
Supplied with Accessories, Probe based thermal control best for direct media temperature control, pH electrode for pH based alarms.
7X7 inch Glass Cera top supports large vessels upto 5 Ltr.
CERA click quick removal of top plate
Lock Key on panel for settings lock
Pt1000 for higher accuracy
Separate PID/Heating mode selection

RELIABILITY	DURABILITY
Hot Top warning, very safe for users. Precise, microcontroller-based temperature control in both C & F Indicates errors automatically in Display. Interface easy to use. Rugged against spillages. Patented spill away design	PU coated body, made from AL Alloy gives infinite rust/damage free life. Can carry 25 KG weight. BLAC motor withstands Voltage fluctuations & highly durable

SERVICABILITY & SUPPORT

Patented Cera Click system for quick service.
Made in India… Tech support and Spares readily supported.
Low down times.
Value for investment

Specifications

Features

MAGNETIC STIRRER-DIGITAL

Description

Specifications

Features

Description

Specifications

Features

Model No.

Watts

Cap(ltr.)

Top Plate

Enquiry

420.DNDG.01

240

50/60

SS 304 Grade

Enquire Now

440.DNDG.01

240

50/60

SS 304 Grade

Enquire Now

450.DNDG.01

240

50/60

SS 304 Grade

Enquire Now

4100.DNDG.01

240

50/60

100

SS 304 Grade

Enquire Now

4200.DNDG.01

240

50/60

200

SS 304 Grade

Enquire Now

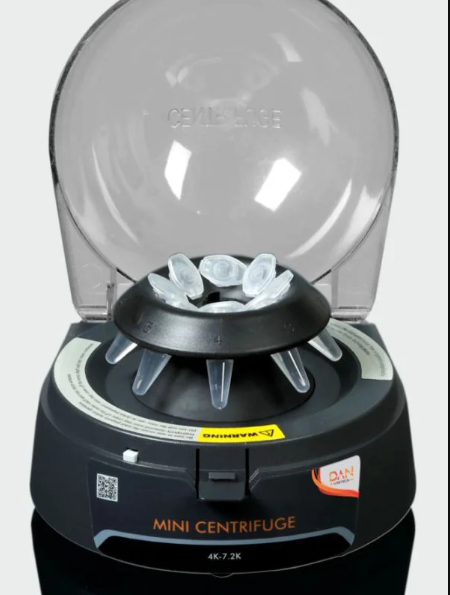

Mini Centrifuge (New)

Description

Specifications

Features

Description

Specifications

Features

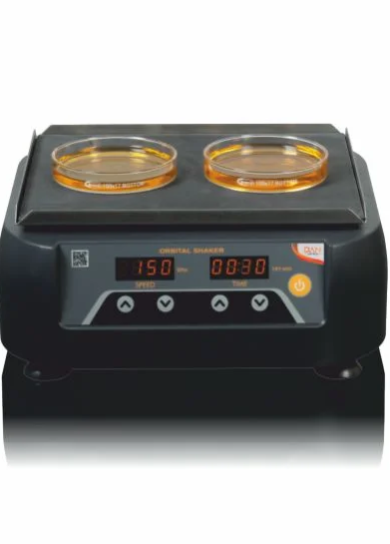

Orbital Shaker

Description

Specifications

Features

Description

Specifications

Features

General Optional Accessory:

Cat. No.	Accessories
3500.303.01	Platform, Flat, Non-Slip Mat
3500.303.02	Platform, Double
3500.303.03	Platform, Universal, with 3 secured bars
3500.303.04	Platform with clamps, 6 Places (250ml)
3500.303.05	Platform with clamps, 12 Places (100ml)
3500.303.06	Platform universal for tubes

Model No.

Shaker comes

Enquiry

3500.EU.01

with platform

230 V

Enquire Now

OVERHEAD STIRRER PRO

Description

Specifications

Features

Description

Specifications

Features

OVERHEAD STIRRER ANALOG

Description

Specifications

Features

Description

Specifications

Features

Roller Mixer (New)

Description

Specifications

Features

Description

Specifications

Features

Shaker Body Material	:	Metal
Speed Range	:	50~300 rpm
Fan Speed	:	2000~3200 rpm
Orbit (Horizontal)	:	20 mm
Dimensions of Body	:	609x770x515 (WxDxH)
Platform Size	:	480x315x80 (WxDxH)
Permissible ambient Temp.	:	20-30°C (Approx.)
Temp. Control Range	:	4-60°C
Power	:	AC 230V,800 W
Timer	:	1min – 99Hrs 59Min
Temp. Control Accuracy	:	£ 0 ± 0.3°C
IP Class	:	30
Can Handle	:	upto 20Kg
Ambient	:	<26°C

Heating Mantle Material	Stainless Steel 304 Grade with Ceramic Coating/Aluminum Alloy with Ceramic Coating
Dimension of heating plate	Ø145 (For 610DNDG) \| Ø150 (For 710DNAG)
Speed range	50-1600 RPM
Maximum stirring bar Length	Can use up to 80 mm bar (at lower speed)
Temperature Range	Ambient to 350°C approx
Dimensions of hot plate body	273x160x102mm
Weight of body	3.0 kgs
Permissible ambient Temperature	5 – 40°C
Permissible relative moisture	80%
Weight of Capacity	20 Ltr
IP Class	22

Model No.	DN.WD.01	DN.WD.02
Output Cap. (approx.)	2 ltrs/hr	4 ltrs/hr
Stage	Double Stage	Double Stage
Cooling water requirement (approx.)	2 ltr/min	2-4 ltr/min
Conductivity uS/cm	0.8-1.0	0.8-1.0
Power Rating (Total)	3.0KW	6.0KW
AC Voltage	220-240VAC	220-240VAC
AC Frequency	50-60Hz	50-60Hz

Description	Automatic Six Place PC Compatible Autosequencing Regular Version Fibre Estimation System
Display	Bright Digital two line Alphanumeric LCD Digital Display of time and temp.
No. of Positions	Six Samples
Sample Size	0.1 to 4 gms (depending on the type of sample)
Temperature Control Range	RT- 500º C (Continuously variable)
Digital Timer	0-99.59 hrs (Settable in hrs, min and seconds), Digital display of set time and actual time (1-5999 minutes) , Modes of operation: heater cut off mode & alarm mode
Temperature Accuracy / Precision	± 0.5° C
Ramp & Hold	Integrated Auto Sequencing programs with 12 desirable sequence ramp / steps of time and temp. domain for each programme
Presets	Selectable Programs(Customizable): Integrated Auto Sequencing Features with 30 intelligent memory programs
Heater Source	Ceramic Infrared Heater
PID Control	Fuzzy logic Microprocessor based PID Controller with Auto tuning facility
Temperature Setting	Feather touch membrane keys
Crucibles	Sintered Silica glass Crucible with P1 Porosity disc (6 Nos.)
Extractor	Marked borosilicate extraction vessel
Preheating Hotplate	Fibra Flow System with self priming pump connected to water suction filter pump.
Power Consumption	2500 Watts.
PC & Printer Connectivity	Direct USB port for PC/Laptop connectivity Intelligent Soware for PC compatibility for 2 way Bidirectional communication

MODEL	DAN-6T-02
Description	Automatic PC Compatible Auto sequencing Regular Six Place Solvent Extraction System
No. of Positions	Six Samples
Sample Size	0.1 to 8 gms (depending on the type of sample)
Temperature Control Range	35°C (Ambient) to 300°C
Digital Timer	Range : 0-99.59 hrs (Settable in hrs, min and seconds), Digital display of set time and actual time (1-5999 minutes) , Modes of operation: heater cut off mode & alarm mode
Temperature Accuracy / Precision	± 0.5° C
Ramp & Hold	Integrated Auto Sequencing programs with 12 desirable sequence ramp / steps of time and temp. domain for each programme.
Presets	Select able Programs(Customizable): Integrated Auto Sequencing Features with 30 intelligent memory programs
Heater Source	Casted Aluminium Alloy Heaters
PID Control	Fuzzy logic Microprocessor based PID Controller with Auto tuning facility.
Temperature Setting	Feather touch membrane keys
PC & Printer Connectivity	Direct USB port for PC/Laptop connectivity Intelligent Software for PC compatibility for 2 way Bidirectional communication
Display	Bright Digital two line Alphanumeric LCD Digital Display of time and temperature
Extraction Thimbles	* Thick Nitrocellulose thimble (f25mm X 80mm) – 1 Box of 25 Nos. * Highly versatile to accommodate 2 sizes of Thimbles. Optional Macro Thimbles of size (33 mm dia x 80mm L) compatible in the system.
Power Consumption	2000 Watts.

Temperature Range	:	5°C to 60°C
Temperature Accuracy	:	± 0.5°C
Dimensions	:	600x600x600 mm
Volume	:	260 ltr.
No. of Tray	:	2
Power Supply	:	220 Volts 50 Hz

Model	DAN.N15CT.01 (TOUCH SCREEN CONTROLLER)
No of samples	15
Tube dimension	36 x 200 mm
Tube capacity	150ml
Tube material	Glass with ground joint
Reflux condenser	Air condenser with ground joint
Reflux condenser dimension	640mm
Heating block	Extruded Aluminium block
Well depth	90mm
Material of construction of housing	MS with powder coated finish
Heater	Casted Aluminium alloy Heater
Heater wattage	2000 W
Temperature controller	PID controller
Process controller	4.3” TFT with touch screen
Temperature range	50 degree to 300 degree
Temperature accuracy	+/- 1%
Temperature sensor	K type thermocouple
Block insulation	Ceramic wool
No of Programs	5 program
No of steps	5 steps
Type of program	Time and Temperature
Feature touch membrane key pad	Power and Heater
Over voltage protection	By circuit breaker
Electrical requirement	230V/50Hz/10A
Unit dimension	56 x 14 x 36 Inches (L x B x H)

Range	: 0-1999 mg/Kg(mg/l)
Resolution	: 1mg/kg(mg/l)
Accuracy	: ± 0.2 F.S.
Operating Temp	: 5-45 °C (41-113°F) /ATC
Calibration	: Factory calibrated
Power supply	: DC 9V (9V580/6F22Ni-MH rechargeable battery)
Display	: LCD with backlight
Dimension	: Æ50.5 x 250 mm
Probe length	: 140mm
Features	: Auto switch off in about 5 minutes
Weight	: 390 Gms (Approx)
IP Class	: 64

Type of movement	Orbital
Orbit/Shaking Stroke	3 mm
Permissible orbit weight (incl. attachment)	0.5 kg
Permissible ON time	100%
Speed min (adjustable)	200 rpm
Speed range	200 – 3000 rpm
Speed display	LED
Speed deviation	1%
Timer	yes
Timer display	LED
Time setting min.	1 s
Time setting max.	100 Hrs
Operating mode	Timer and Continuous Operation
Touch/shot function	yes
Working with microtiter plates	yes
Number of microtiter plates	1
Dimension	150x207x111mm (WxDxH)
Permissible ambient temperature	5 – 40 °C
Permissible relative humidity	80%
Protection class according to DIN EN 60529	IP 21
Adaptors	Available
Voltage	100 – 240 V
Frequency	50/60 Hz
Power input	10 W
DC Voltage	24 V
Weight	3.8 Kgs
IP Class	21

Model No.	6100.DNEU	6050.DNEU
T-On Time	: 5 – 999 Sec	: 5 – 999 Sec
T-Off Time	: 0, 5 – 999 Sec	: 0, 5 – 999 Sec
Speed Range	: 50 – 3000RPM	: 50-1500RPM
Wifi Control	: NO	: NO
Temperature Measurement	: NO	: NO
Max. Viscosity	: 6000 mPass	: 10000 mPass
Max. Torque	: 65N.CM	: 80N.CM
Time Range	: 1min – 99:59min	: 1min – 99:59min
Max. Stir Capacity (H2O)	: 10-40L	: 40-60L
Stirring Shaft Extension Feature	: Yes	: Yes
Stirring Modes	: Yes	: Yes
Motor Type	: BLDC	: BLDC
Operating Voltage	: 24 VDC	: 24 VDC
Supply Voltage	: 100 – 240Vac, 50/60Hz	: 100 – 240Vac, 50/60Hz
Power	: 130	: 130
Dimension	: 90x240x220mm	: 90x240x220mm
Net Weight	: 12 Kg	: 12 kg
Also Known as	: 6050.EU.01, 6100.DNEU.01

Body Material	: Aluminium & ABS
Display Window	: RPM & Time
Speed Range	: 50 – 2200RPM
Speed Control Accuracy	: ±3 RPM
Speed Display Accuracy	: ±1 RPM
Max. Viscosity	: 50000 mPas
Max. Torque	: 60NCM
Time Range	: 30∼999Min
Max. Stir Capacity (H2O)	: 40L
Drill Chuck Dia Range	: 0.5∼10mm
Dimension (WxDxH)	: 83 x 220 x 180mm
Also Known as	: 6050T.EU.01, 6100T.EU.01

Range	: pH: 3.0-14.0 pH
Resolution	: 0.10 pH
Accuracy	: ± 0.2 pH(3.0-12.0 pH )
Operating Temp	: 5-45 °C
Calibration	: 1 point (Factory calibrated -No more calibration)
Power supply	: DC 9V(L1022 battery)
Display	: LCD
Dimension	: Æ50.5 x 250 mm
Probe length	: 140mm
Features	: Automatic detection of data and lock to keep,automatic switch to OFF in 5 minutes (or manual shutdown).
Weight	: 110 Gms (Approx)
IP Class	: 64

Range	: 0-1999 EC(mS/cm);
Resolution	: 0.10 EC(mS/cm)
Accuracy	: ± 0.1EC (00-100 EC)
Operating Temp	: 5-45°C (41 – 113°FVATC
Calibration	: 1 point (6.7EC /Factory calibrated -No more calibration)
Power supply	: DC 9V(L1022 battery)
Display	: LCD with illumination
Dimension	: Æ50.5 x 250 mm
Probe length	: 140mm
Features	: Automatic switch-off function: After about 5 minutes without pushing buttons, the meter will be switched off automatically (or manual shutdown)
Weight	: 110 Gms (Approx)
IP Class	: 64

Voltage	: 230 VAC
Frequency	: 50 Hz
Power consumption	: ~1500 W
Power consumption	: 7 A
Weight (without glass)	: approx. 15 kg
Position	: 4
MOC Adapters	: Aluminum Alloy
Flask Capacity	: 250ml
Extraction Capacity	: 500ml
Condenser	: 100ml
Plate/Adaptor Temp.	: upto 400°C
Dimensions in cm (W x D x H) (without glass)	: 504x274x765 mm
IP Class	: 20

Heating Mantle Body	: Metallic, SS & Aluminium construction
Heating Mantle Material	: Glass Fibre Yarn
Mantle Capacity	: To hold standard Round Bottom Flasks upto 5000ml
Temperature Range	: Approx. 400°C
Control Accuracy	: 10%
Heating Control	: Microprocessor based PID
Dimension	: 168x240x182 (WxDxH)
Permissible Ambient Temperature	: 5-40° C
Permissible relative moisture	: 80%
IP Class	: 10
Also Known as	: 1222.EU.01, 1222.EU.02, 1222.EU.03 , 1222.EU.04, 1222.EU.05, 1222.EU.06, 1222.EU.07, 1222.EU.08

Heating Mantle Body	: Made of SS & Aluminium
Heating Mantle Material	: Glass Fibre Yarn
Mantle Capacity	: To hold standard Round Bottom Flasks upto 5000ml
Temperature Range	: Approx. 400?C
Control Accuracy	: 10%
Heating Control	: Digital
Dimension	: 168x240x182 (WxDxH)
Permissible Ambient Temperature	: 5-40? C
Permissible relative moisture	: 80%
IP Class	: 10
Also Known as	: 1223.EU.01, 1223.EU.02, 1223.EU.03 , 1223.EU.04, 1223.EU.05, 1223.EU.06, 1223.EU.08,

Heating Mantle Body	: Metallic SS & Aluminium
Heating Mantle Material	: Glass Fibre Yarn
Mantle Capacity	: To hold standard Round Bottom Flasks upto 5000ml
Heating Control	: Microprocessor based PID
Stir Control	: Microprocessor based
Temperature Range	: Approx. 400?C
Control Accuracy	: 10%
Weight	: 2.5Kg
Variable Speed Range	: ~800 RPM
Permissible Ambient Temperature	: 5-40? C
Permissible relative moisture	: 80%
IP Class	: 10
Also Known as	: 1221.EU.01, 1221.EU.02, 1221.EU.03 , 1221.EU.04, 1221.EU.05, 1221.EU.06, 1221.EU.08

No of Shelves	:	2
Volume Capacity	:	95 lit
Dimension	:	18 x 18 x 18 inch
Temperature Range	:	50ºC to 250ºC
MOC (Outer)	:	Powder Coated Electro Galvanized Steel Sheet
MOC (Inner)	:	Galvanized Steel Sheet OR Stainless Steel Sheet (Option)
Temp. controller	:	Hydraulic type capillary thermostat
Temp. Accuracy	:	±1ºc
Temp. Display	:	Thru prismatic thermometer
Power Supply	:	220/230V AC, 50/60Hz

Material of construction	Outer MS with powder coated finish and Inner stainless steel
Capacity	91 lit
Dual Mode Operation (2 in 1)	Hot air Oven Mode or Incubator Mode
Inner dimension	450 x 450 x 450 mm
Outer dimension	560 x 610 x 680mm
Process controller	4.3” TFT Touch screen controller
Display	Feather touch membrane key pad with touch screen. (Power, Oven, Incubator, heater)
Temperature controller	HMI
Temperature Range	5 degree above ambient to 200 degree
Temperature accuracy	At 120Degree-+/- 1%, At 37 Degree- +/- 0.1 Degree
Temperature sensor	PT 100
Number of program	5
Number of steps	5
Programmable for	Temperature and time
Heater	Strip Heater
Heater wattage	Oven-1625 W and Incubator-325 W
No of Trays	2
Chamber insulation	Ceramic wool
Over temperature protection	Using thermostat
Electrical requirement	230v/50Hz/10A

Heating Mantle Material	: Stainless Steel 304 Grade/ Ceramic Coated
Dimension of the heating plate	: 150 Ø
Temperature Range	: Ambient to 350°C approx
Dimensions of the hot plate body	: 273x160x102mm
Weight of body	: 2.5 kgs
Permissible Ambient Temperature	: 5- 40 °C
Permissible relative moisture	: 80%
IP Class	: 22
Also Known as	: 730.AG.01

Size	:	4’x2’x2ʼ
Size of Hepa	:	4’x2’x6:-ʼ
No. of Hepa	:	1 Nos
Cleaness	:	Class 100
Velocity	:	90 FPM +/-20
Hepa Filter	:	99.99% For particles >0.3 μm
PrefIlter	:	85 %efficiency for particles >0.5 μm (Washable)
Particle Count	:	Better than US Fed Std 209B Class10 and VDI 2083 Class 3
Cabinet	:	Laminated High Quality Wooden Board /PCRC Sheet Powder Coated/Stainless Steel SS 304(optional 316 grade)
Work Table	:	304 Stainless Steel (optional 316 grade
Airflow Speed	:	Control Speed Controller (Three Step Speed Controller)
Blower	:	High efficient centrifugal type with lifetime light
Light	:	High intensity, low wattage >800 luxlubricated bearings
Noise Level	:	55 dBA
Standard Accessories	:	Air/gas cock and mains power socket (16A)
Power Supply	:	220-230 V, 50 Hz.

Operating Voltage	: 230V AC, 50 Hz
Power	: 30 Watts ± 10%
Weight	: Approx 3 Kgs
Dimensions of Top plate	: Diameter 150mm
Over all dimensions	: 273X160X102mm
Fuse internal	: 1 Amps
Stirring Capacity	: 10 L
Also Known as	: 720.AG.01

Heang Mantle Material	: Alluminium Alloy with ceramic coating
Dimension of heating plate	: Ø145mm
Three display windows for	: Temperature, RPM and time
Speed range	: 50-1500 RPM
Maximum srring bar Length	: Can use upto 80 mm bar (at lower speed)
Temperature Range	: Ambient to 350°C approx
Adjustable safety cut off	: 50-400°C
Control accuracy of PT100	: ± 1K
Dimensions of hot plate body	: 273x160x102mm
Weight of body	: 3.3 kgs
Permissible ambient Temperature	: 5- 40 °C
Permissible relave moisture	: 80%
RS 232 interface	: Yes (for programming)
IP Class	: 32
Also Known as	: 610.DG.01, 610.DG.02

Heating Plate Material	Glass Ceramic Top Plate
Dimension of Heating Plate	180 mm x 180 mm
Display Windows	LCD WHITE
Speed Range	~2000 RPM
Heat Output	1300 W
Temperature Range	Ambient to 550°C
Adjustable safety cut off	580°C
Control accuracy of sensor	± 1K
Weight of body	5.2 kgs
Permissible ambient Temp.	5 – 40°C
Permissible relative moisture	80%
Dimensions of Hot Plate Body	378x220x103
IP Class	21

Heating Plate Material	Aluminium Alloy with Ceramic Coating
Dimension of Heating Plate	Ø 145/Ø 135 mm
Three display windows for	Temp., RPM and Time
Speed Range	50-1500 RPM
Maximum Stirring bar Length	upto 80mm bar (at lower speed)
Temperature Range	Ambient to 350°C
Adjustable safety cut off	50-400°C
Control accuracy of PT 100	± 1K
Weight of body	3.1 kgs
Dimension of Hot Plate	273x160x102mm
Permissible ambient Temp.	5-40°C
Permissible relative moisture	80%
RS 232 Interface	Yes (For Programming)
Weight of Capacity	20 Ltr
IP Class	32

Analytical Laboratory Benchtop Instruments

15-Position Digital Magnetic Stirrer (New)

3 Station Magnetic Stirrer With Hotplate

3-In-1 Orbital Incubator Shaker With Wifi Based

5-POSITION DIGITAL MAGNETIC STIRRER WITH HEATING (Analog)

5-POSITION DIGITAL MAGNETIC STIRRER WITH HEATING (Digital)

ALL GLASS WATER DISTILLATION (AUTOMATIC)

Analogue Magnetic Stirrer With Hotplate

Autoclave Portable 20 Litre

Autoclave Vertical 50 Litre

Automatic Fibre Estimation System

Automatic Fibre Estimation System

B.O.D Incubator

COD Digestion System

Digital Flat Stirrer

DIGITAL INSTANT N-P-K TESTER

DIGITAL MINI SHAKER PRO/VORTEXER

Digital Overhead Stirrer

Digital Overhead Stirrer (With Wi-Fi)

DIGITAL pH TESTER

DIGITAL SOIL EC TESTER

DRY BLOCK HEATER

FAT DETERMINATION APPARATUS

Heating Mantle – Digital

Heating Mantle Combined Unit

Heating Mantle Combined Unit with Stirrer

Heating Mantle Combined Unit with Stirrer

Heating Mantle with Stirrer

Heating Mantle with Stirrer – BlackDiamond™ PRO

Heating Mantle with Stirrer – Digital

Hot Air Oven

Hot Air Oven Cum Incubator

Hot Air Oven Cum Incubator

Laminar Air Flow Horizontal

Magnetic Stirrer Analog, Stainless Steel Top

Magnetic Stirrer Analog, STAINLESS STEEL TOP Octagon Base

Magnetic Stirrer with Analog Hotplate, Stainless Steel Top

Magnetic Stirrer with Digital Hotplate

Magnetic Stirrer with Digital Hotplate

MAGNETIC STIRRER WITH HOTPLATE

MAGNETIC STIRRER WITH HOTPLATE (GLASS CERAMIC TOP)

Technical Specifications:

MAGNETIC STIRRER WITH HOTPLATE DIGITAL

MAGNETIC STIRRER WITH HOTPLATE DIGITAL With pH

( WITH LABS-CONNECT™ )

CeraClick-System™

MAGNETIC STIRRER WITH HOTPLATE PRO

MAGNETIC STIRRER WITH HOTPLATE PRO+

MAGNETIC STIRRER-DIGITAL

Mini Centrifuge (New)

Orbital Shaker

OVERHEAD STIRRER PRO

OVERHEAD STIRRER ANALOG

Roller Mixer (New)

Heating Plate material	:	Glass Ceramic white square plate
Dimension of heating plate	:	180 mm x 180 mm
Two display windows for	:	Temperature and RPM
Speed Range	:	~2000 RPM
Heat Output	:	1300 W
Temperature range	:	Ambient to 550°
Adjustable safety cut off	:	580°C
Control accuracy of sensor	:	± 1k
Weight of body	:	5.2 kgs
Permissible ambient temperature	:	5 – 40°C
Permissible relative moisture	:	80%
USB Port	:	Yes
Frequency	:	50/60 Hz
Voltage	:	230/115 Volts
Dimensions of hot plate body	:	378x220x103
IP Class	:	21

Speed Range	: 100 – 2000 rpm
Timer Range	: 0:01 to 99:59 (HH:MM)
Stirring Power Mode	: 50%,75%,100%
Acceleration Mode	: yes
Timer bypass	: Yes
Display type	: Led segment
Stirring power (max.)	: 50W
Operating voltage	: 24VDC
Power supply	: 100-240 VAC / 50-60 Hz / 2A
Dimensions (WxDxH)	: 370x415x115mm
Weight Approx.	: 11Kg
Material Housing	: Stainless steel-304
Permitted operation conditions	: 5 to 40 °C (at 80% humidity)
Protection category	: IP20
Also Known as	: 420.DG.01, 440.DG.01, 450.DG.01, 4100.DG.01, 4200.DG.01

Body Material	Main Frame: ABS, Cover: PC, Adapter: PP, Absorber: NBR, Roller: ABS
Speed Range	4000 & 7200 RPM (±20%)
RCF	810~3260xg
Rotor types	Rotor, 2ml x 8 and 0.2ml x 8, 0.2ml x 8 tubes strip x 2 rows
Max. Capacity	2ml x 8
Dimension (WxDxH)	174x157x130mm
Speed Control type	Constant speed
Driving Speed	Direct drive
Brake System	Dynamic
Acceleration Time	90% speed in 5 seconds
Deceleration Time	Cover closed within 15 seconds, cover opens within 6 seconds
IP Class	54

Shaker Body Material	: Plastic
Speed Range	: 50-300RPM
Orbit	: 20mm
Dimensions of Body	: 284 x 264 x 108 mm
Max. Loading Capacity	: 2kgs
Permissible ambient Temp.	: 5-45°C
Voltage	: AC 100-230V
Timing Range	: 1min – 99Hrs 59Min
Also Known as	: 3500.EU.01

Model No.	6025.DNEU.01
Speed Range	0-3000RPM
Max. Torque	65N.cm
Max. Viscosity	6000 mPass
Max. Stirring	40L
Stirring Shaft Extension Feature	Yes
Motor Type	BLDC
Operating Voltage	24VDC
Supply Voltage	100 – 240Vac, 50/60Hz
Power	130
Dimension	90x240x220mm
Net Weight	11.2 kg
IP Class	54

Model No.	6050B.DNEU	6100B.DNEU
Speed Range	50-1500RPM	50-3000RPM
Max. Torque	80N.cm	65N.cm
Max. Viscosity	10000 mPass	6000 mPass
Max. Stirring	60L	40L
Timing Range	1min – 99:59min	1min – 99:59min
T-On Time	5 – 999 Sec	5 – 999 Sec
T-Off Time	0, 5 – 999 Sec	0, 5 – 999 Sec
Stirring Shaft Extension Feature	Yes	Yes
Stirring Modes	Yes	Yes
Motor Type	BLDC	BLDC
Operating Voltage	24VDC	24VDC
Supply Voltage	100 – 240Vac, 50/60Hz	100 – 240Vac, 50/60Hz
Power	130	130
Dimension	90x240x220mm	90x240x220mm
Net Weight	11.4kg	11.4kg
IP Class	54	54

Mixer Body Material	Plastic
Operation Mode	Rolling & Swinging
Amplitude	24mm
Roller Quantity	7
Speed Range	10-80RPM
Speed Unit	1RPM
Roller Length	280mm
Motor	brushless DC motor
Dimension (DxWxH)	500 x 280 x 120mm
Max. Capacity	4kgs
Weight of Body	3.1 kg
Voltage	AC100-240 50-60Hz
Power	20W
